Engine Controls

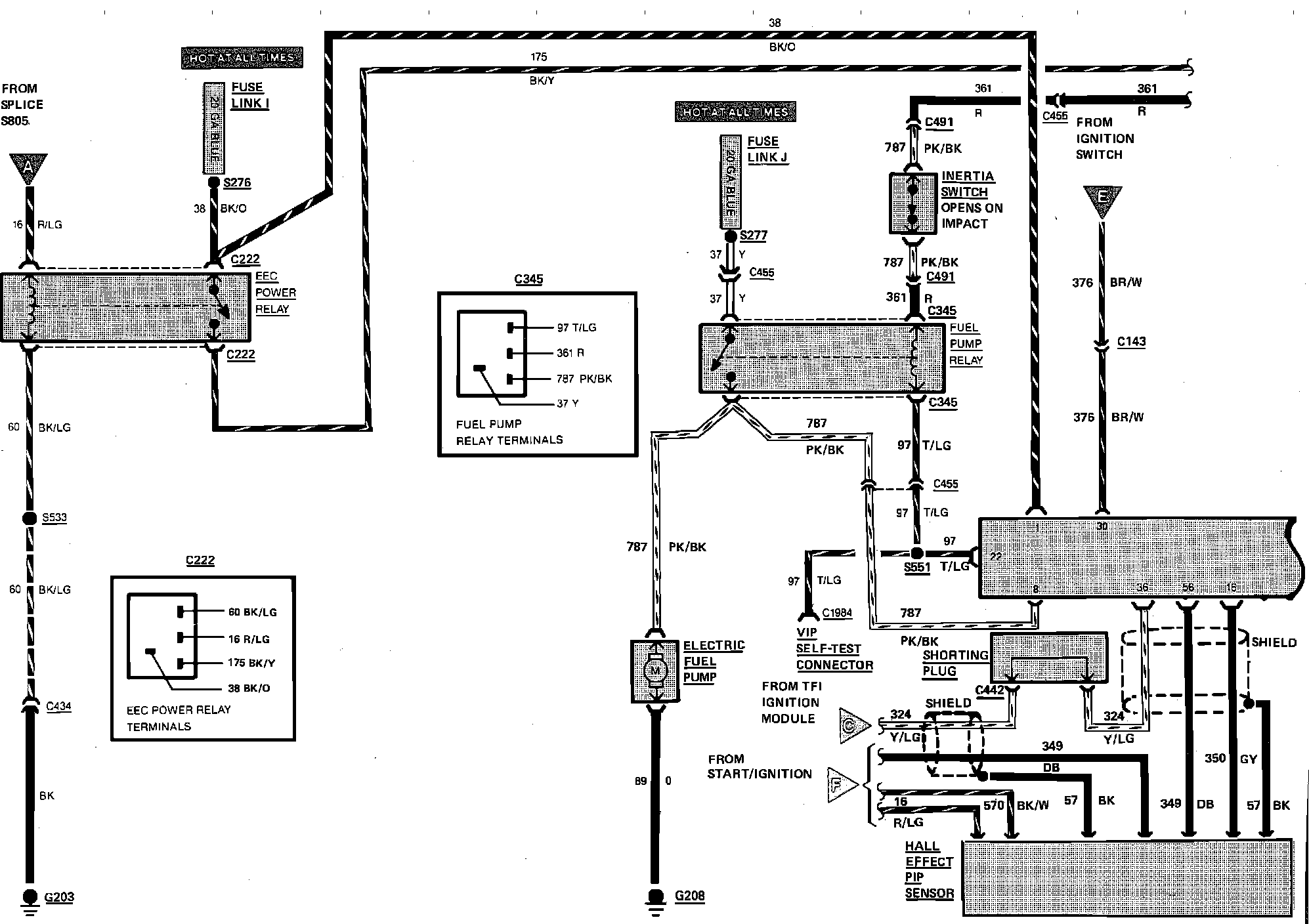

Electronic Engine Control Wiring Circuit (Part 1 of 3):

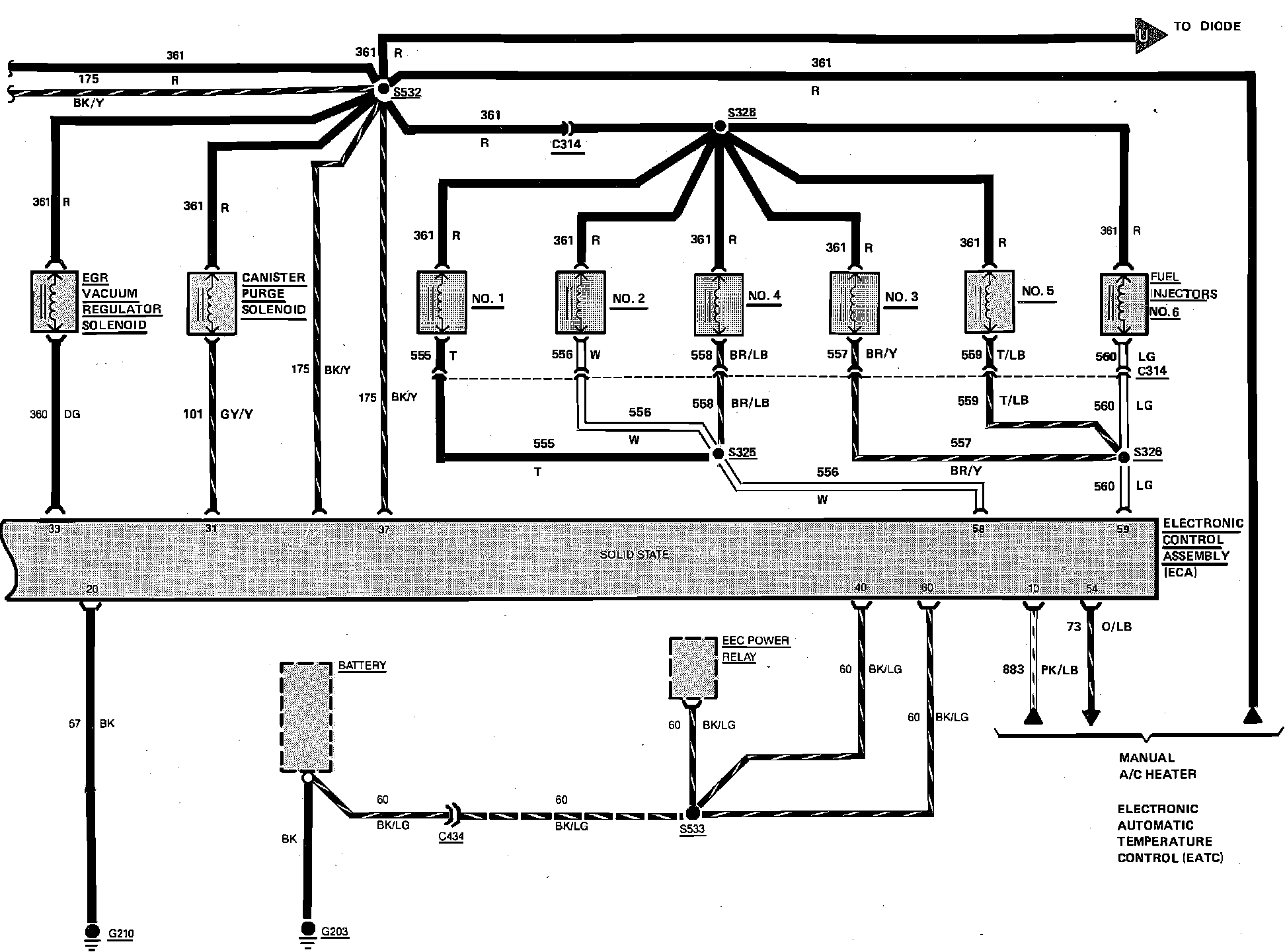

Electronic Engine Control Wiring Circuit (Part 2 of 3):

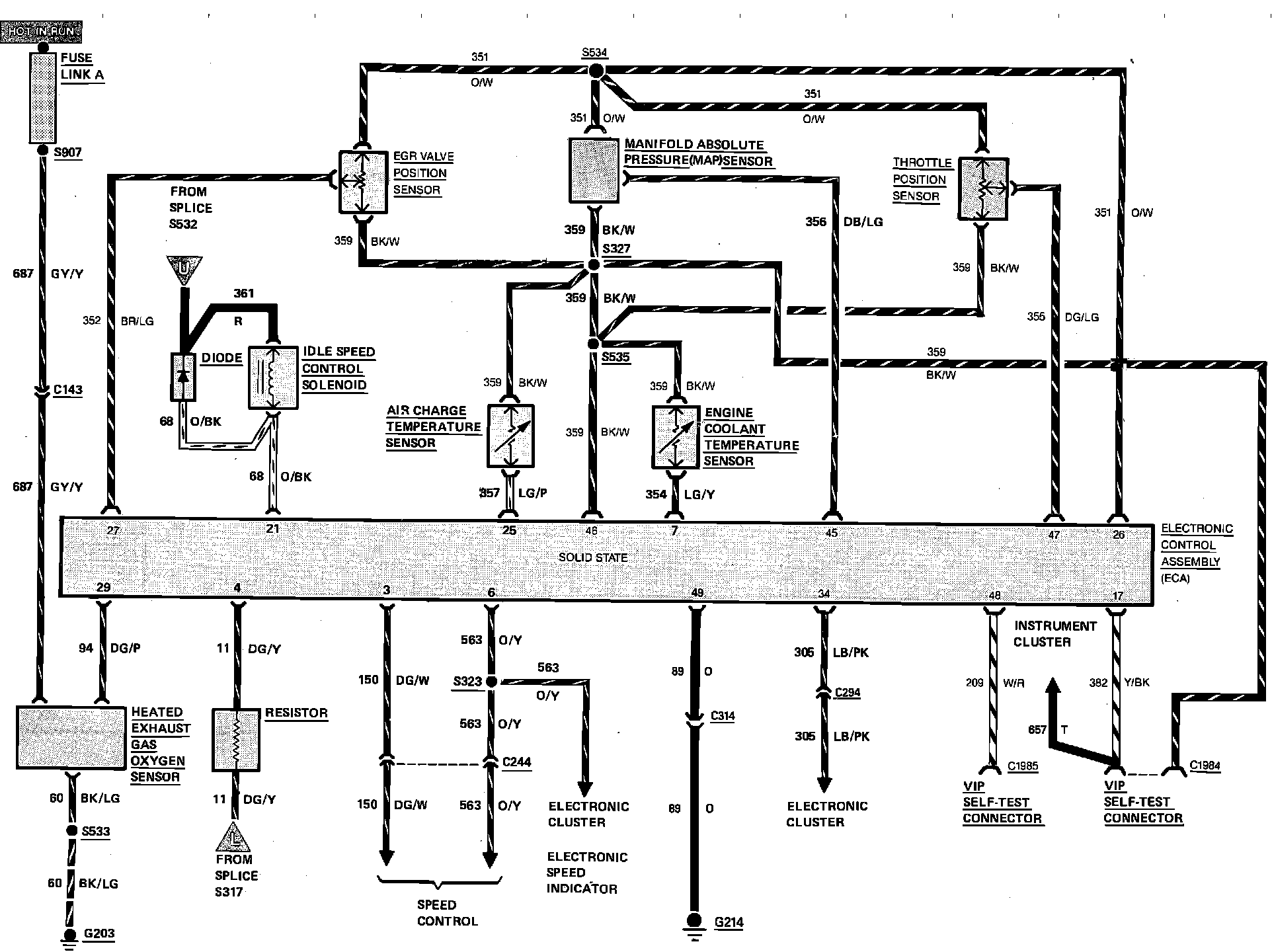

Electronic Engine Control Wiring Circuit (Part 3 of 3):
