W/Prem/Sound Radio/Diag Warn/PWR Windows/Illum. Entry

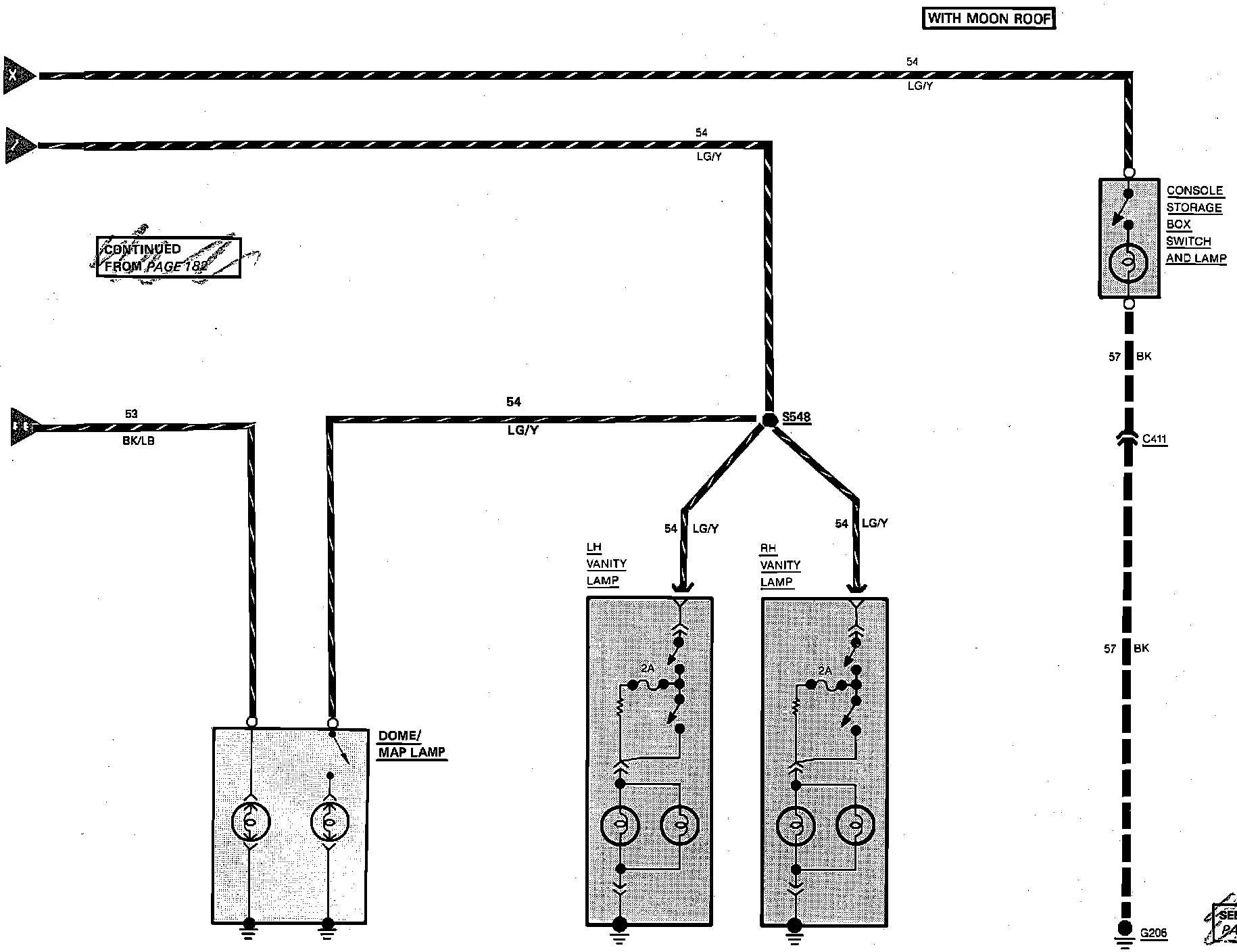

Courtesy Lamps Wiring Circuit. With Premium Sound Radio, Diagnostic Warning, Power Windows & Illuminated Entry (Part 1 of 3):

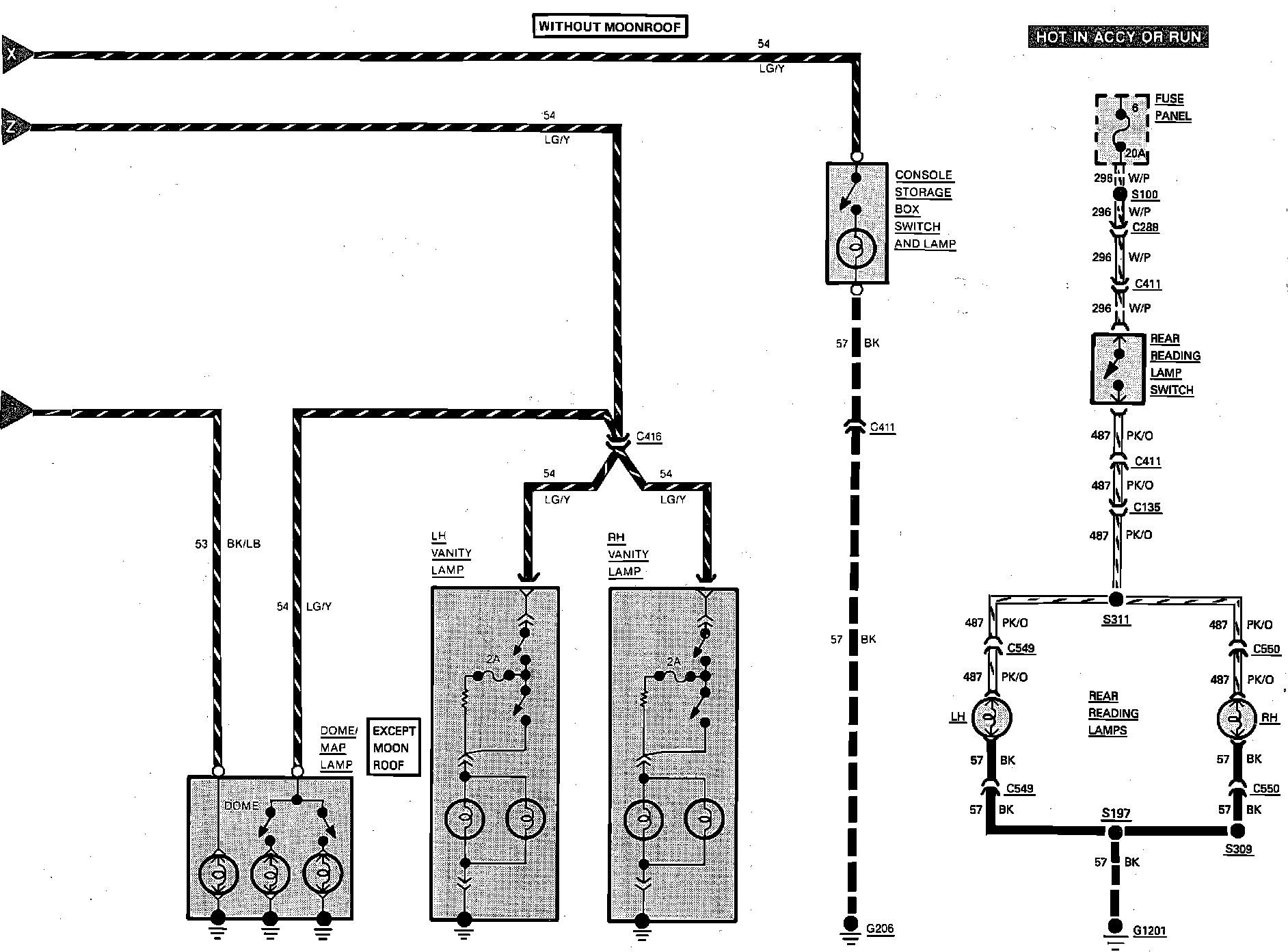

Courtesy Lamps Wiring Circuit. With Premium Sound Radio, Diagnostic Warning, Power Windows & Illuminated Entry (Part 2 of 3):

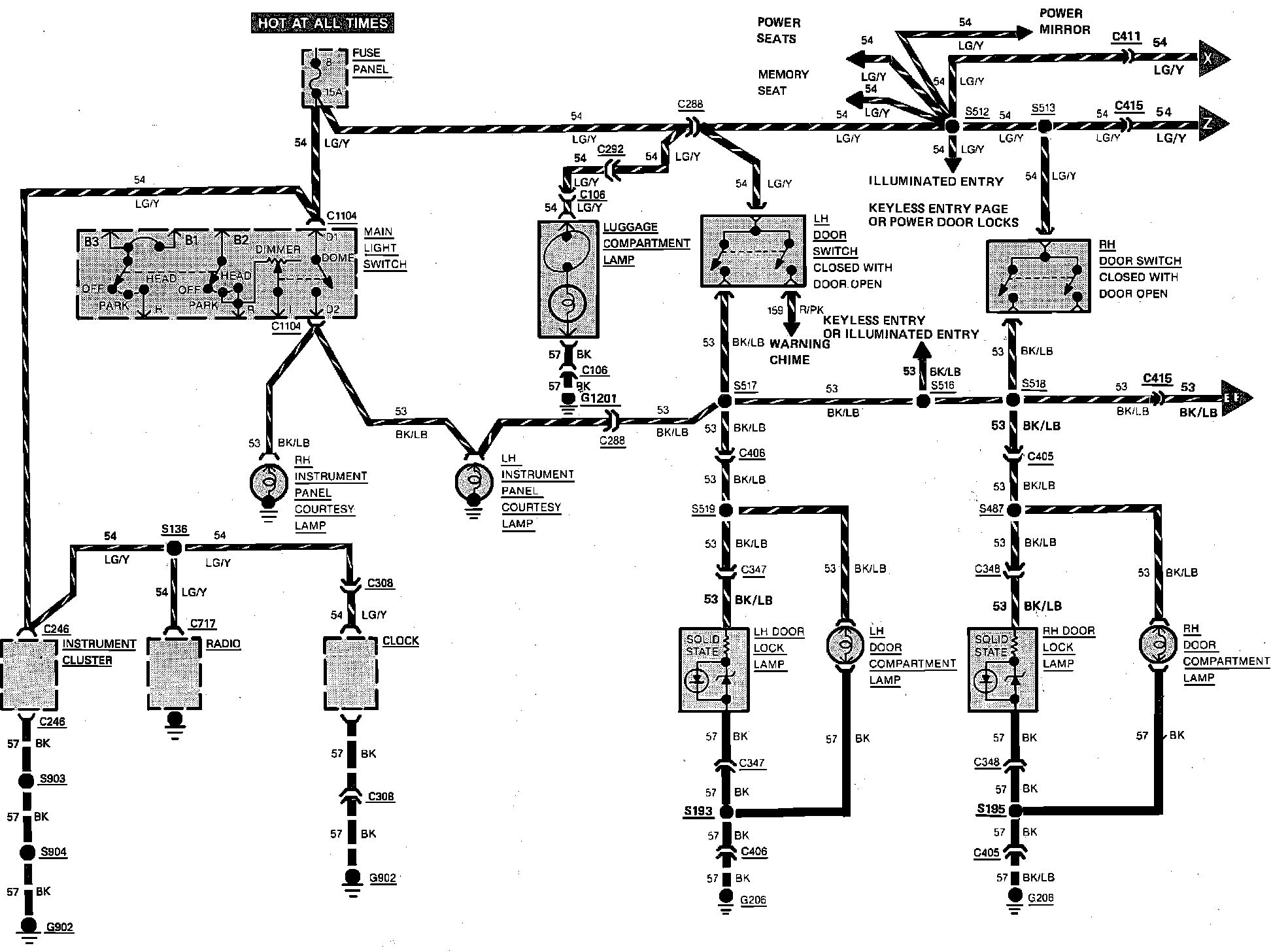

Courtesy Lamps Wiring Circuit. With Premium Sound Radio, Diagnostic Warning, Power Windows & Illuminated Entry (Part 3 of 3):
