Home >> Mercury >> 1988 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Warning Indicators

Warning Indicators

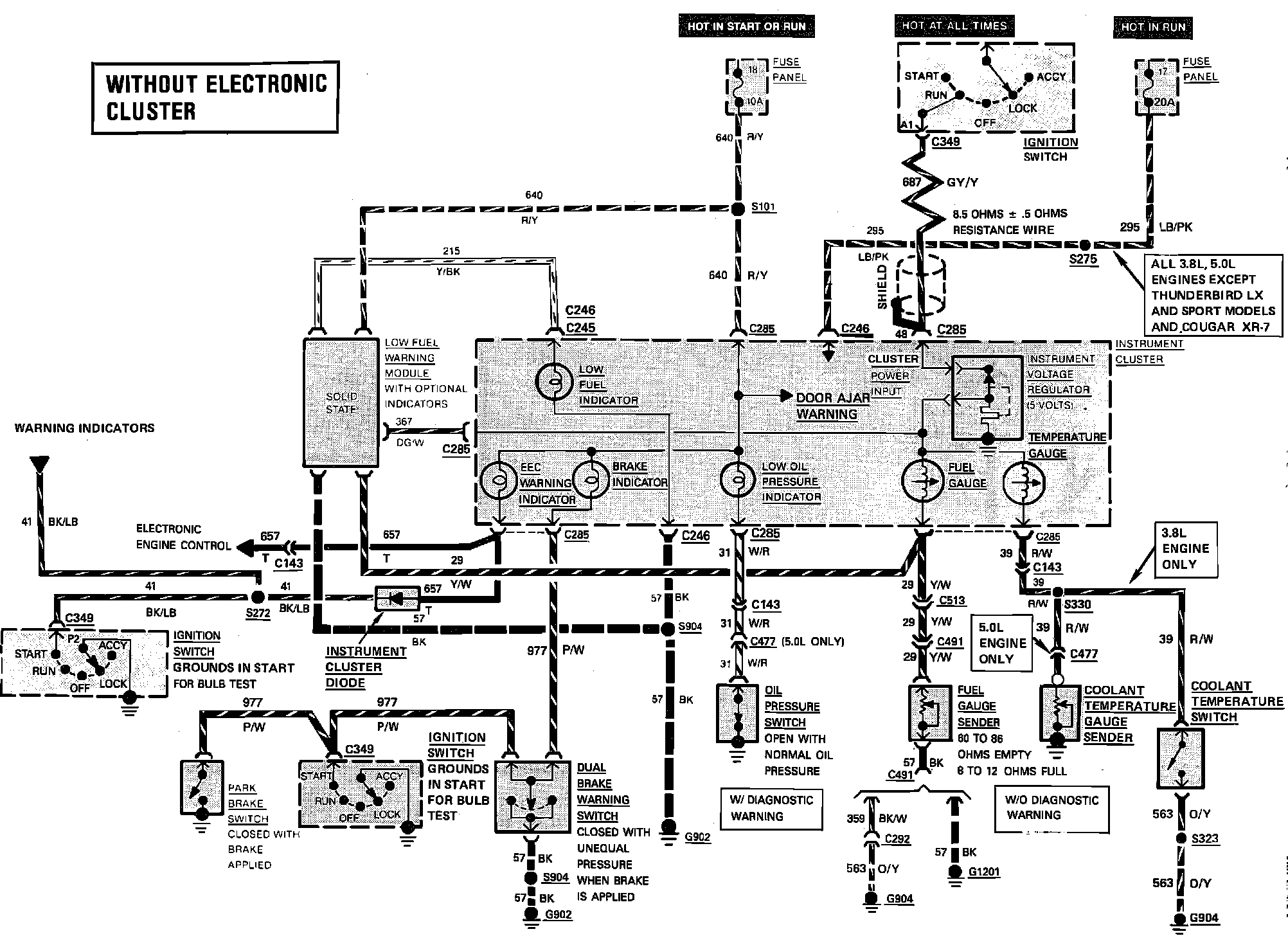

Brake, Ecc, Low Fuel, Oil & Temperature Guage & Indicator Wiring Circuit.:
