Home >> Mercury >> 1987 >> Topaz FWD L4-122 2.0L DSL >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Testing and Inspection >> Component Tests and General Diagnostics >> Shake >> Test A6-A10

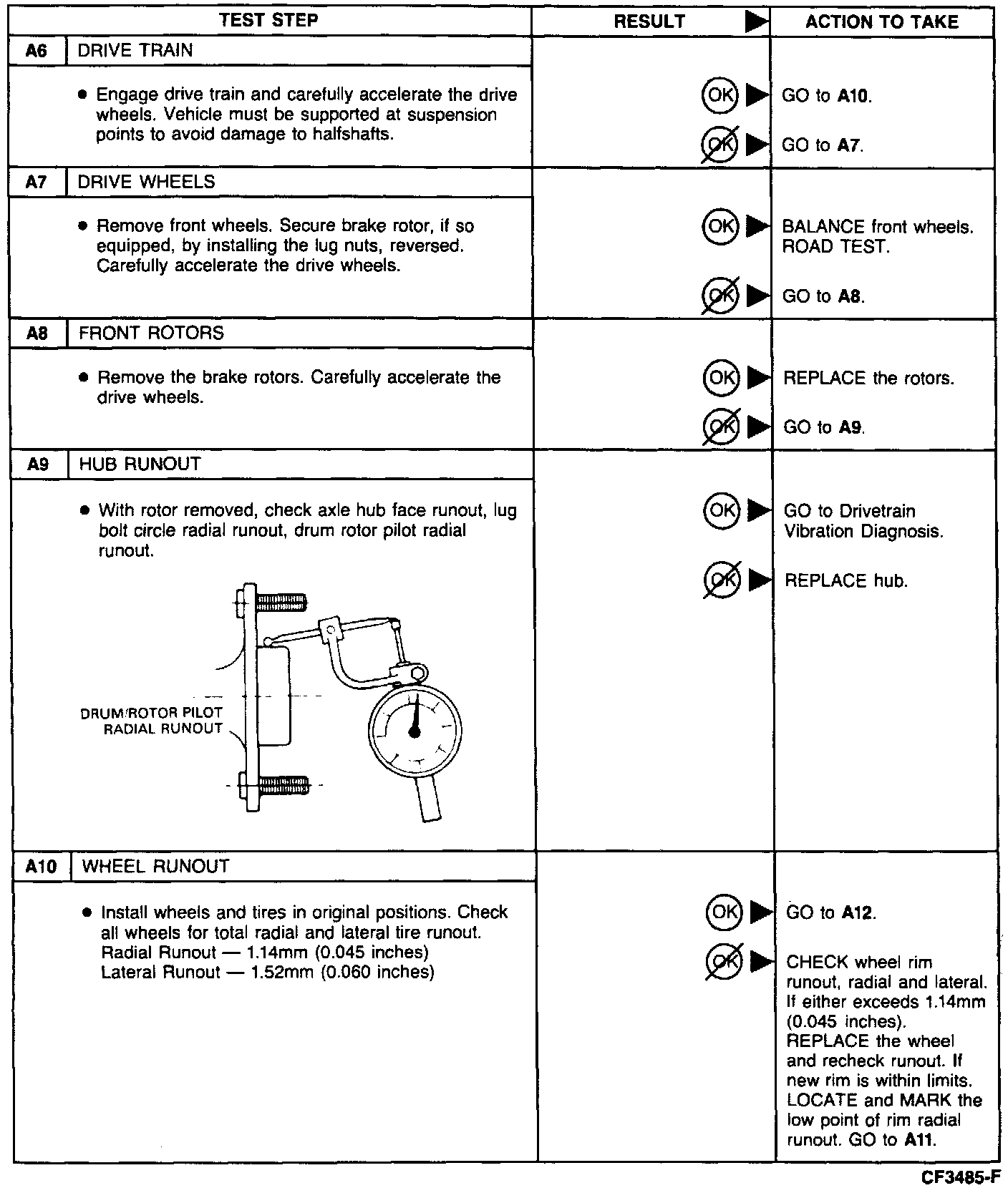

Test A6-A10

High Speed Shake Diagnosis-Continued:
