Home >> Mercury >> 1987 >> Topaz FWD L4-122 2.0L DSL >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Diagrams >> Electrical Diagrams >> With Intermittent Wipers

With Intermittent Wipers

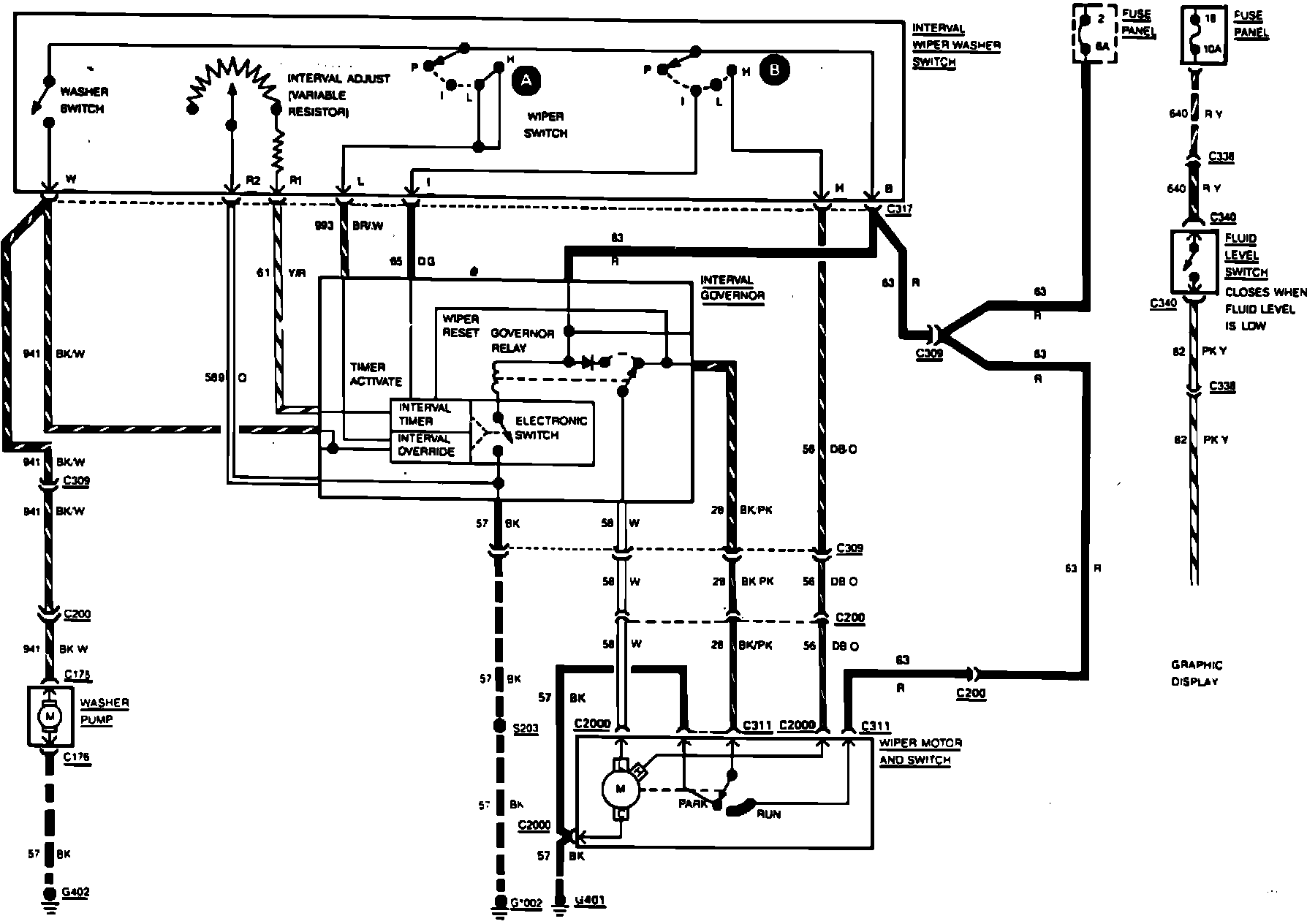

Fig. 49 Windshield Wiper & Washer Wiring Circuit. With Interval:
