Home >> Mercury >> 1987 >> Topaz AWD L4-140 2.3L HSC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Technical Service Bulletins >> All Technical Service Bulletins >> Fuel Control Pinpoint Test - Manual Revision >> Fuel Control - 1.9L CFI & 2.3L/2.5L (HSC) CFI

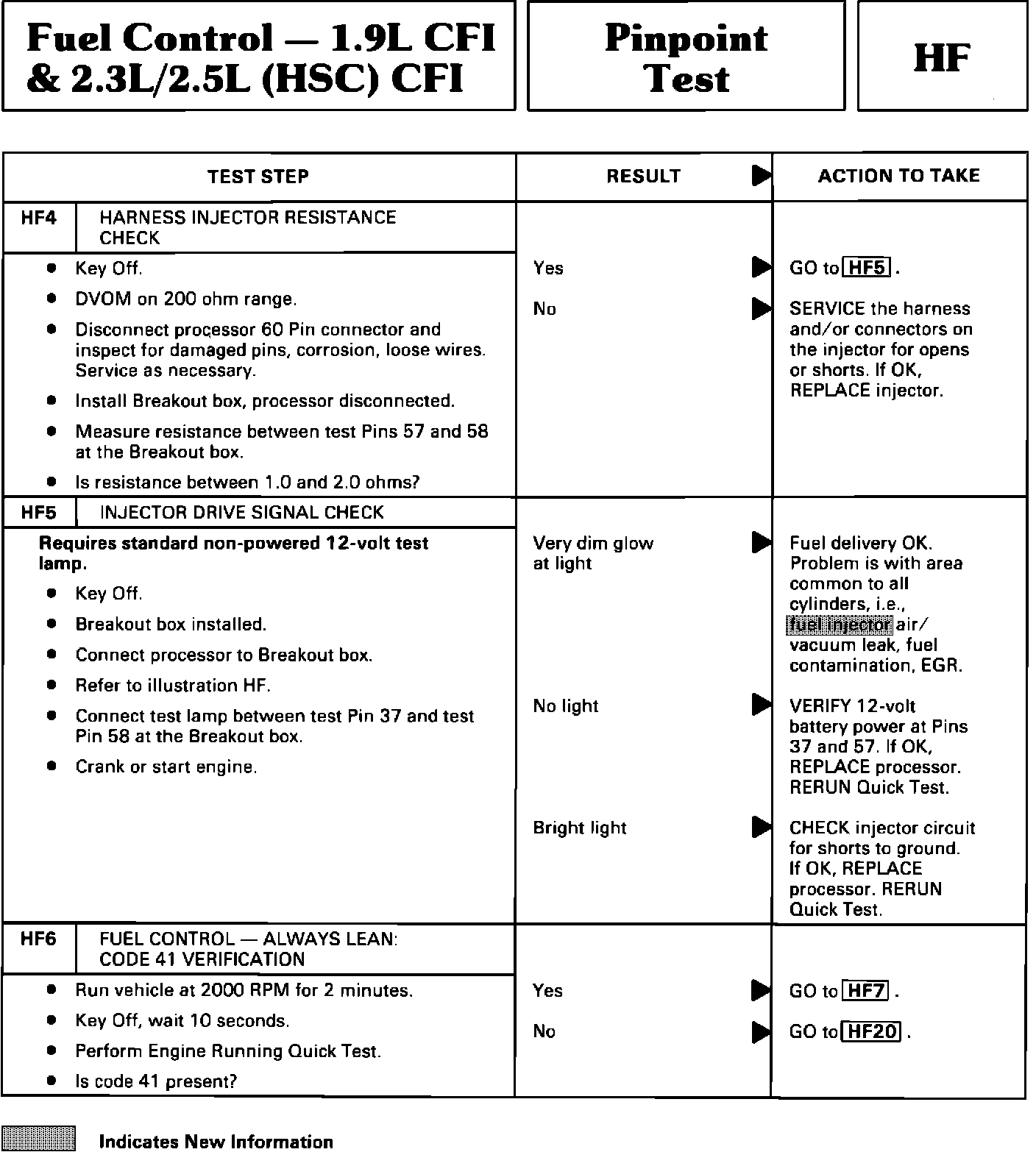

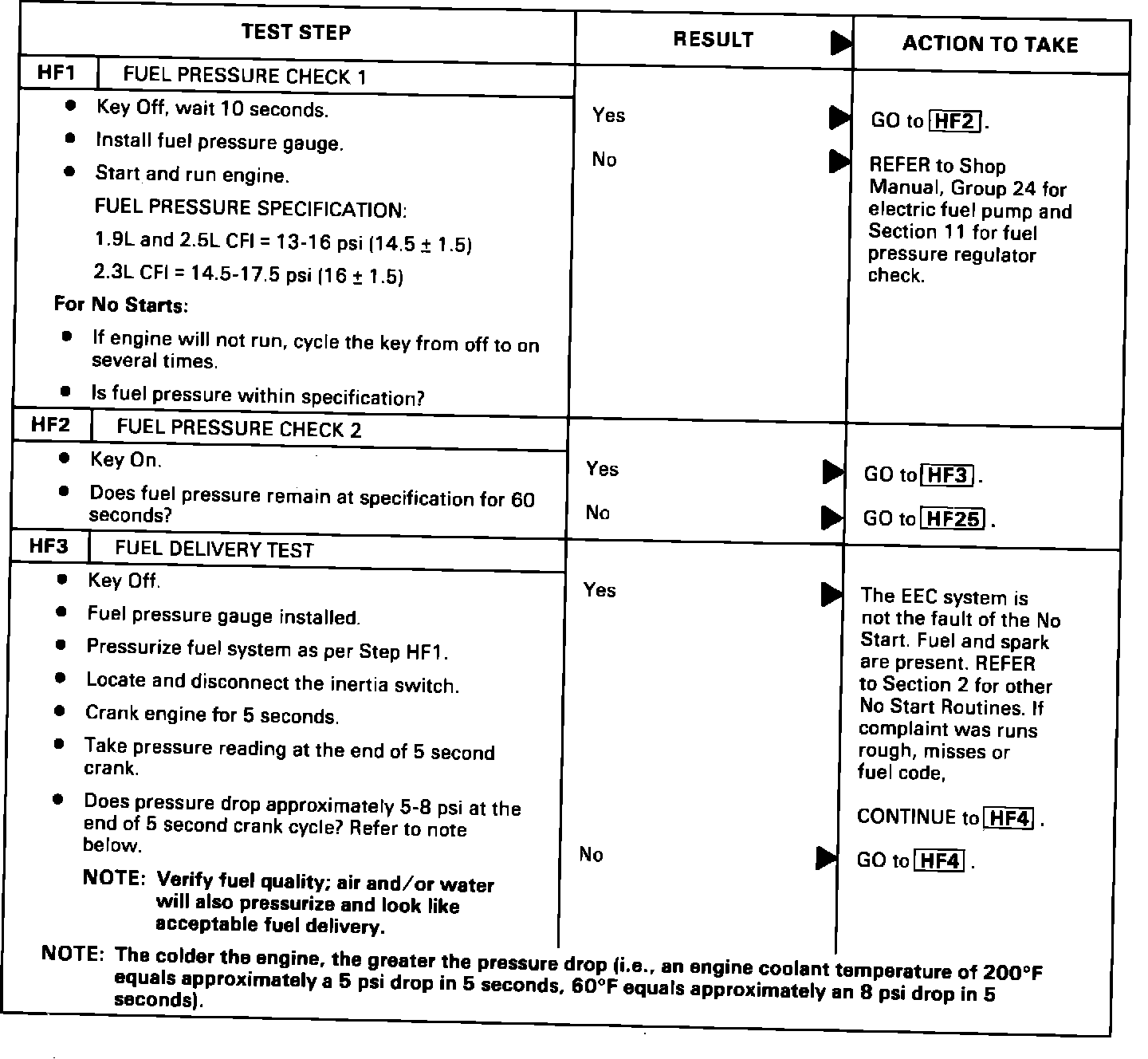

Fuel Control - 1.9L CFI & 2.3L/2.5L (HSC) CFI







Pinpoint

Test - HF
