Home >> Mercury >> 1987 >> Topaz AWD L4-140 2.3L HSC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

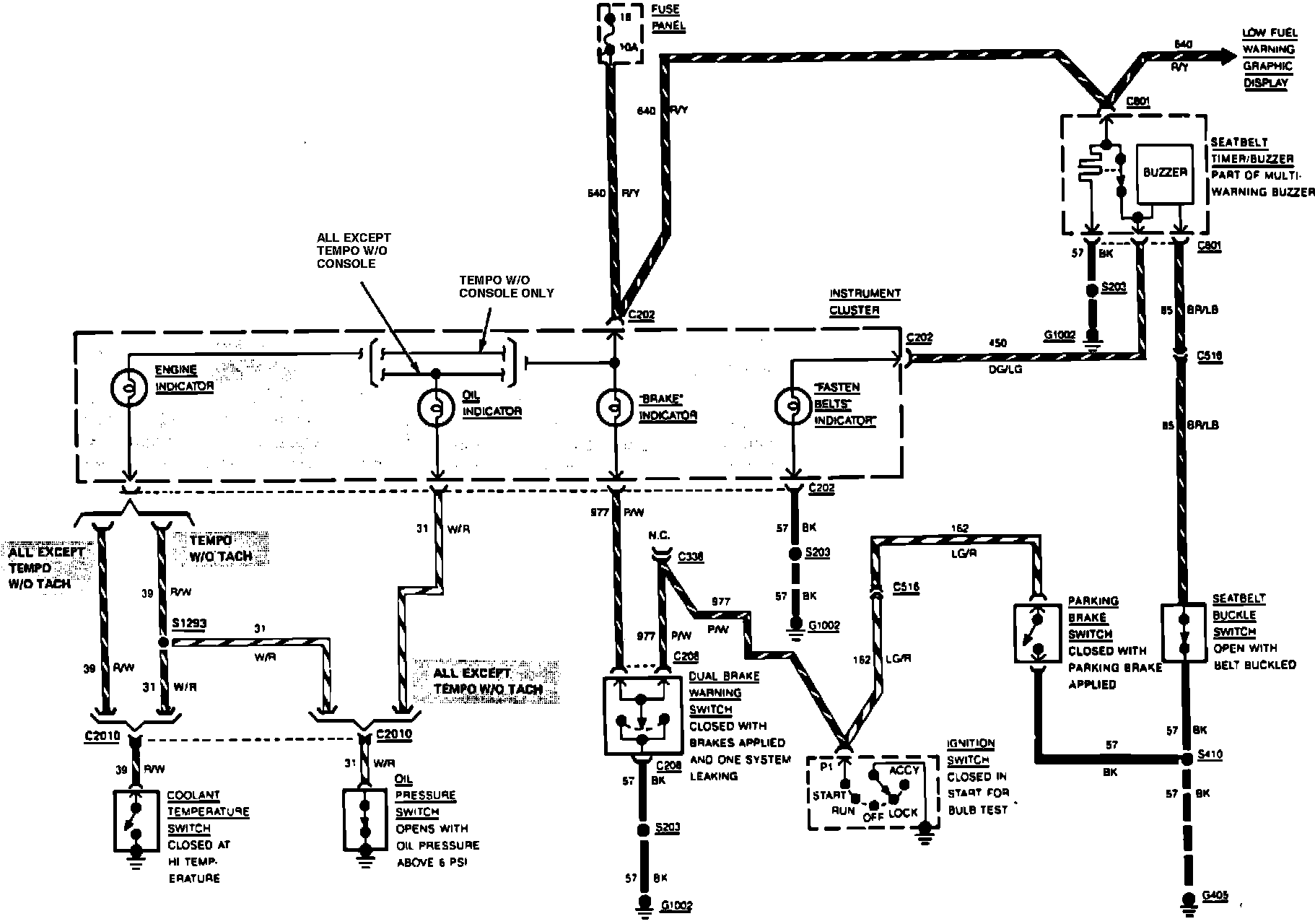

Fig. 47 Warning Indicators Wiring Circuit. Gasoline Engine:
