Oil Pan: Service and Repair

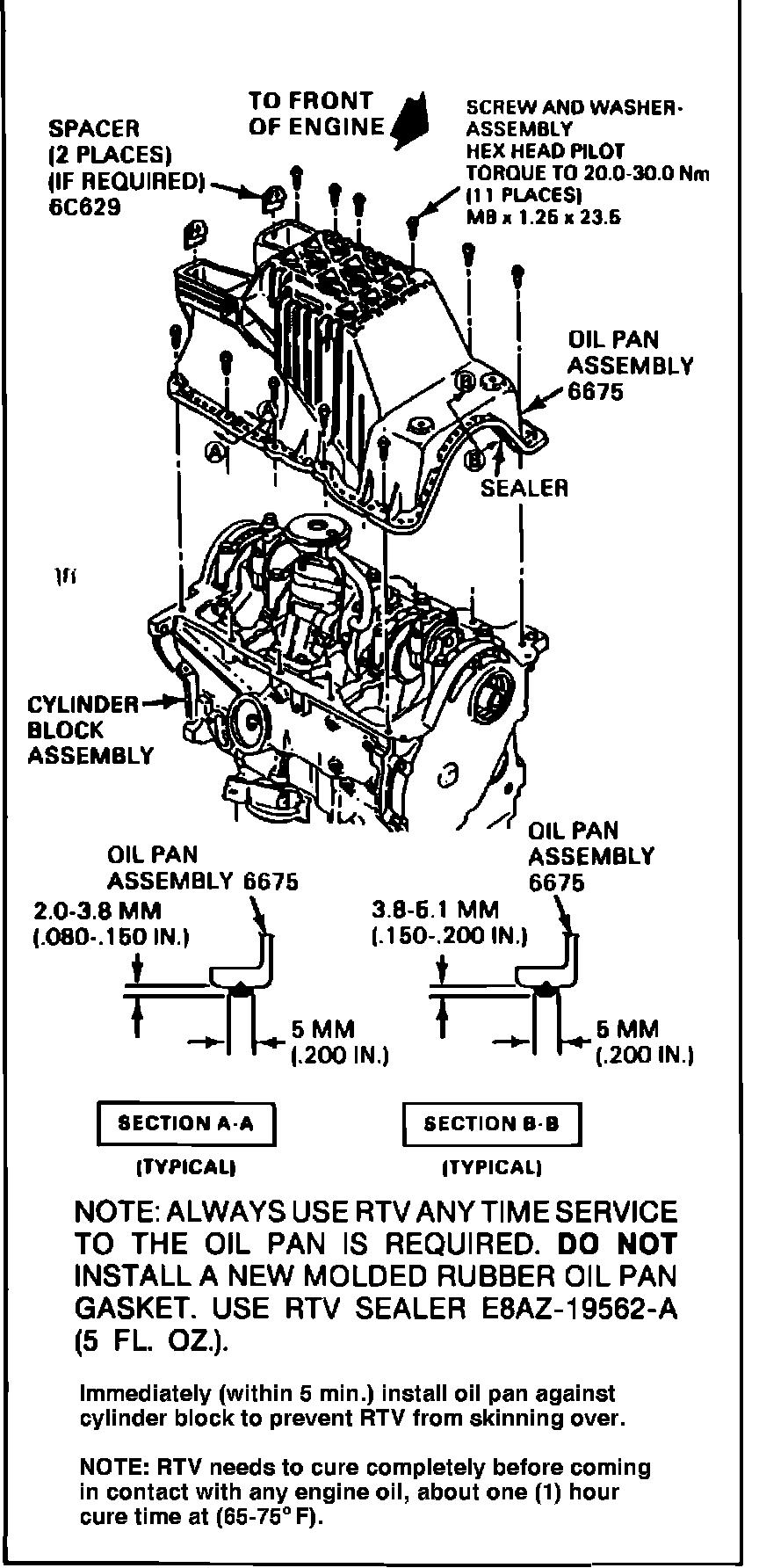

Fig. 13 Oil pan removal:

*** UPDATED BY TSB #89-12A-27

1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. Drain coolant and oil from engine.
4. On models equipped with manual transaxle, remove roll restrictor.
5. Remove starter from engine.
6. Disconnect exhaust pipe from oil pan.
7. Remove engine coolant tube located at the lower radiator hose, at the water pump and from tabs on oil pan.
8. Remove oil pan bolts and oil pan, per Fig. 13, from engine.
9. Reverse procedure to install.
