Home >> Mercury >> 1987 >> Topaz AWD L4-140 2.3L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Illuminated Entry >> Less Power Door Locks & Power Windows

Less Power Door Locks & Power Windows

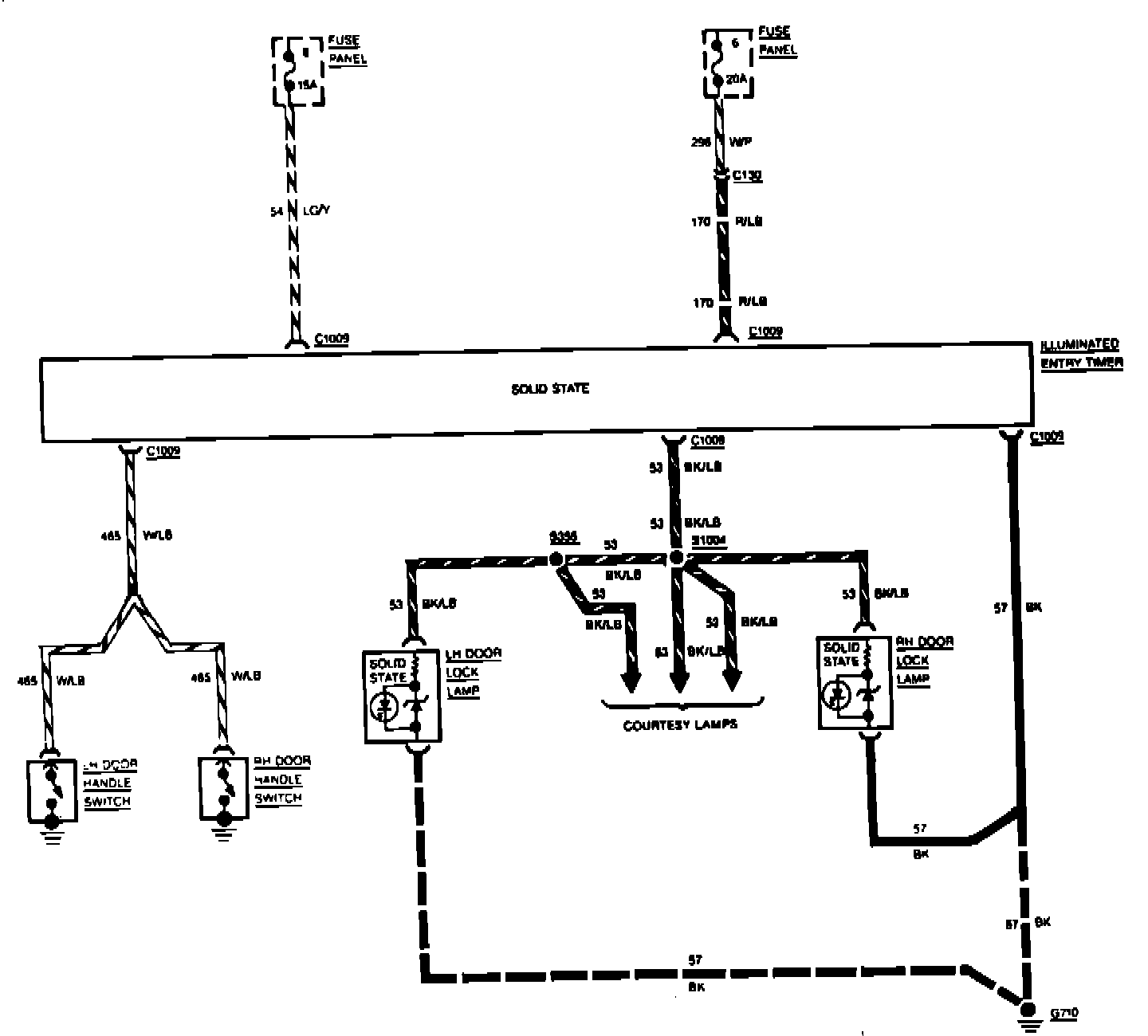

Fig. 28 Illuminated Entry System Wiring Circuit. Less Power Locks & Power Windows:
