Locations

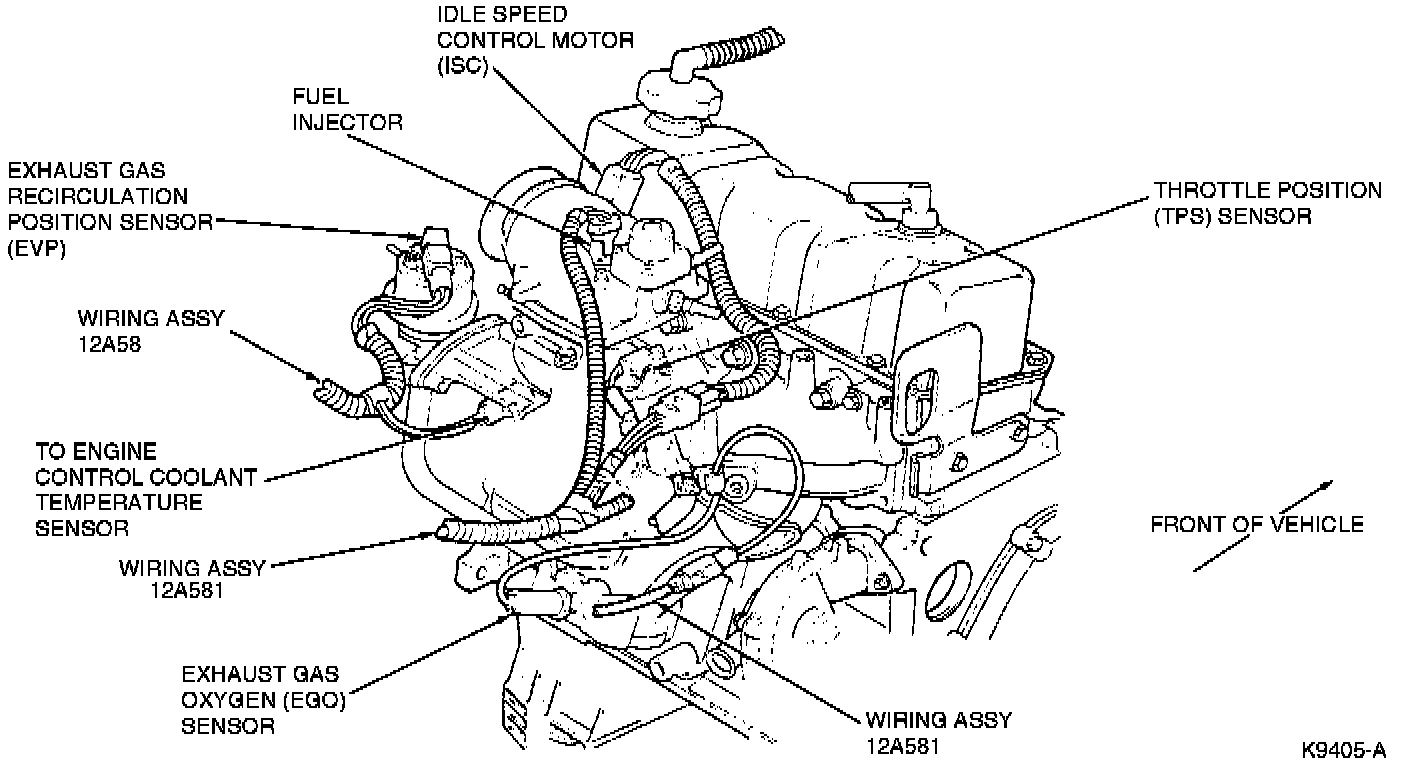

Coolant Temperature Sensor/Switch (For Computer): Locations
Engine:
The engine coolant temperature sensor is located on the rear of the engine.
