G200 (Sable Mechanical Instrument Cluster)

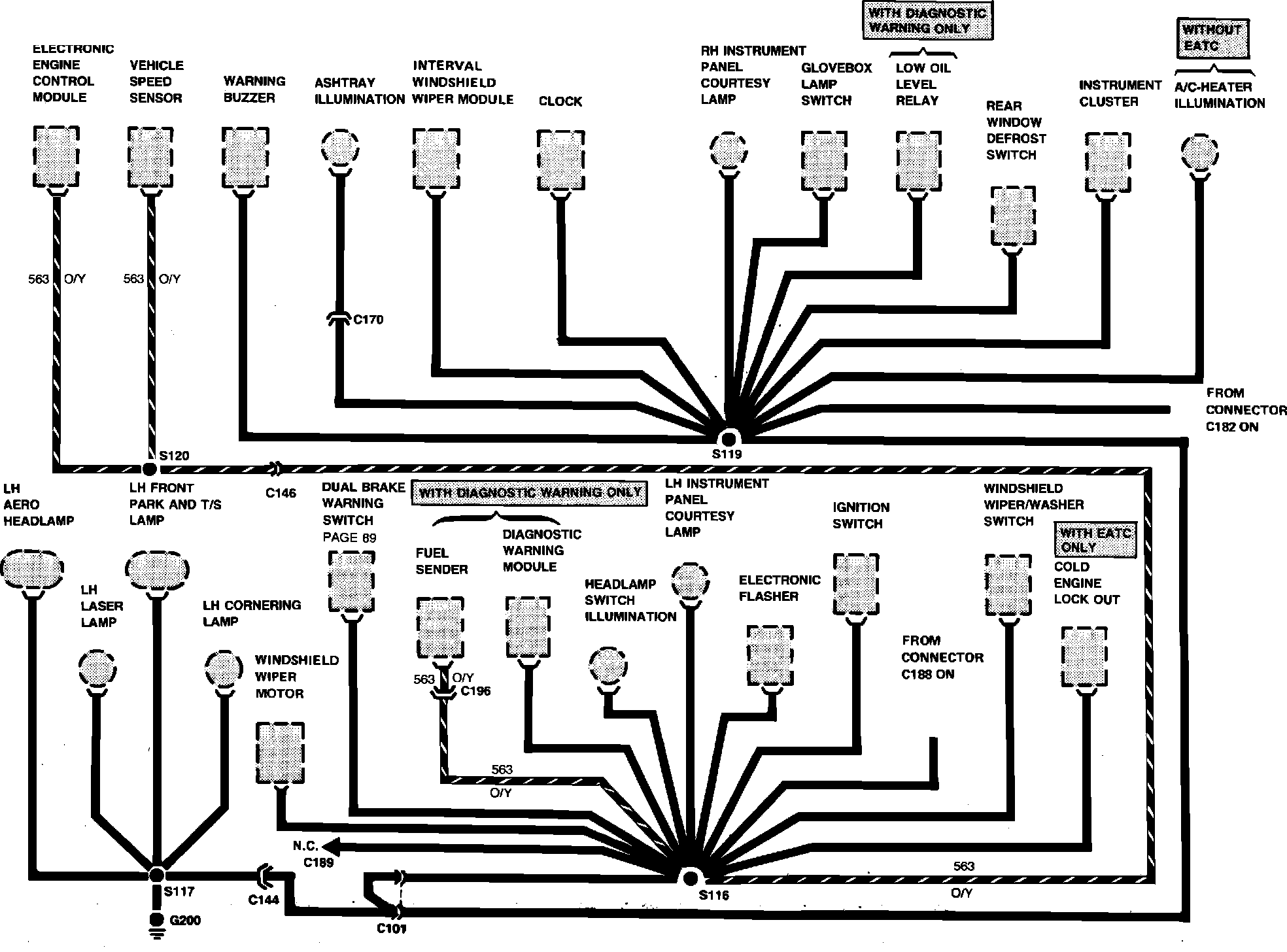

Fig. 25 Ground Distribution. G200 (Sable Mechanical Instrument Cluster):
