G200 (Sable Electronic Instrument Cluster)

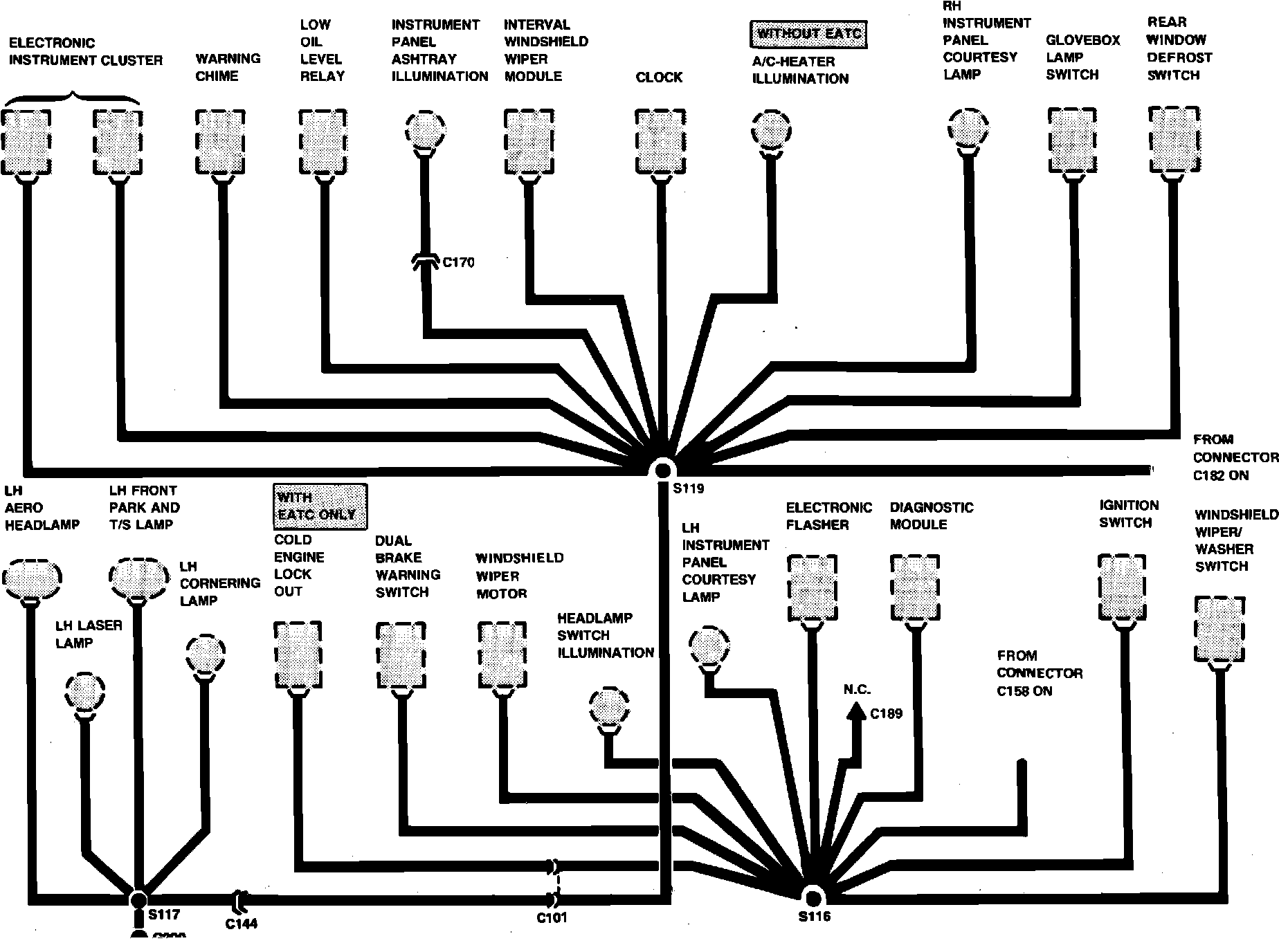

Fig. 23 Ground Distribution. G200 (Sable Electronic Instrument Cluster):
