G104 (Sable & Taurus Station Wagon)

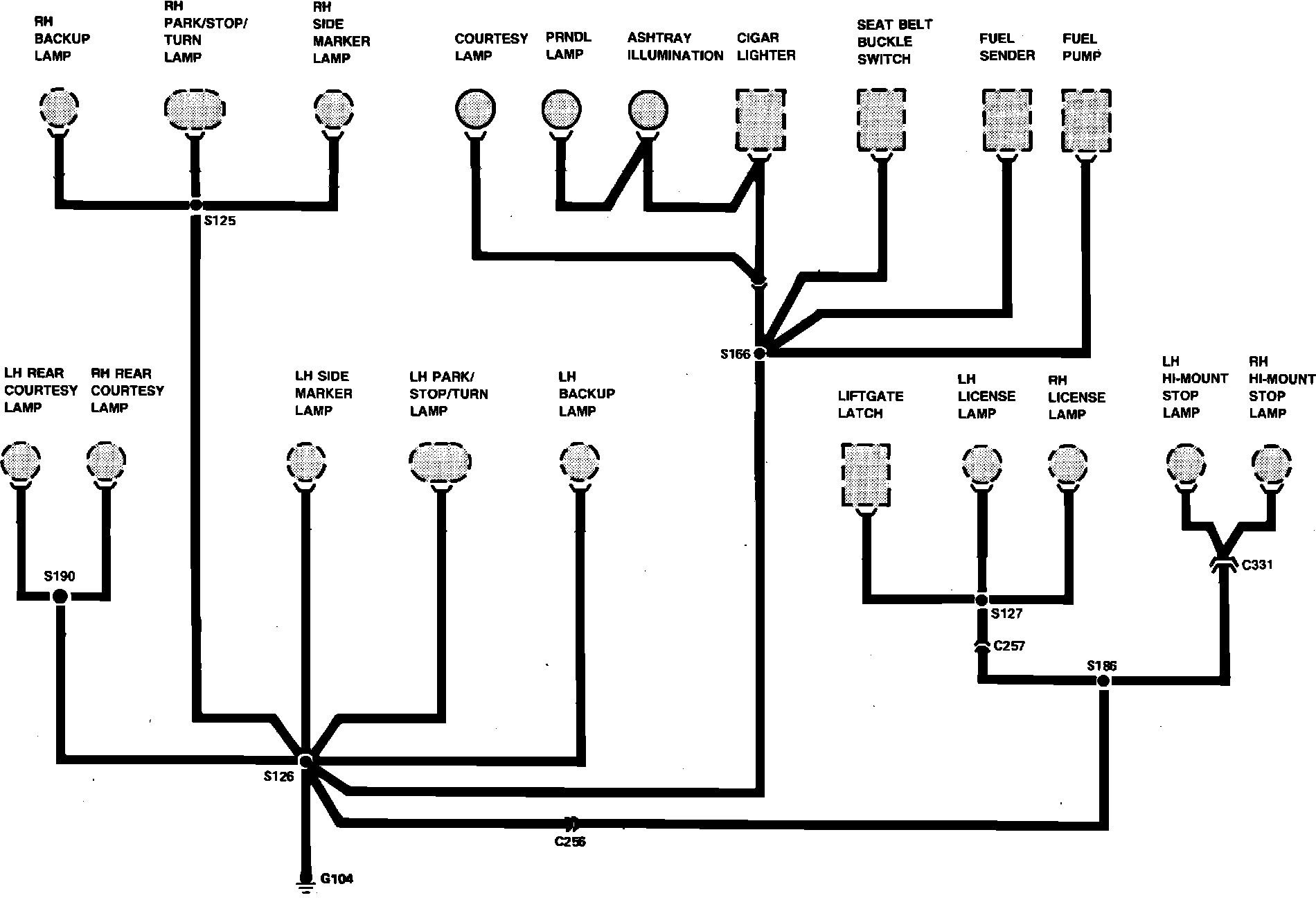

Fig. 22 Ground Distribution. G104 (Sable & Taurus Station Wagon):
