Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

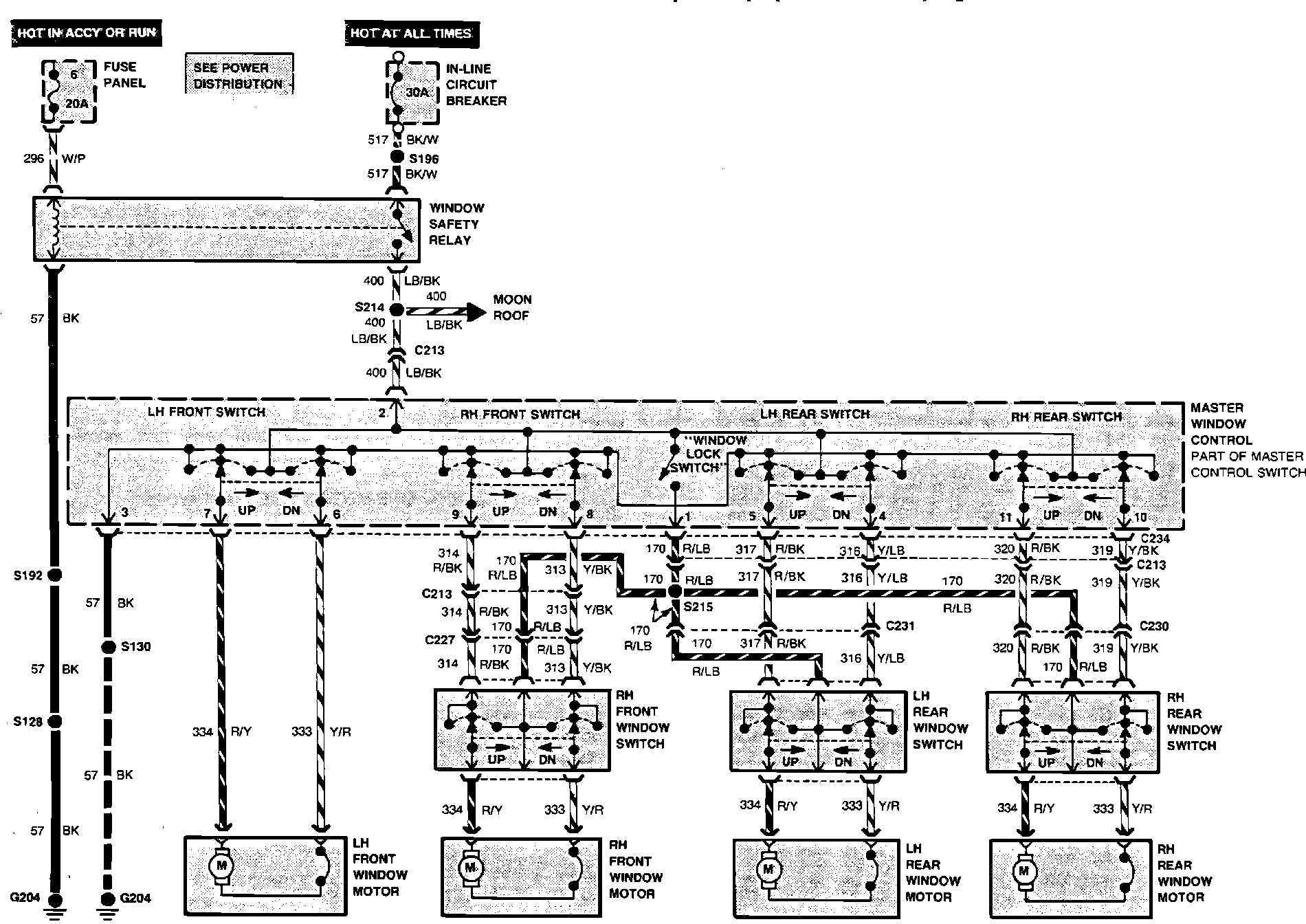

Fig. 68 Power Windows Wiring Circuit:
