Headlamp Control Module: Locations

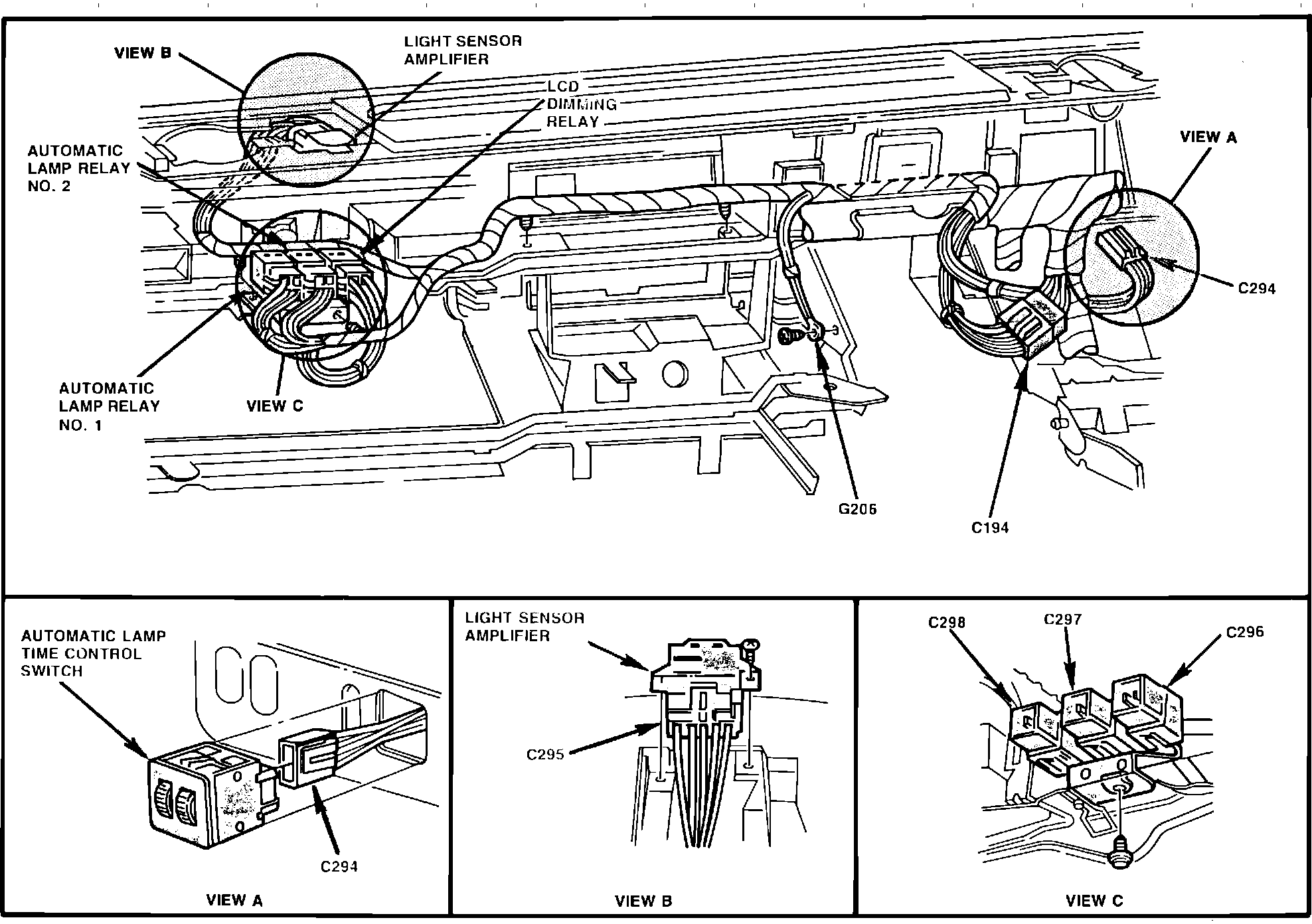

Instrument Panel Wiring, Autolamps.:




Behind I/P To Right Of Radio

Applicable to: 1986-87 Models
