Taurus 4 Door Low Series, Sable & Taurus Station Wagon
Taurus 4 Door Low Series, Sable & Taurus Station Wagon

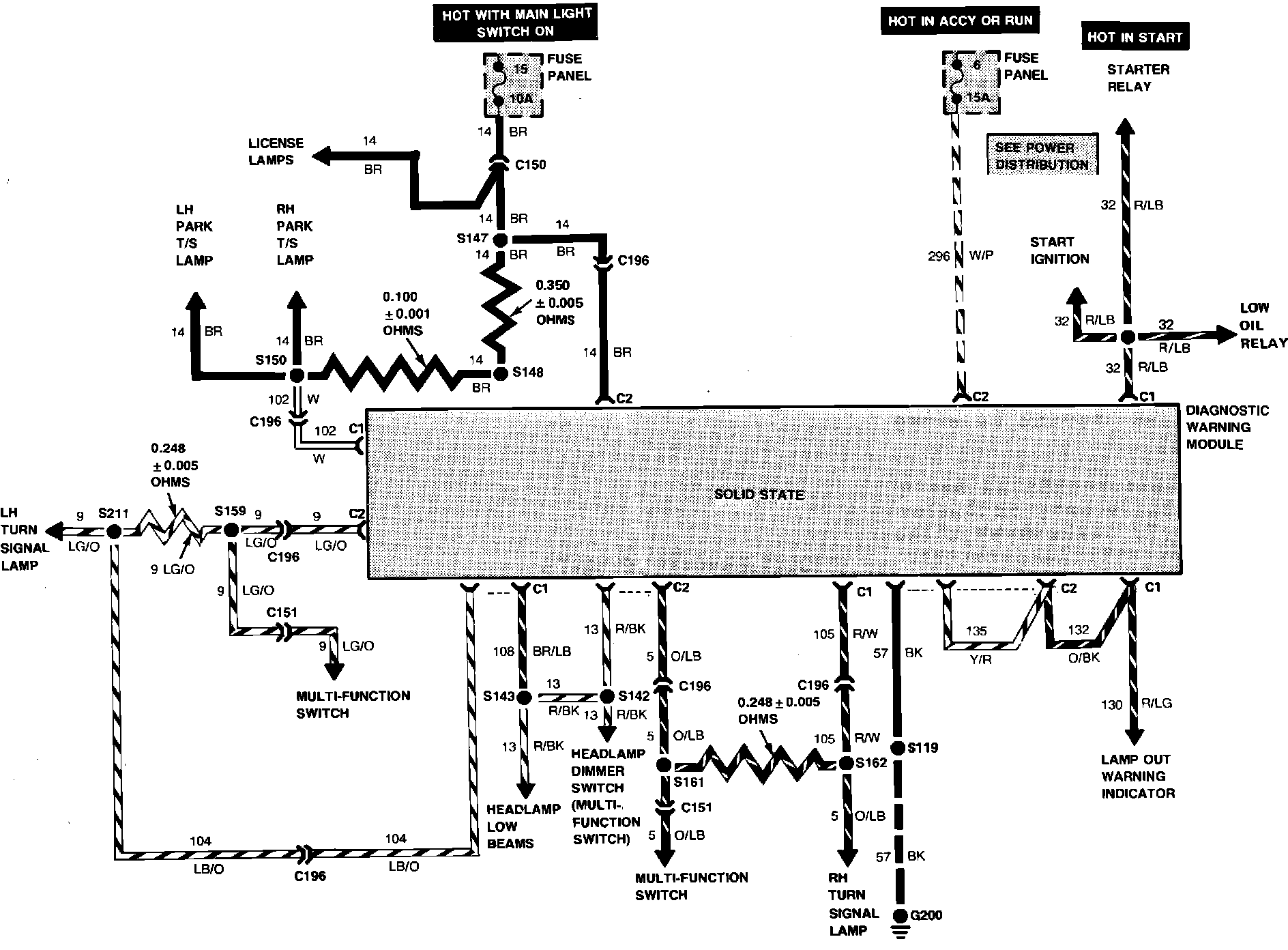

Fig. 58 Lamps Out Wiring Circuit. Taurus 4 Door Low Series, Sable & Taurus Station Wagon:
