Crankshaft - New Rear Seal Retainer/Service Tip

87ford01

Article No. CRANKSHAFT - 2.3L HSC/2.5L HSC - NEW REAR
87-13-8 SEAL RETAINER - SERVICE TIP


FORD: 1987 TEMPO, TAURUS

LINCOLN-MERCURY: 1987 TOPAZ, SABLE

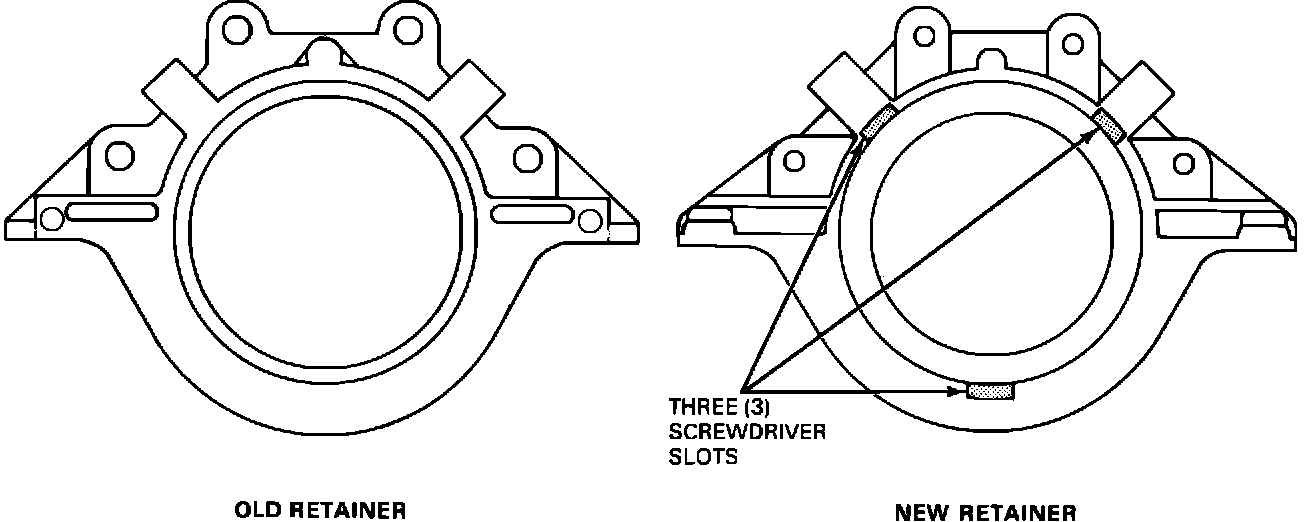

Figure 7 - SEAL RETAINER:

ISSUE: The new rear crankshaft seal retainer used on 1987 engines has three (3) screwdriver slots to allow prying the crankshaft seal from the retainer. The new rear crankshaft seal is installed the same way as prior model year seals.


ACTION: If service is required, remove the rear crankshaft seal using the three (3) screwdriver slots provided, Figure 7.

PART NUMBER PART NAME CLASS

E8DZ-6335-A Retainer - Crankshaft B
Seal

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
