Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Wiper Relay >> Front >> With Intermittent Wipers

With Intermittent Wipers

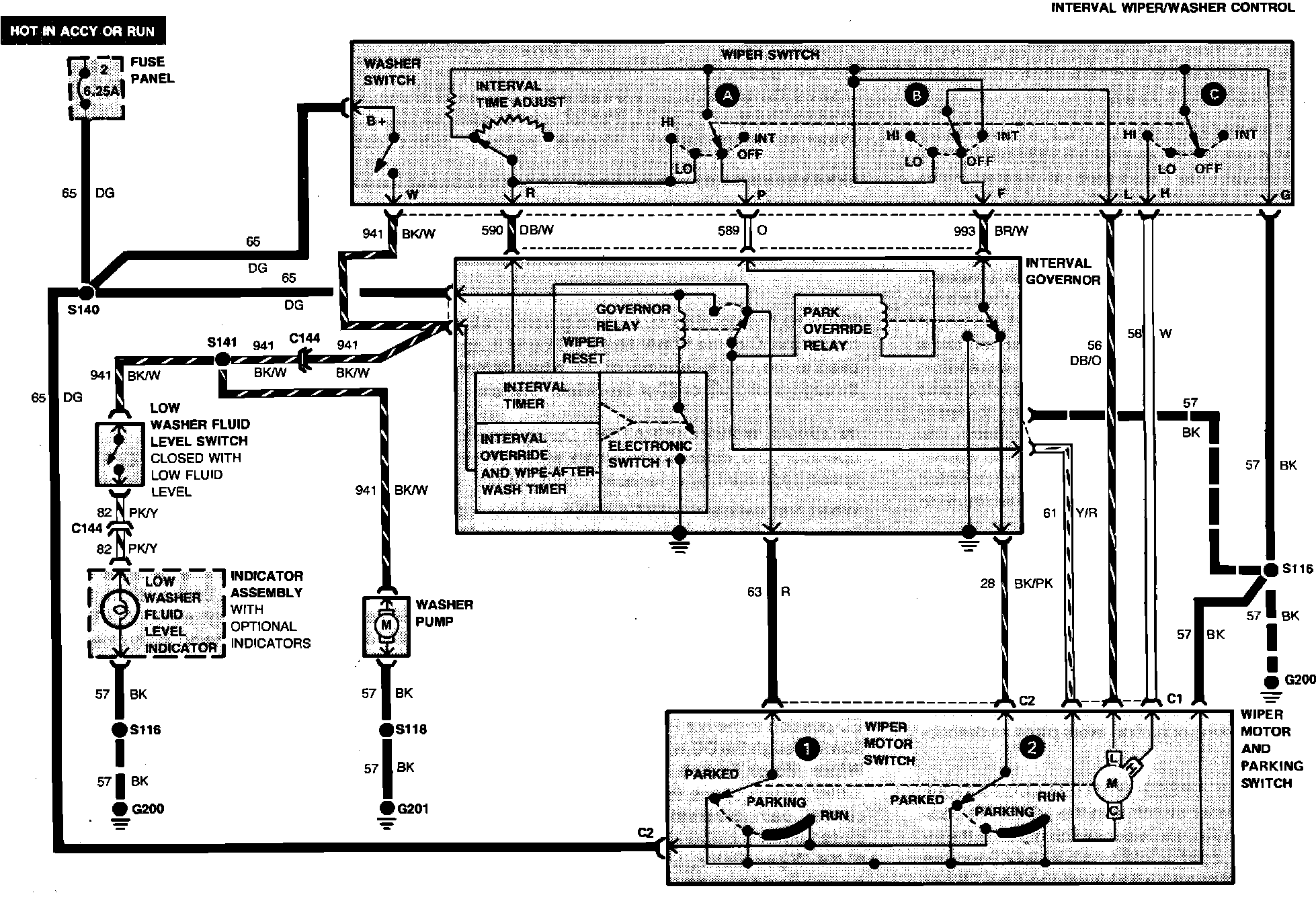

Fig. 52 Interval Wiper/Washer Wiring Circuit:
