Radio, Stereo and Compact Disc

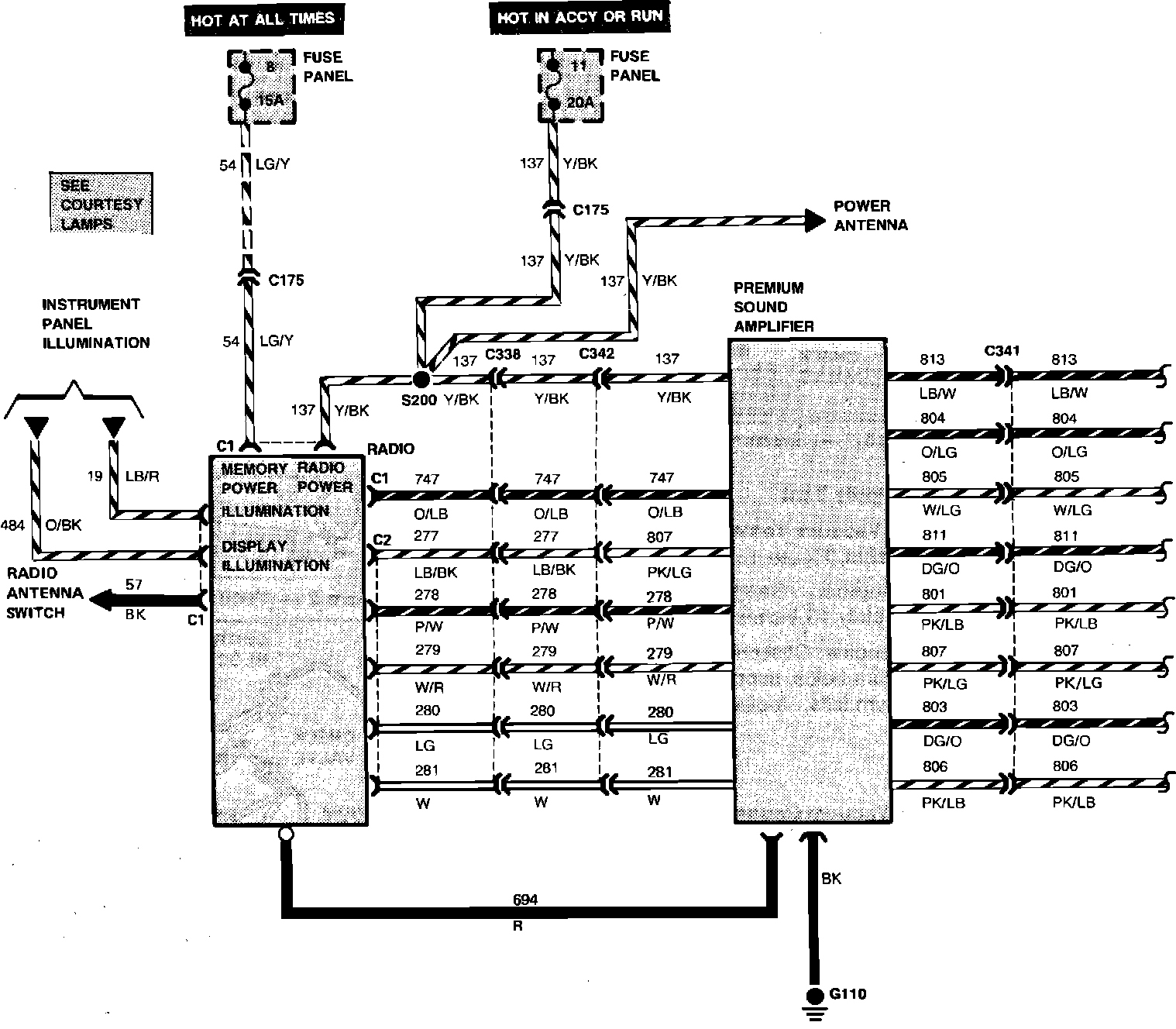

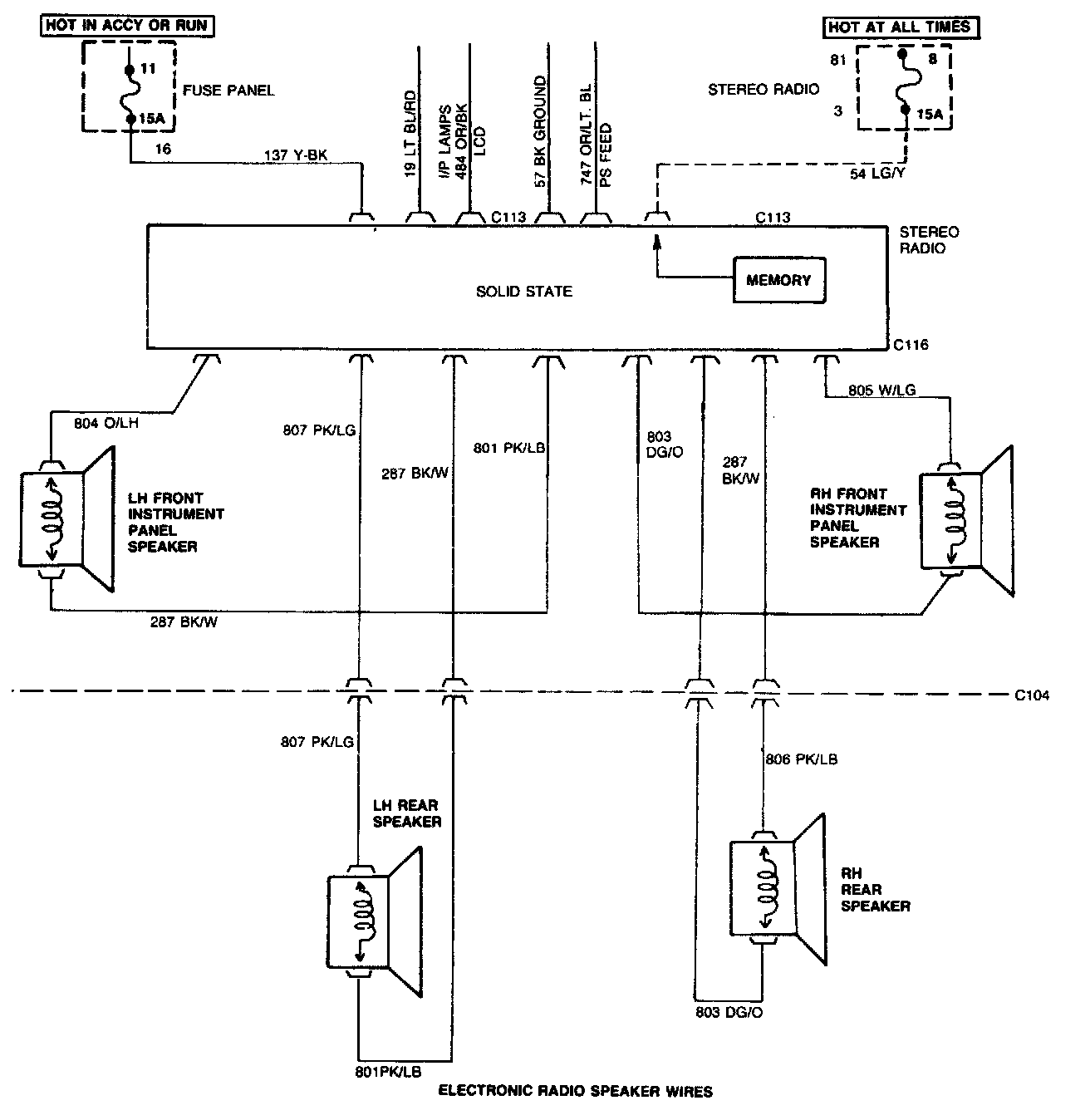

Fig. 69 Radio Wiring Circuit (Part 1 of 2):

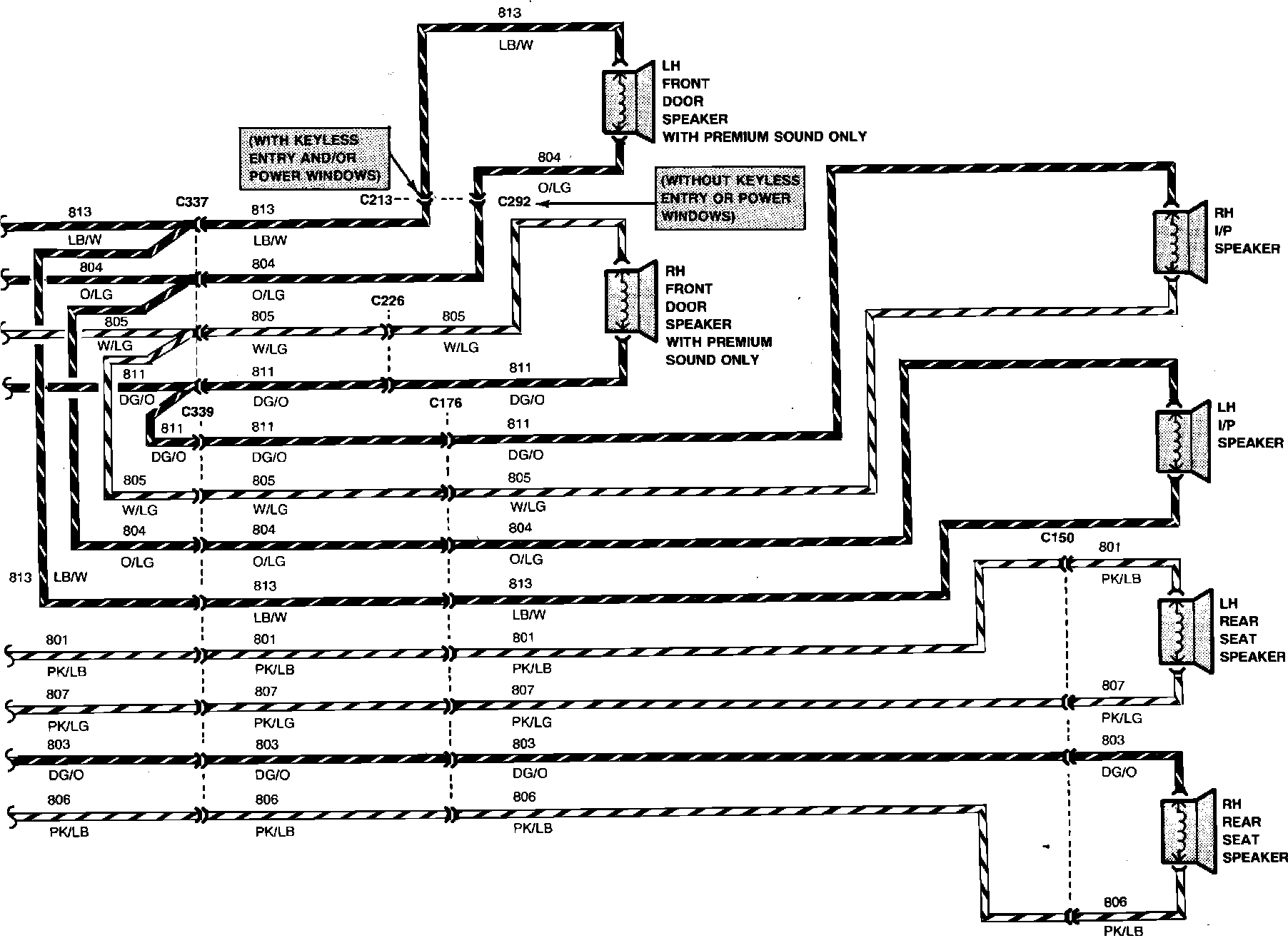

Fig. 69 Radio Wiring Circuit (Part 2 of 2):
