W/Non-Electronic Cluster W/Autolamp

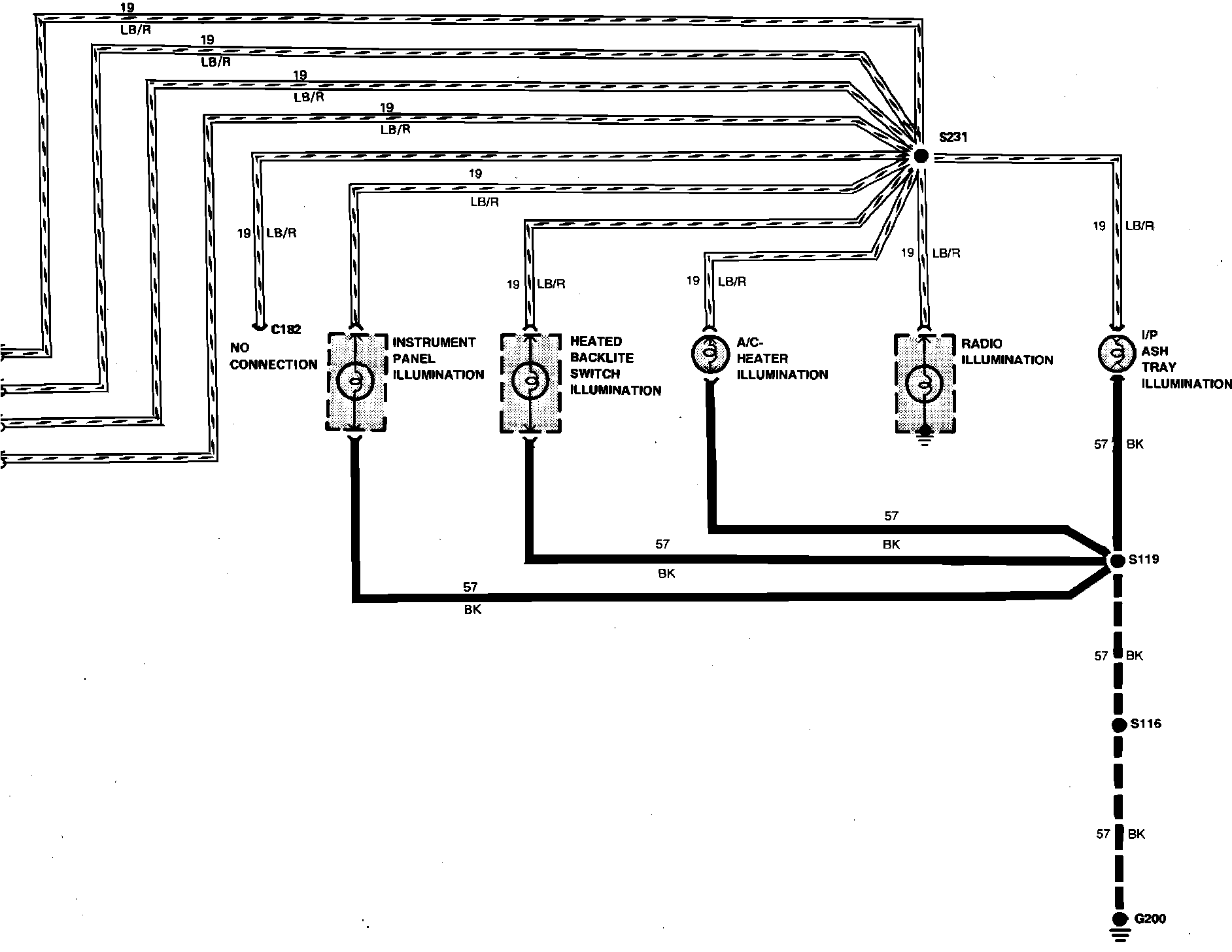

Fig. 47 Instrument Illumination Wiring Circuit (Part 2 of 2). Sable w/Non-Electronic Cluster w/Autolamp:

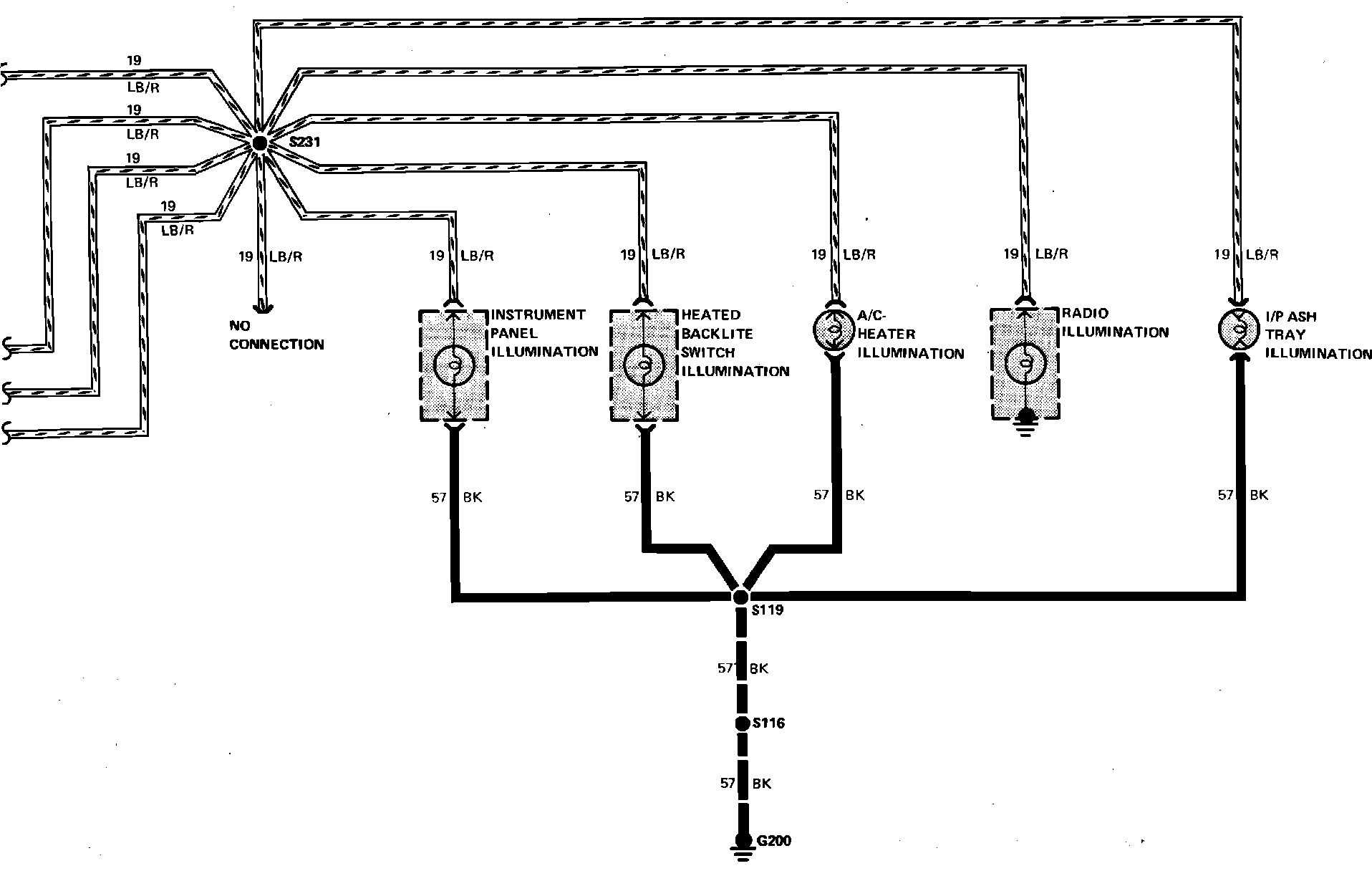

Fig. 45 Instrument Illumination Wiring Circuit (Part 2 of 2). Sable w/Non-Electronic Cluster Less Autolamp:
