Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination >> Part 1 of 2 >> W/Non-Electronic Cluster Less Autolamp

W/Non-Electronic Cluster Less Autolamp

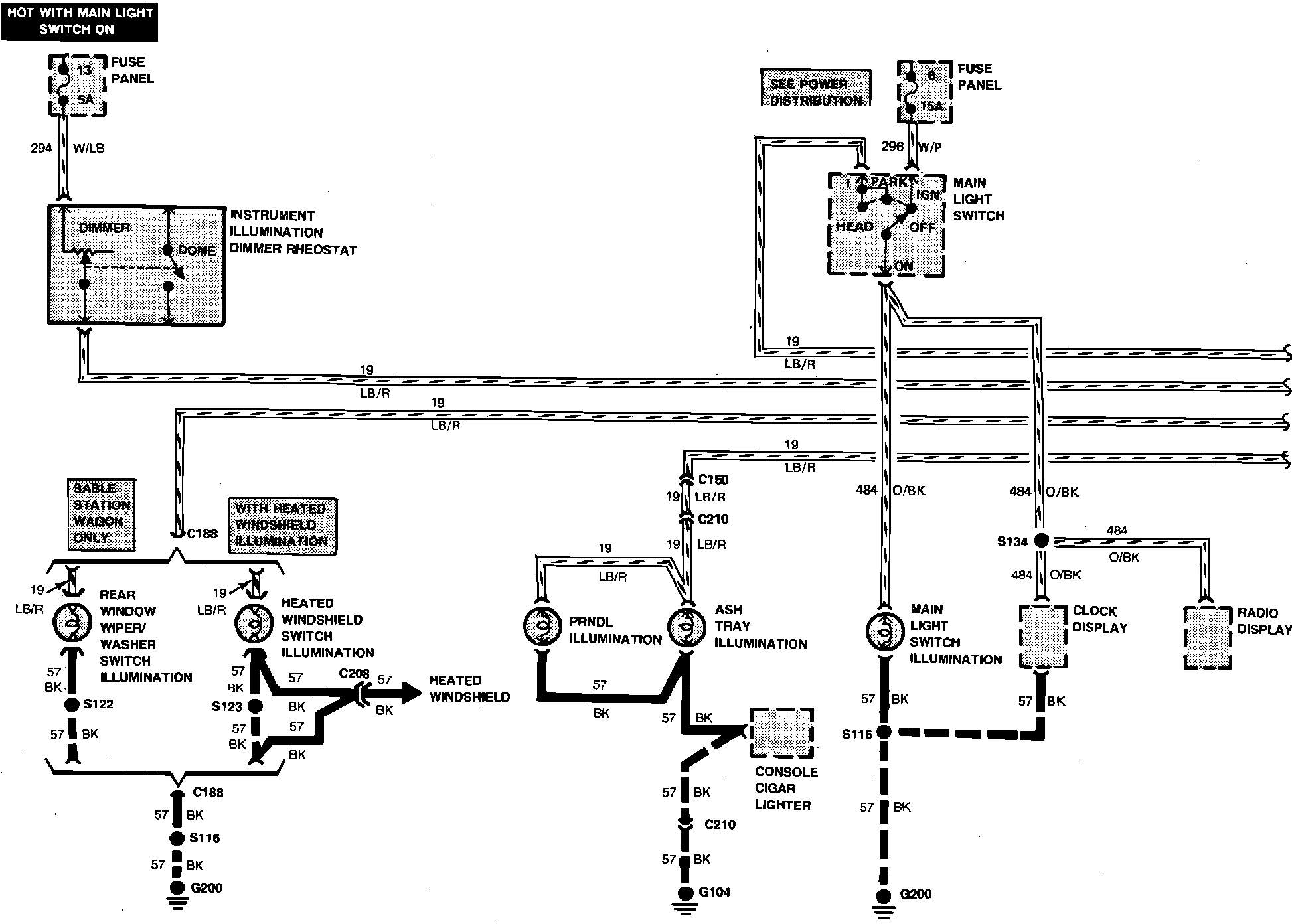

Fig. 45 Instrument Illumination Wiring Circuit (Part 1 of 2). Sable w/Non-Electronic Cluster Less Autolamp:

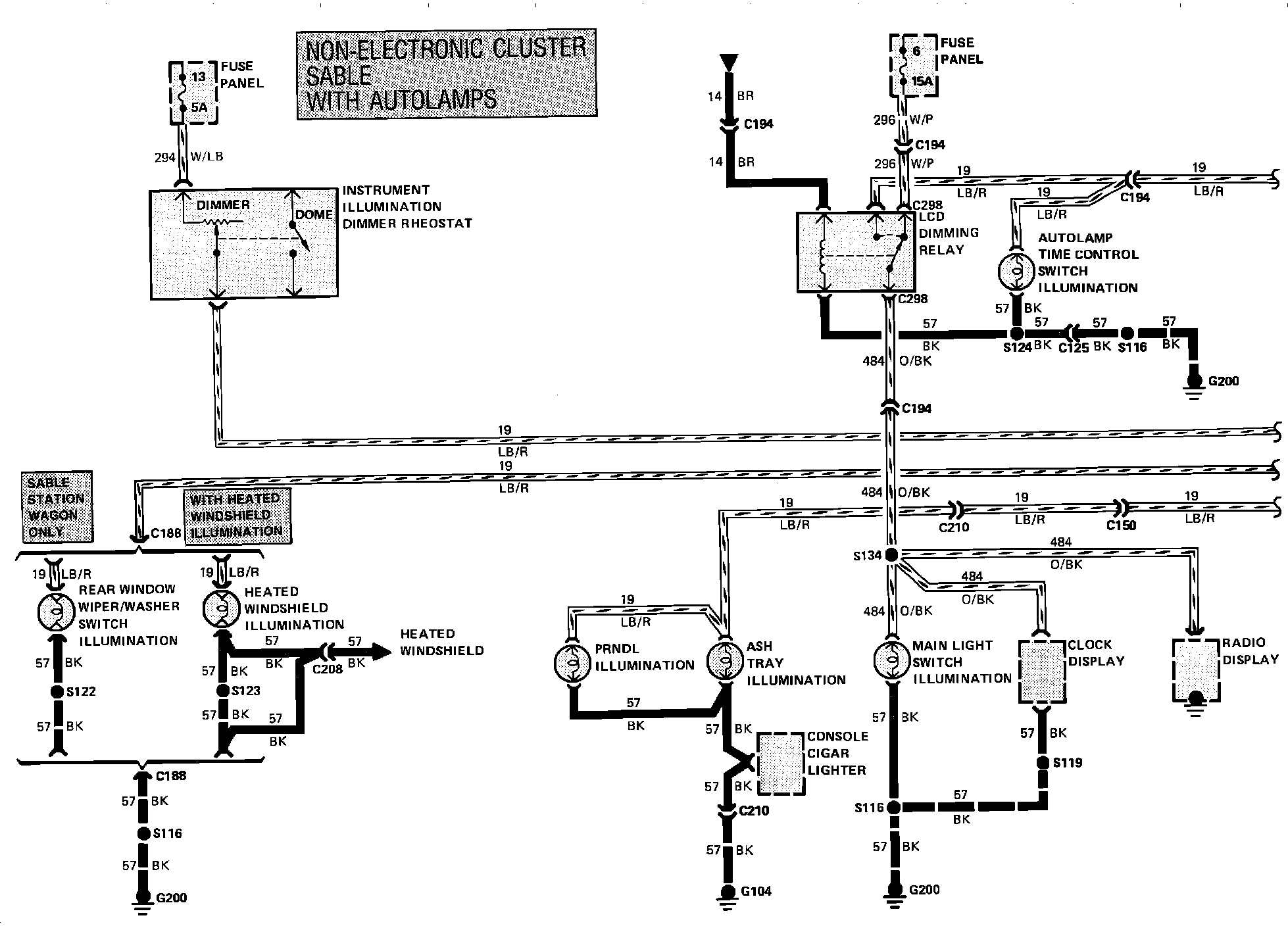

Fig. 47 Instrument Illumination Wiring Circuit (Part 1 of 2). Sable W/Non-Electronic Cluster w/Autolamp:
