Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Exterior Lighting Module >> Less Diagnostic Warning

Less Diagnostic Warning

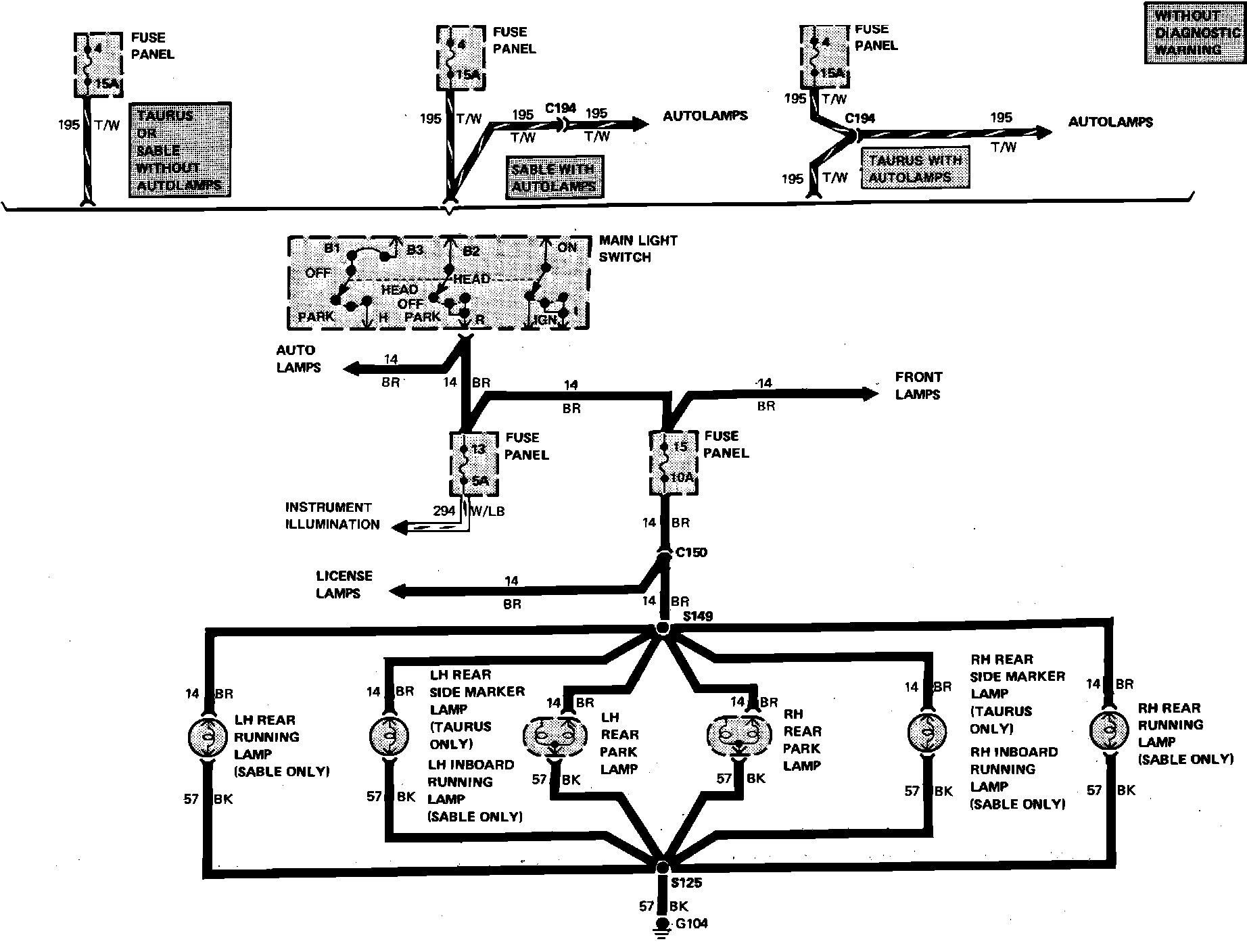

Fig. 17 Exterior Lamps Wiring Circuit. Less Diagnostic Warning:
