Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> Interior

Interior

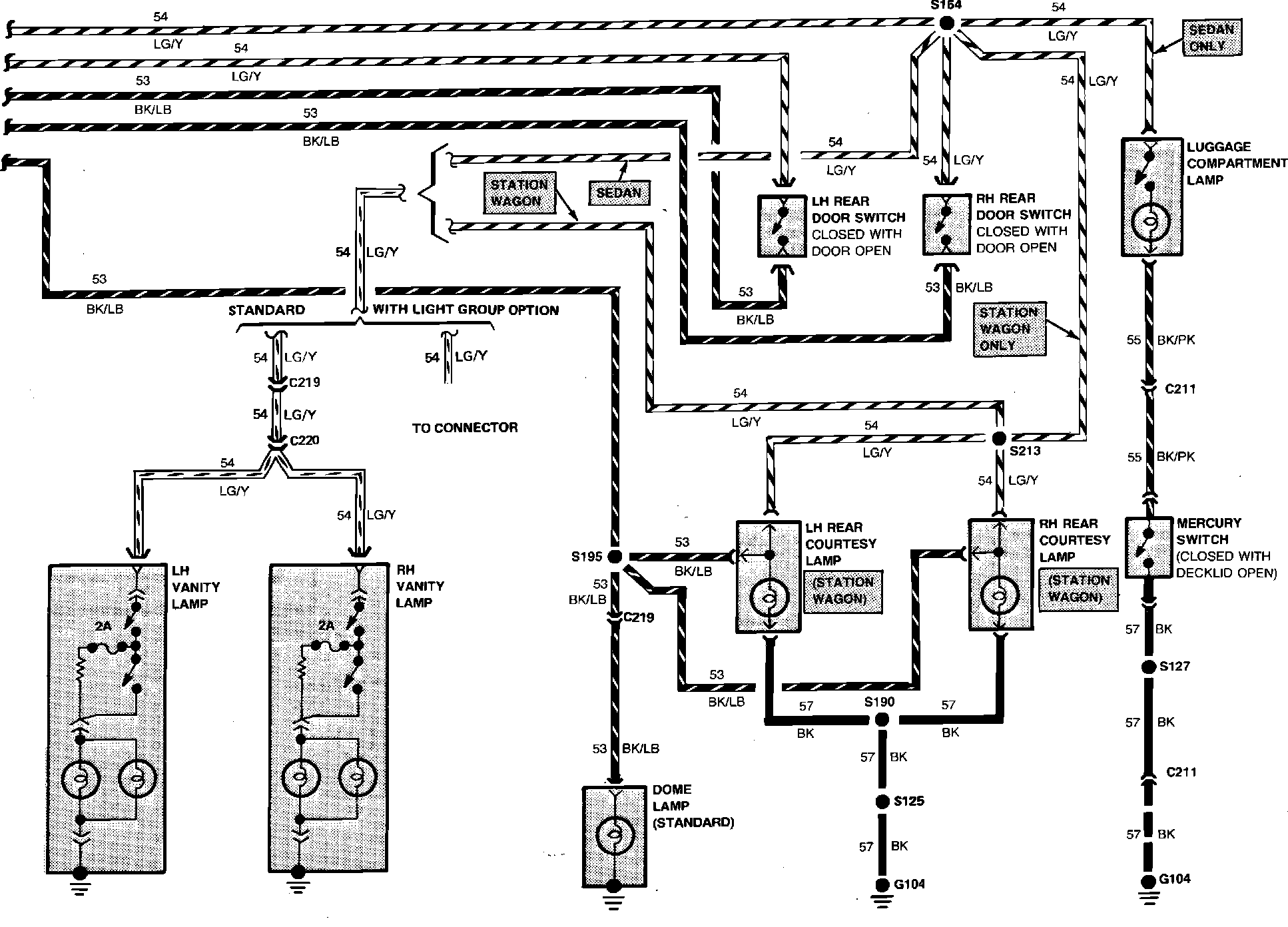

Fig. 10 Courtesy Lamps Wiring Circuit:



Fig. 10 Courtesy Lamps Wiring Circuit (Part 1 of 2):
