Instrument Cluster
>>
Analog
>>
W/Diagnostic Warning Indicators (Part 2 of 2)
W/Diagnostic Warning Indicators (Part 2 of 2)

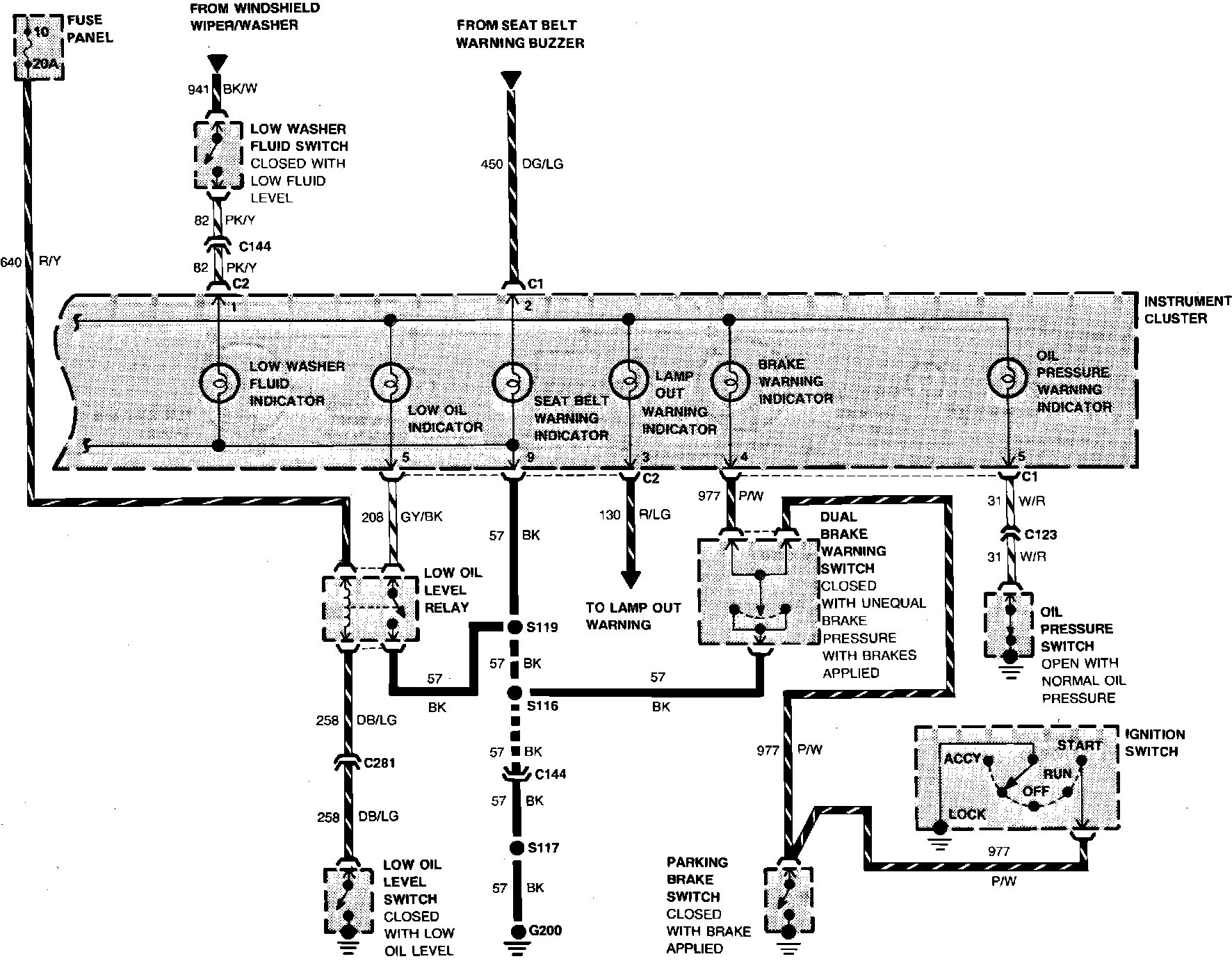

Fig. 40 Instrument Cluster (Non-Electronic) Wiring Circuit (Part 2 of 2). Sable w/Diagnostic Warning Indicators:
