Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster
>>
Analog
>>
W/Diagnostic Warning Indicators (Part 1 of 2)
W/Diagnostic Warning Indicators (Part 1 of 2)

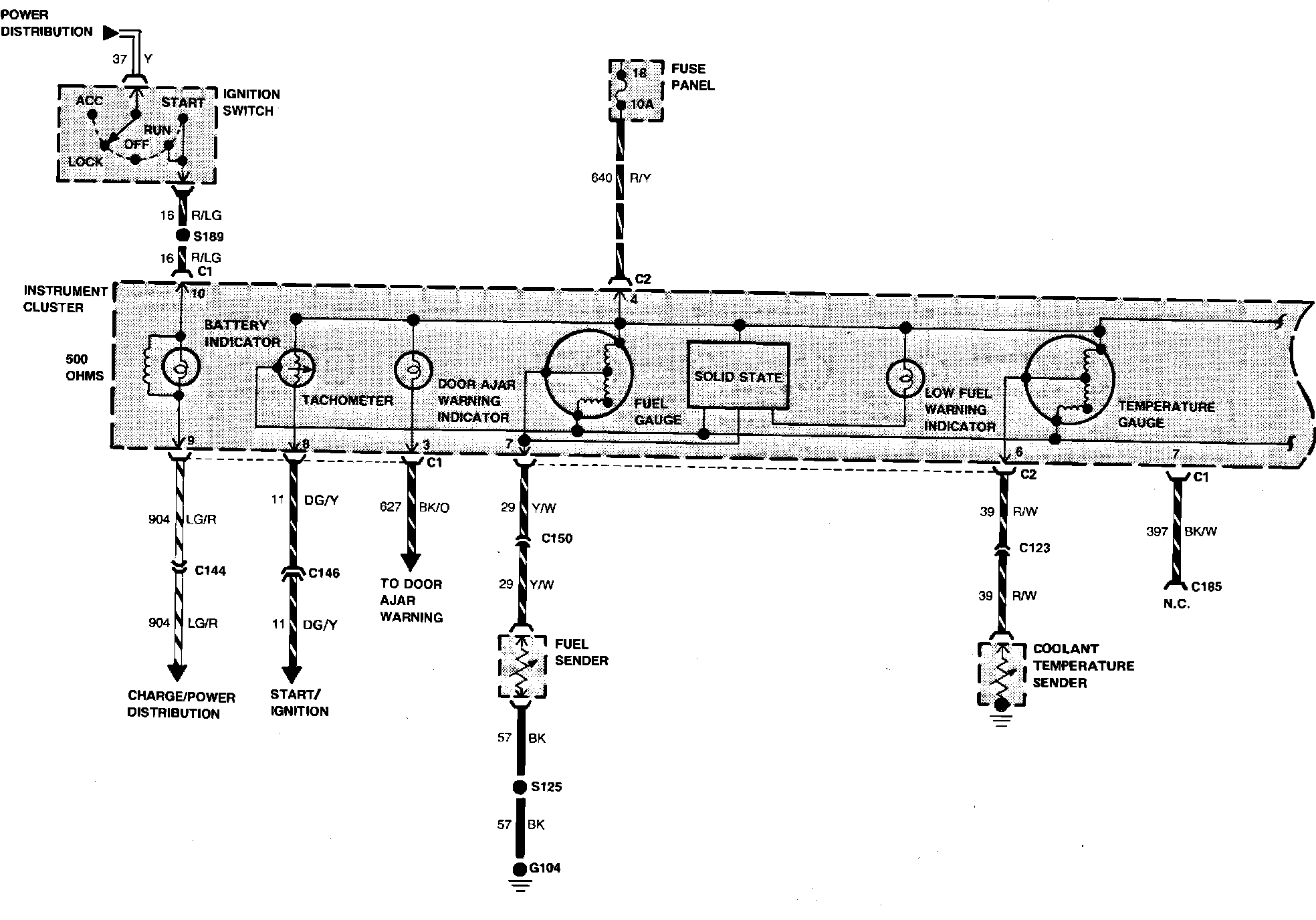

Fig. 40 Instrument Cluster (Non-Electronic) Wiring Circuit (Part 1 of 2). w/Diagnostic Warning Indicators:
