Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Analog >> Less Diagnostic Warning

Less Diagnostic Warning

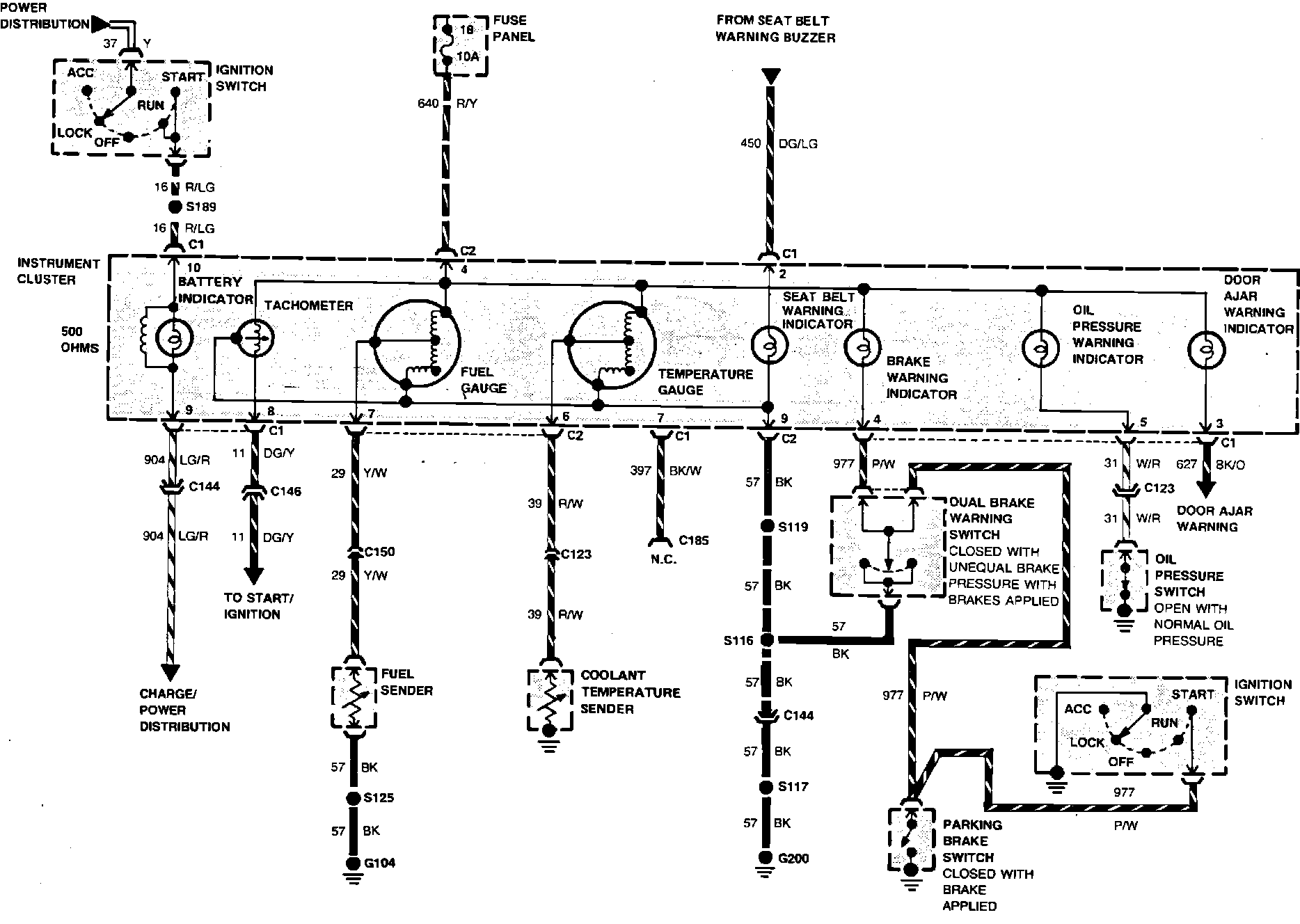

Fig. 38 Instrument Cluster (Non-Electronic) Wiring Circuit. Sable Less Diagnostic Warning Indicators:
