Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Electronic Climate Control >> Part 2 of 3

Part 2 of 3

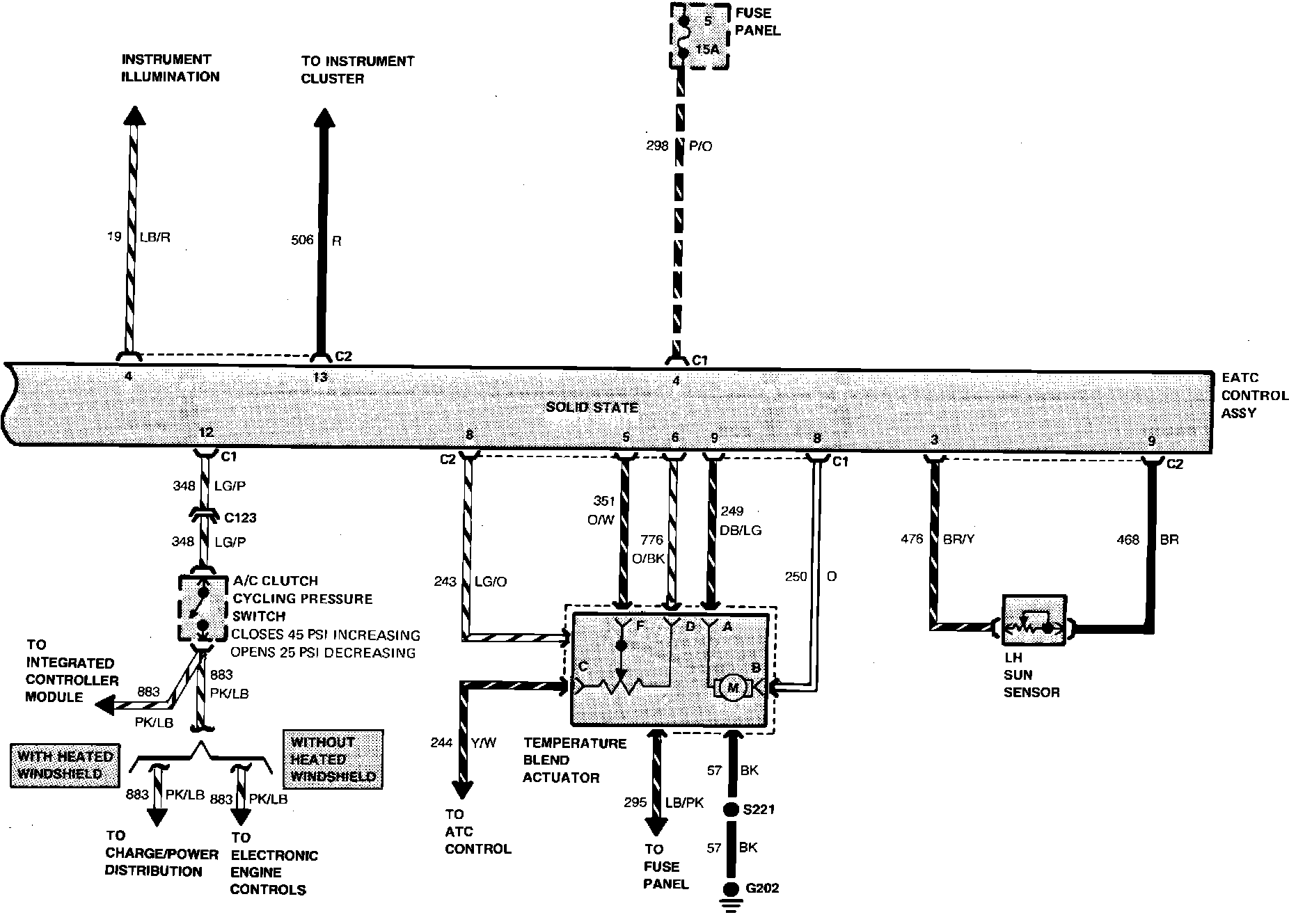

Fig. 2 Automatic Temperature Control Wiring Circuit (Part 2 of 2).:
