Cooling Fan Motor and Relays (Integrated Control Module)


The Engine Cooling Fan Motor receives power from the Integrated Control Module.

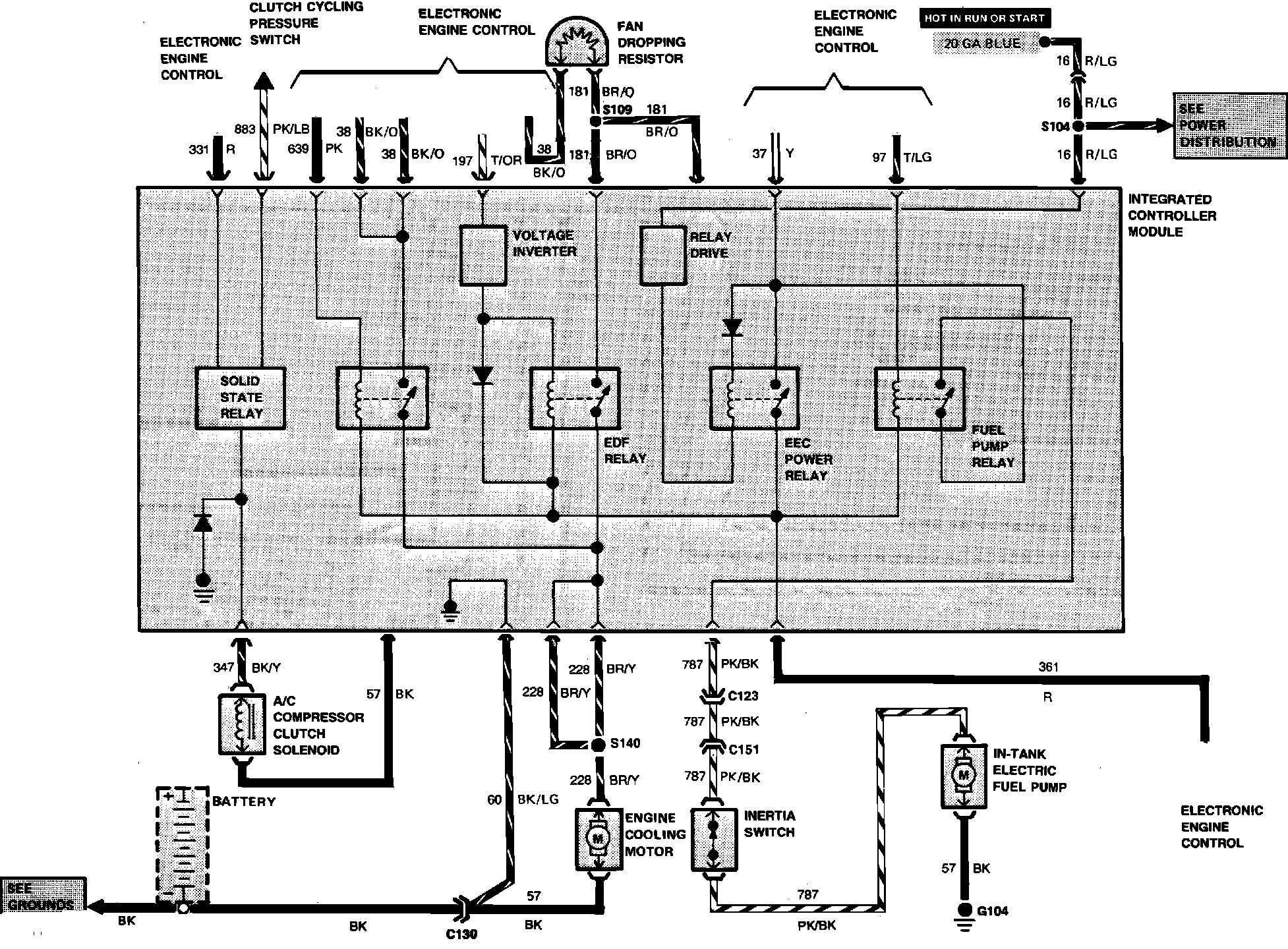

Wiring Diagram - Integrated Controller:

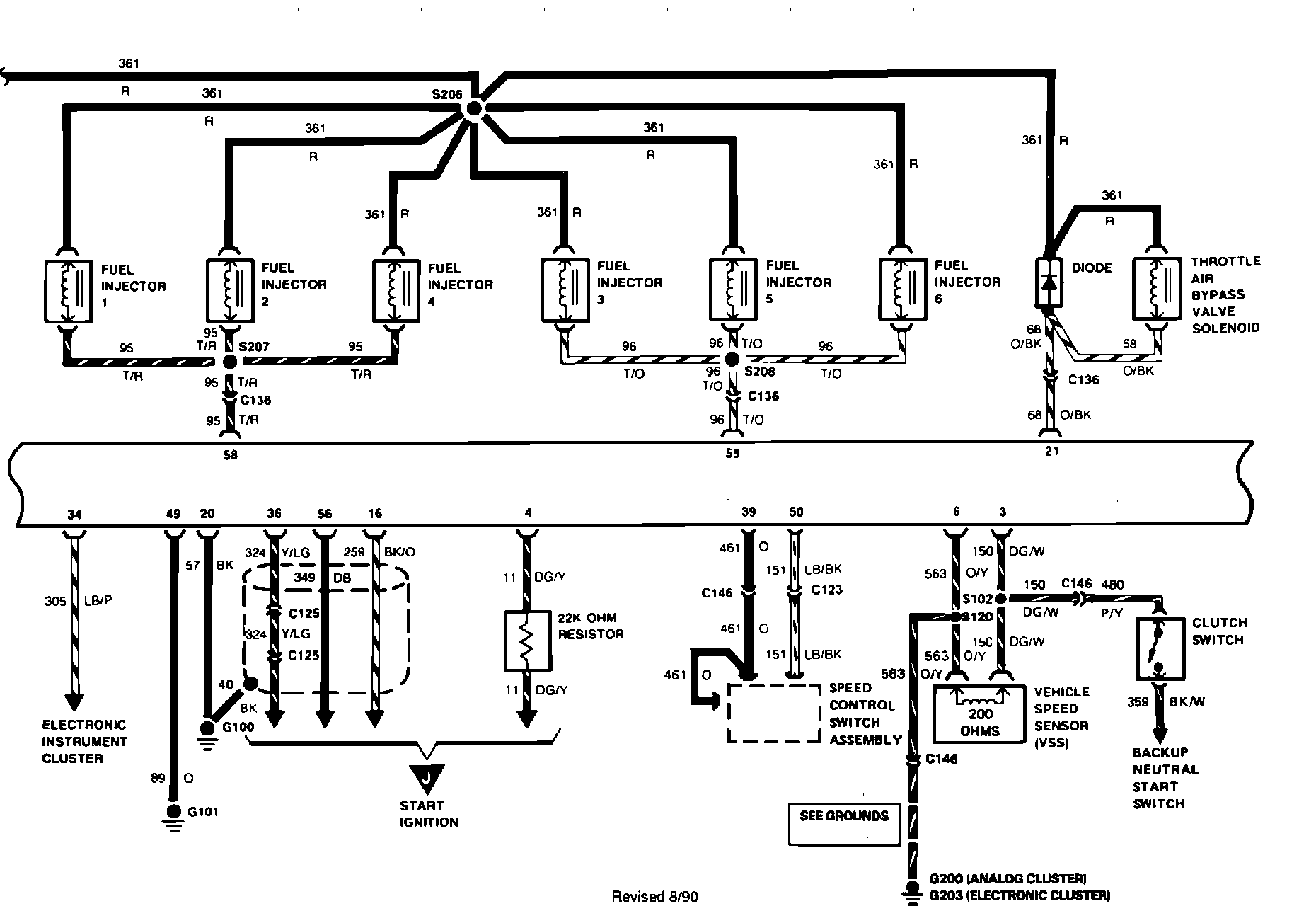

Wiring Diagram - Electronic Engine Control:

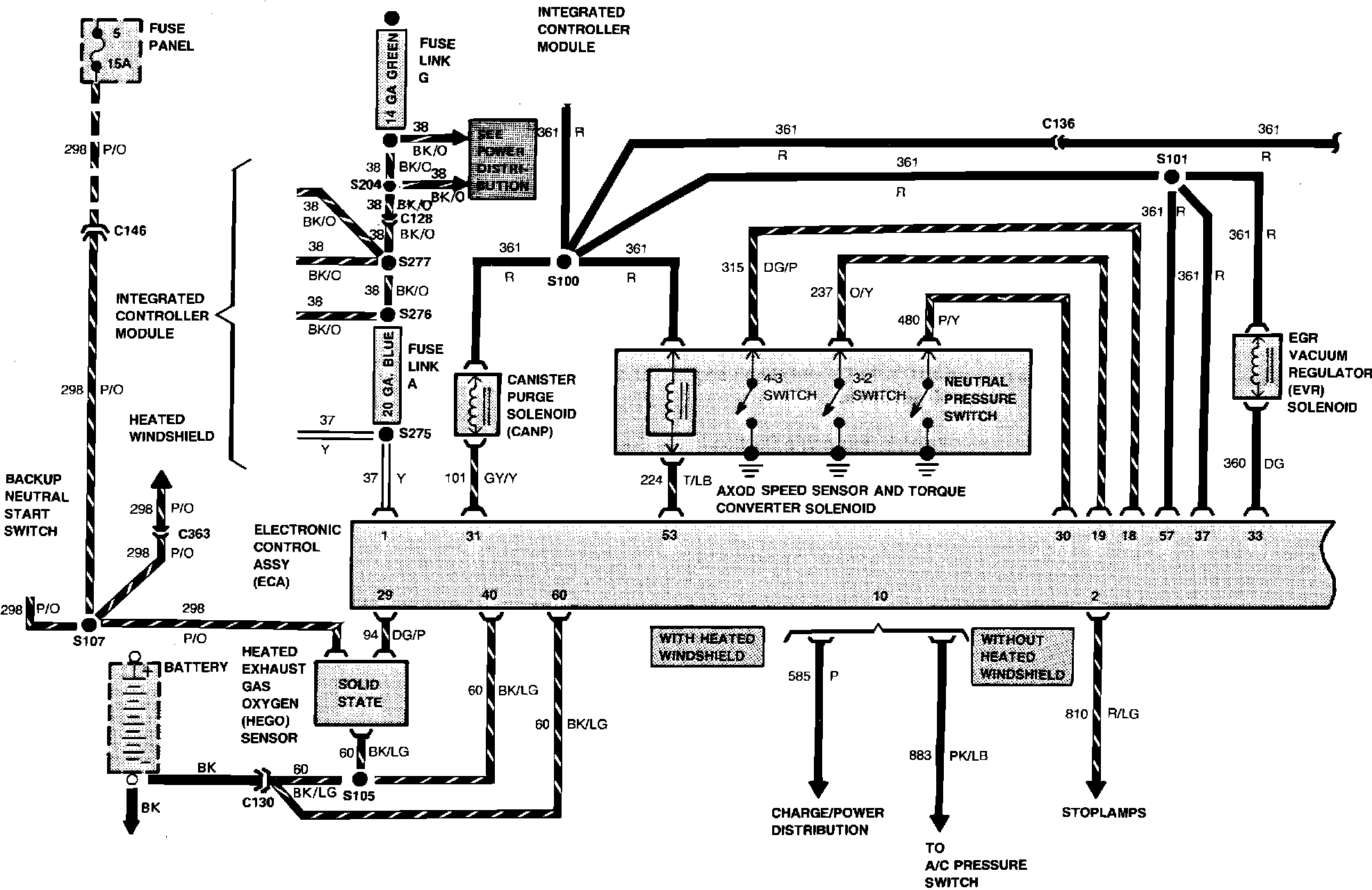

Wiring Diagram - Electronic Engine Control:

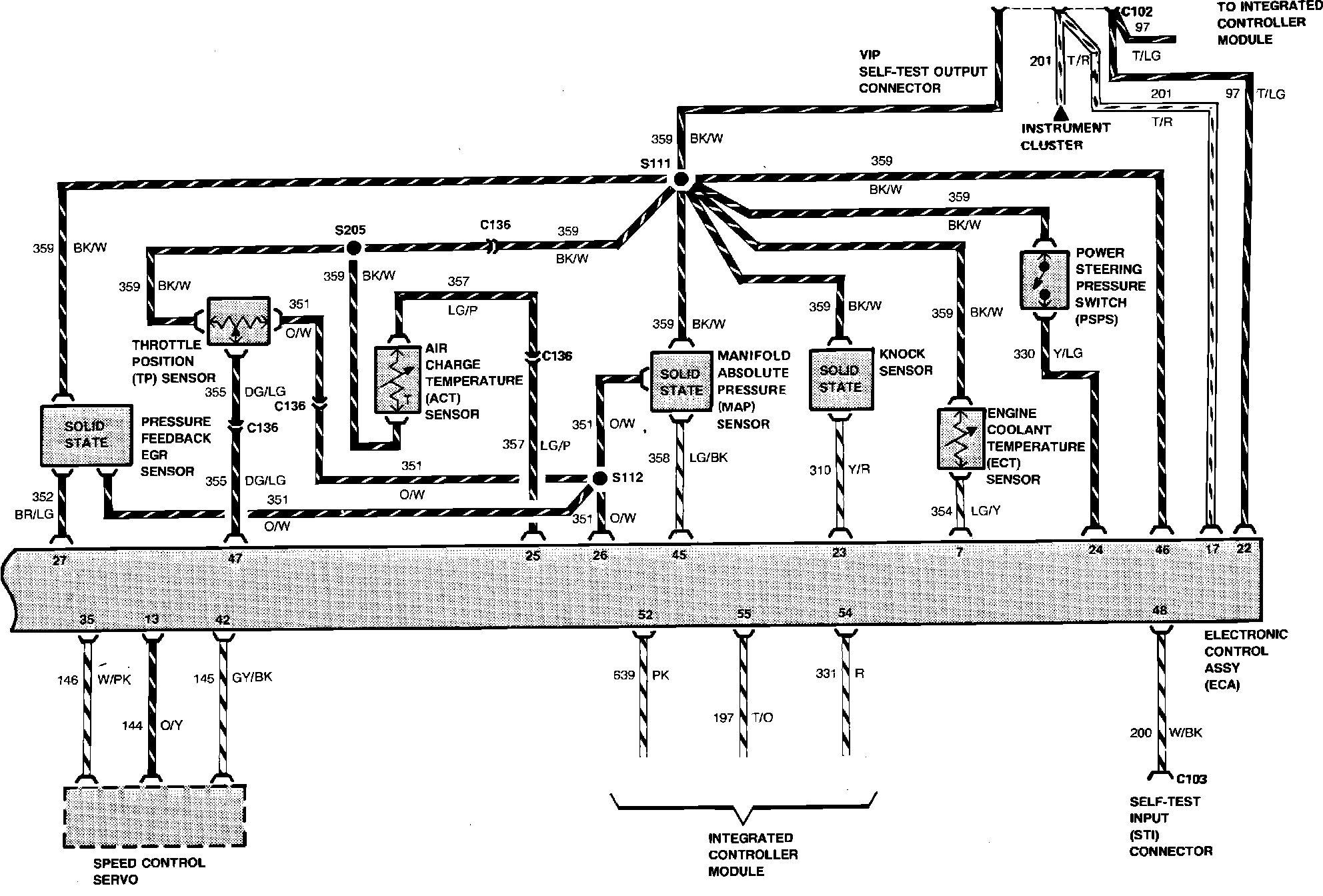

Wiring Diagram - Electronic Engine Control:
