Cooling Fan Motor Relays (Integrated Control Module)

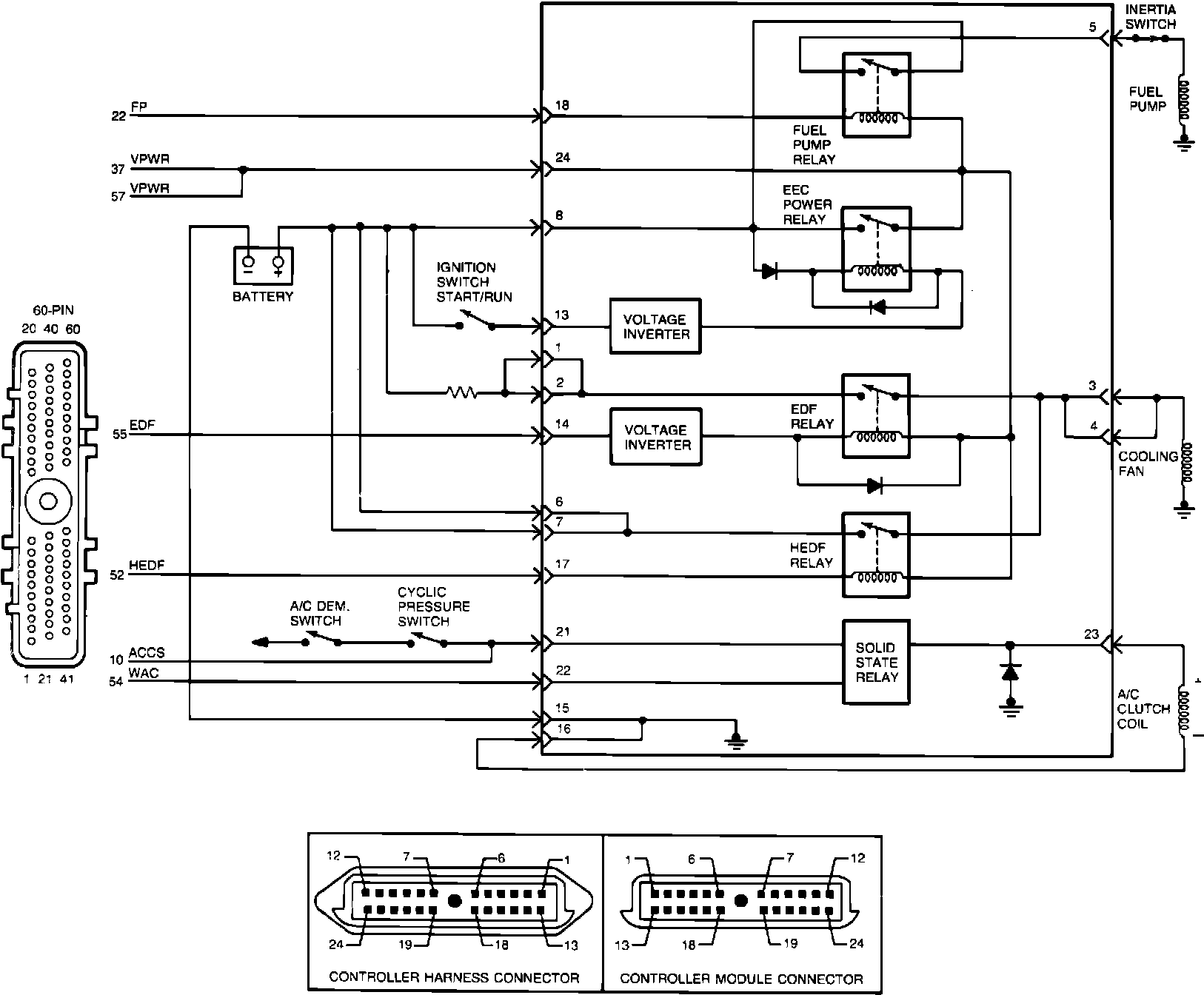

Wiring Schematic - Integrated Controller:

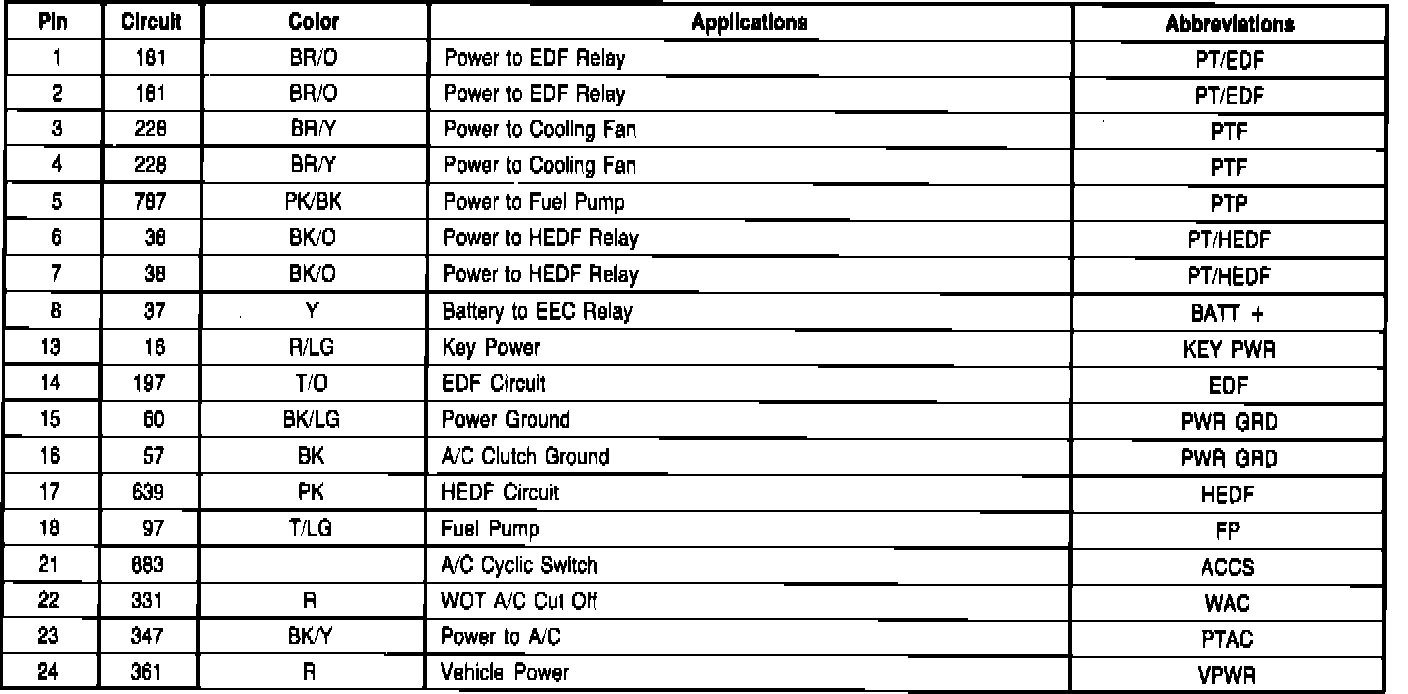

Pin Usage - Integrated Controller:
