E: All Electronic Radio Control Functional Test

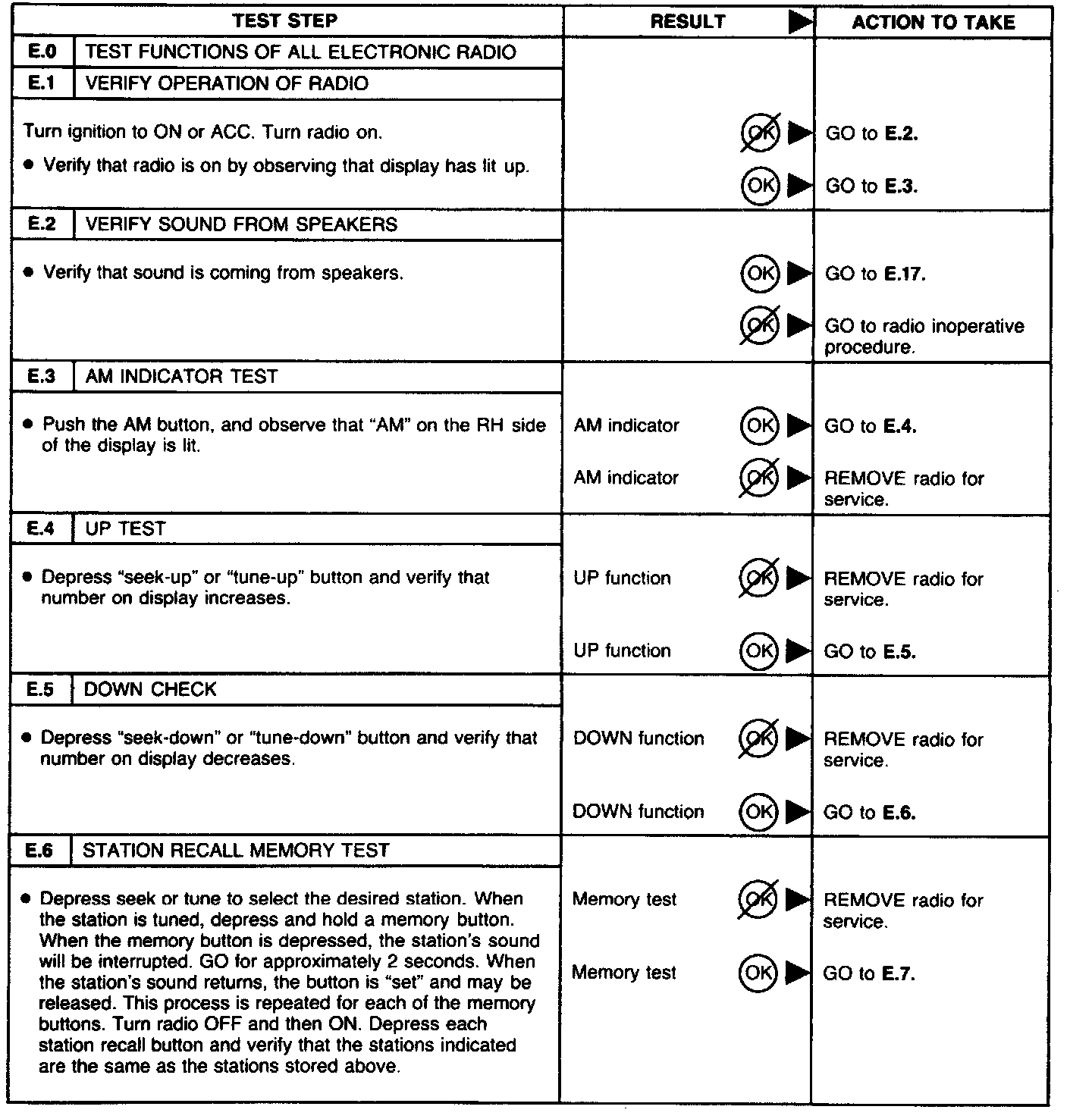

All Electronic Radio Control Functional Test - E1-E6:

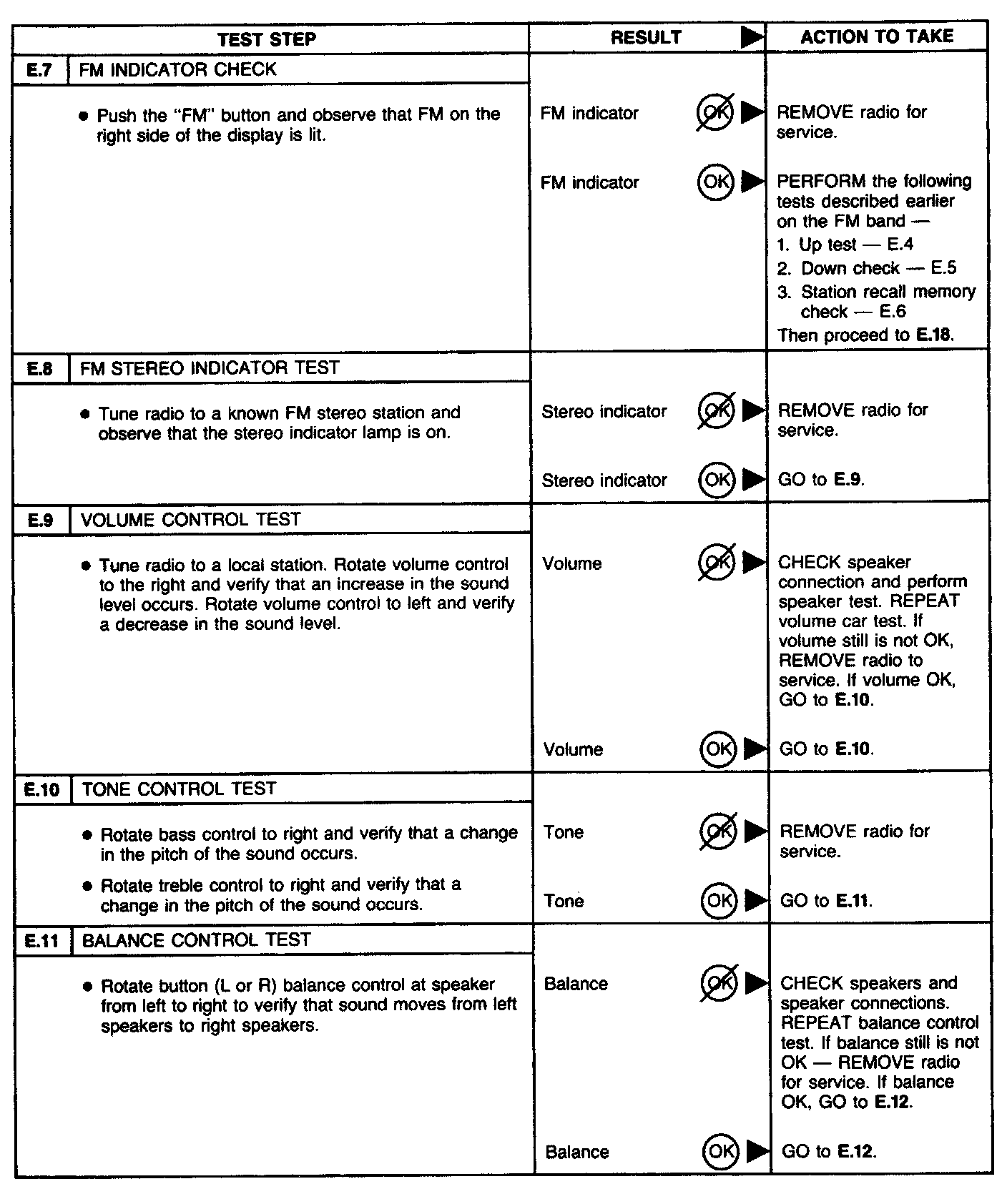

All Electronic Radio Control Functional Test - E7-E11:

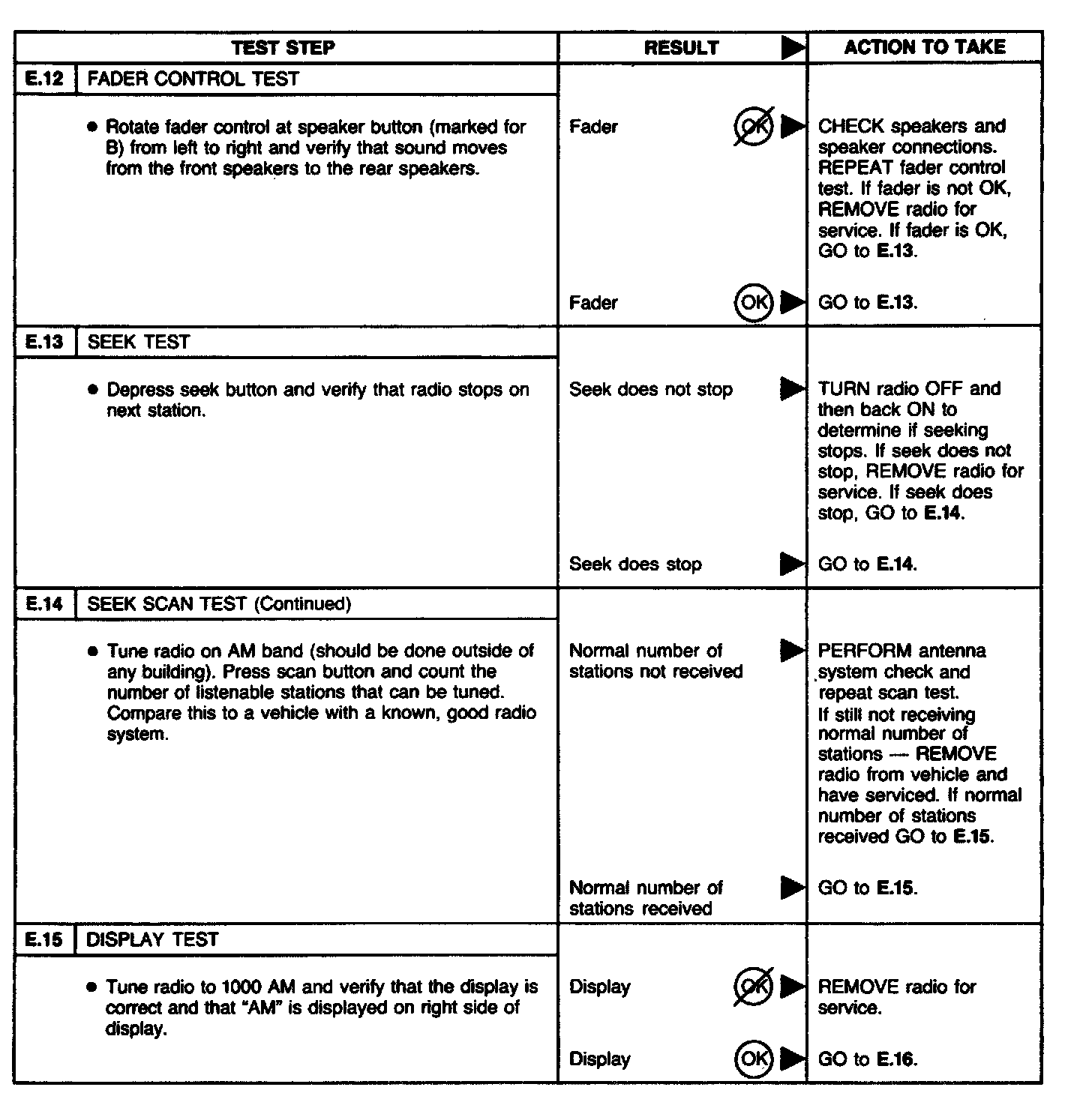

All Electronic Radio Control Functional Test - E12-E15:

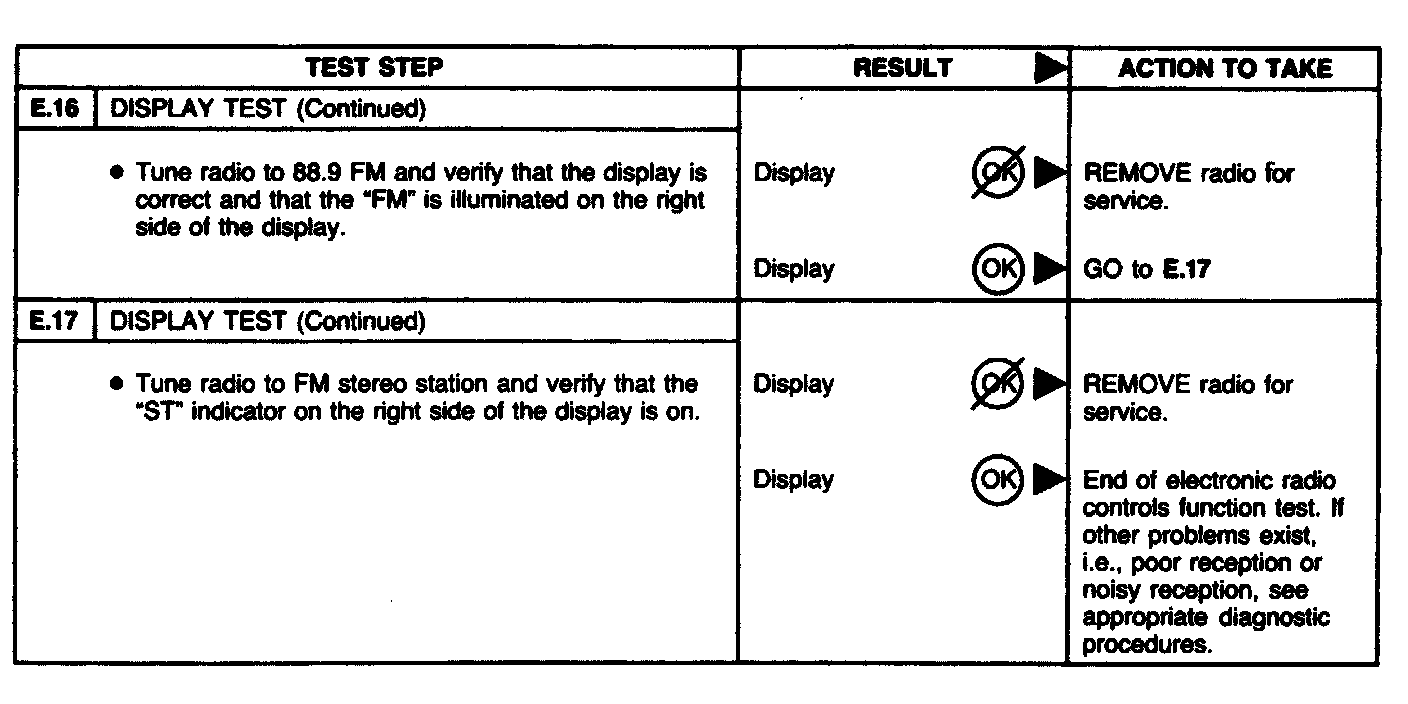

All Electronic Radio Control Functional Test - E16-E17:
