Figure. 1 W/Automatic Transmission (Typical)

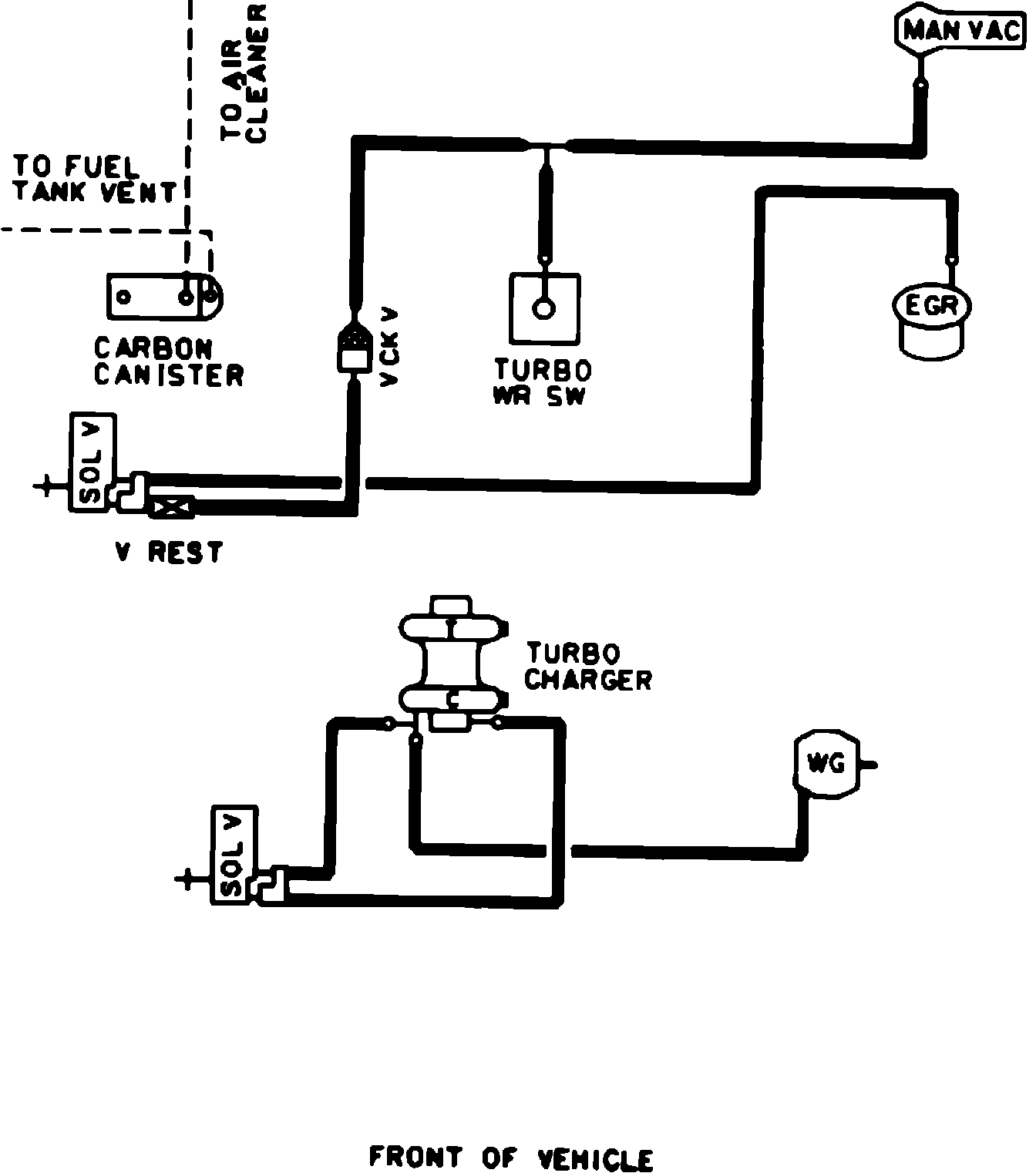

Fig. 1 Vacuum hose routing diagram. XR4Ti w/automatic transmission (typical):
