3.0C - Passenger Car Service Code Chart (KOEO)
3.0C - Passenger Car Service Code Chart (KOEO)

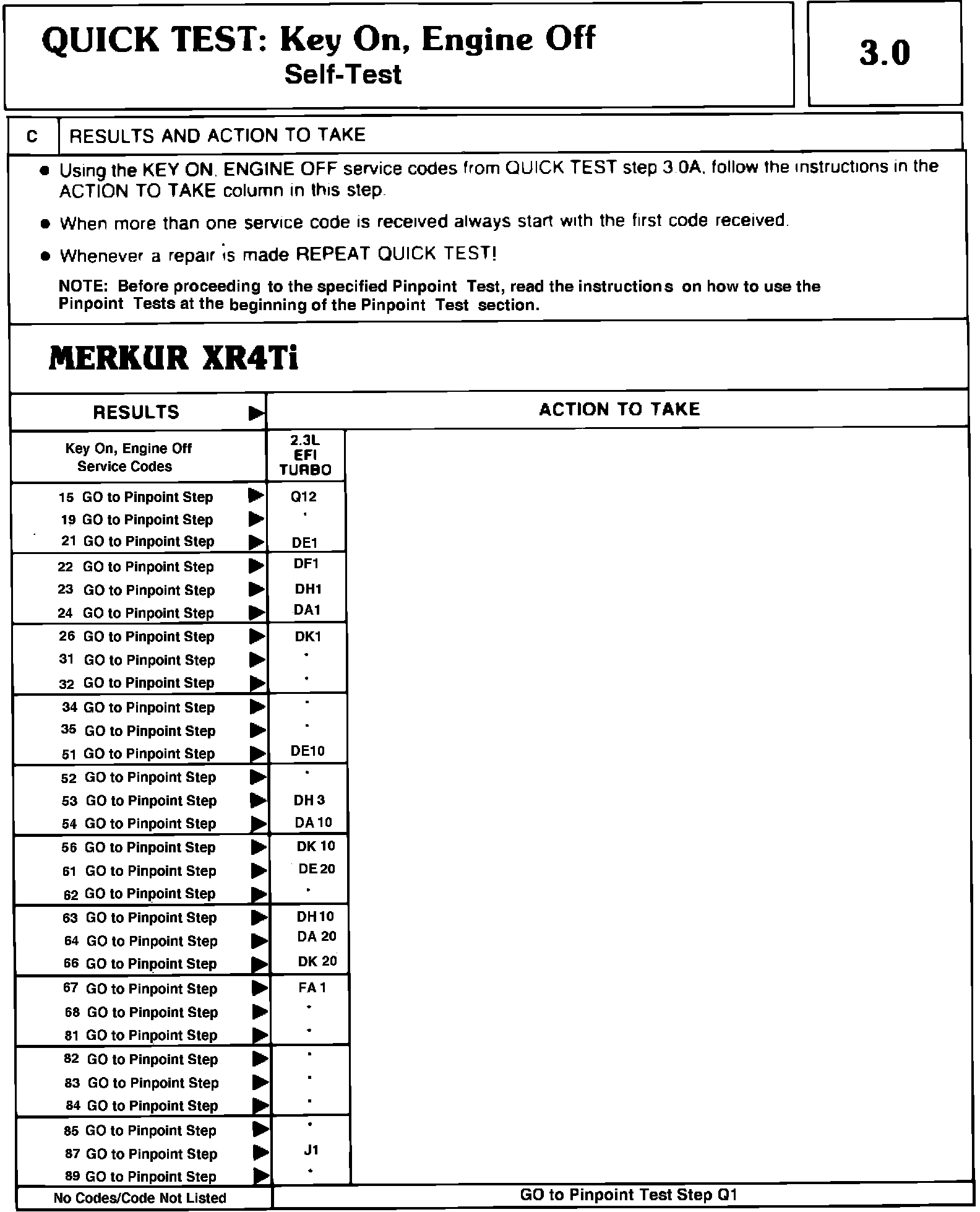

Fig. 30b Quick test. Key On, Engine Off Self-Test (Part 3 of 3):
