3.0A - Performing the Key On Engine Off Self-Test
3.0A - Performing the Key On Engine Off Self-Test

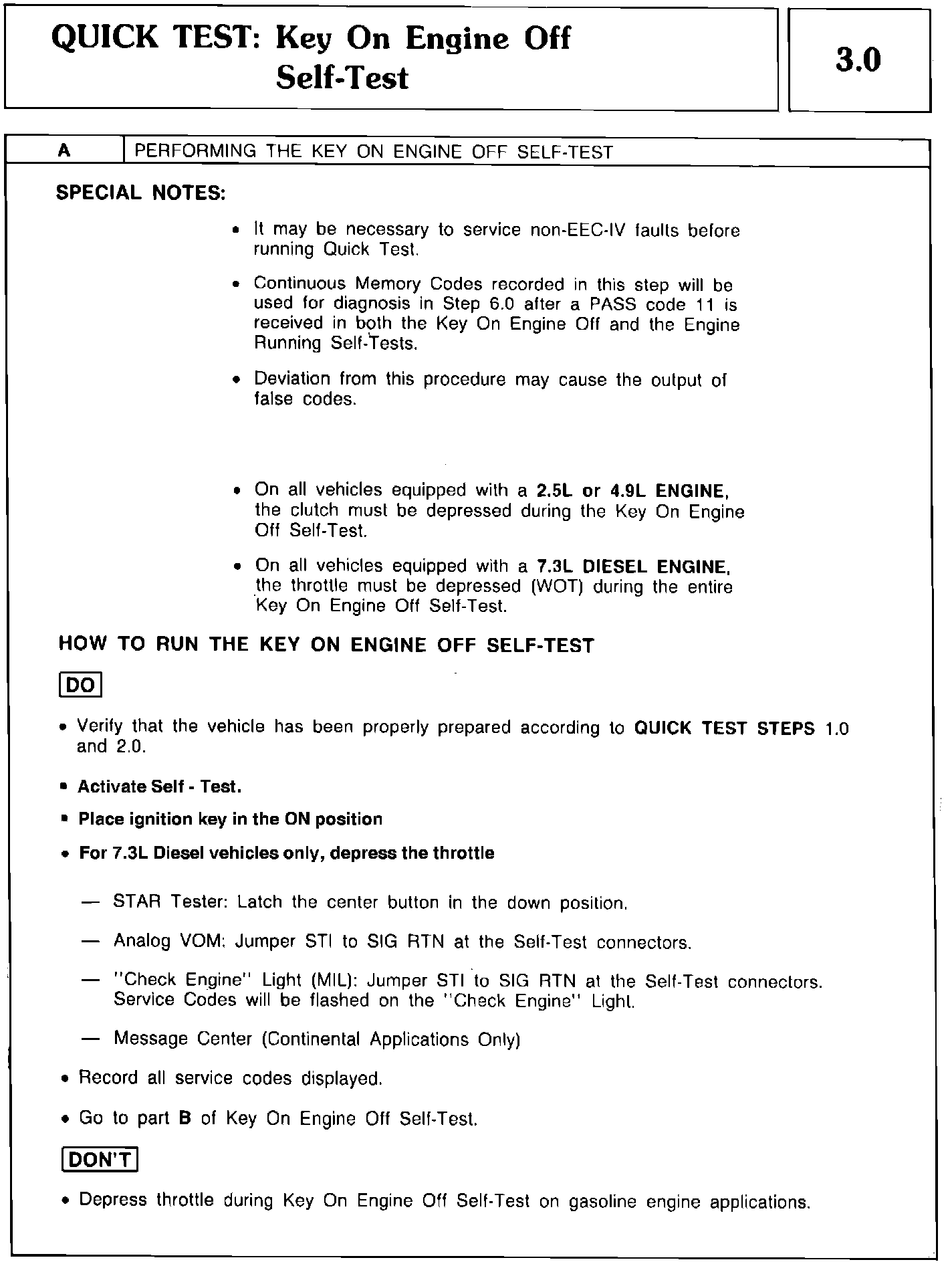

Fig. 30a Quick test. Key On, Engine Off Self-Test (Part 1 of 3):
*** UPDATED BY TSB #89-18A-10
