Separator Pulse

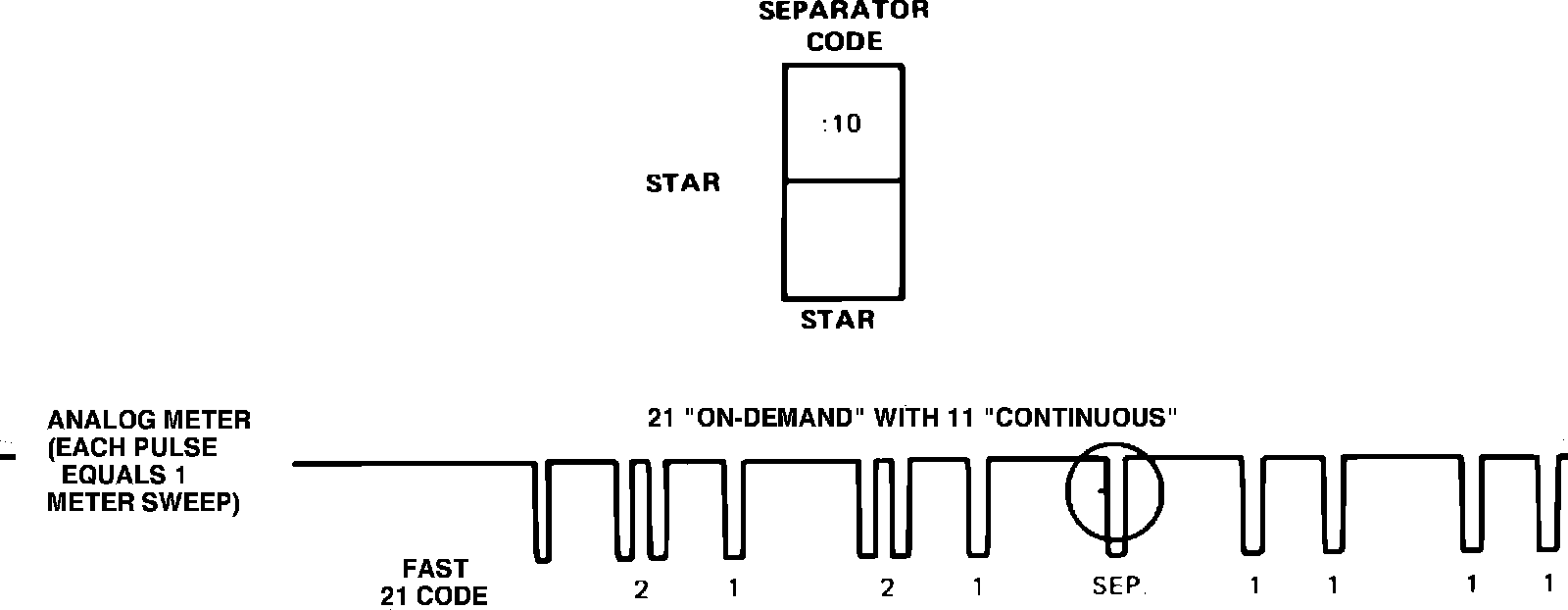

Fig. 19 Self-test code output format. Separate pulse:

A single 1/2 second separator pulse is issued 6-9 seconds after the last functional test code (key-ON, engine OFF only). Then, 6-9 seconds after the single half second separator pulse, the continuous codes will be issued, Fig. 19.
