Home >> Mercury >> 1987 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls

Engine Controls

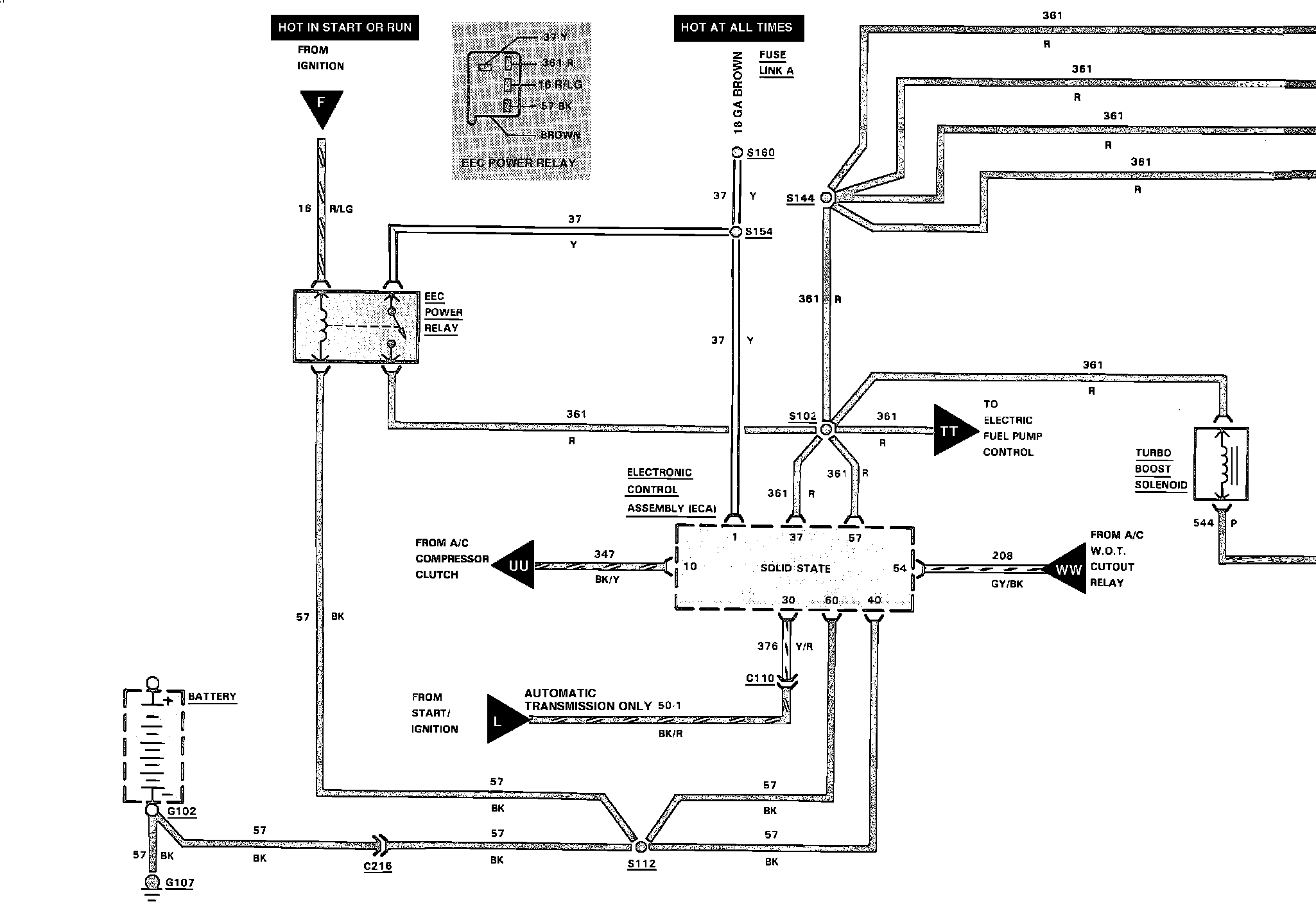

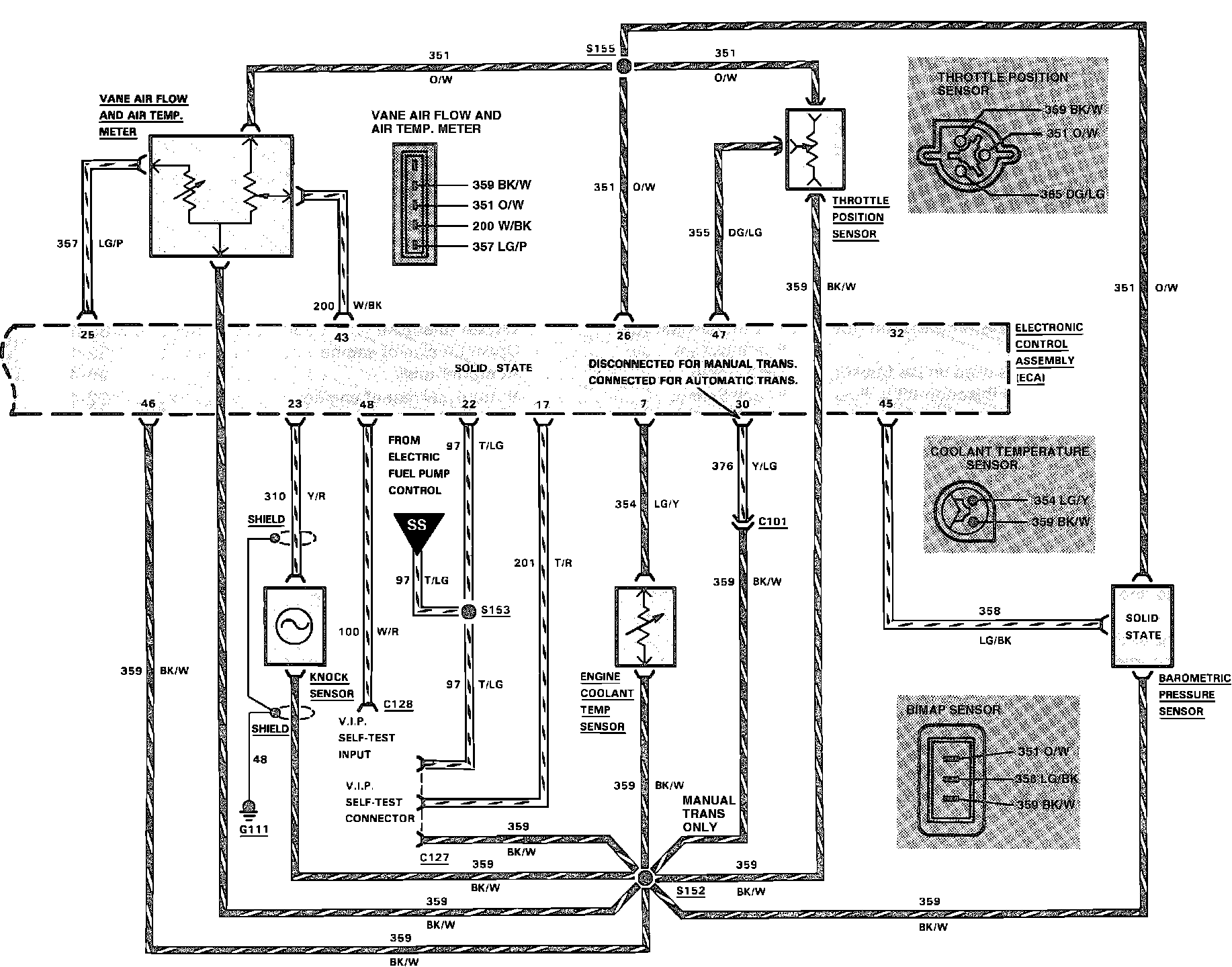

Electronic Engine Control (EEC-IV):






�%�2Electronic Engine Control (EEC-IV):
