Home >> Mercury >> 1987 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Marker Lamp

Marker Lamp

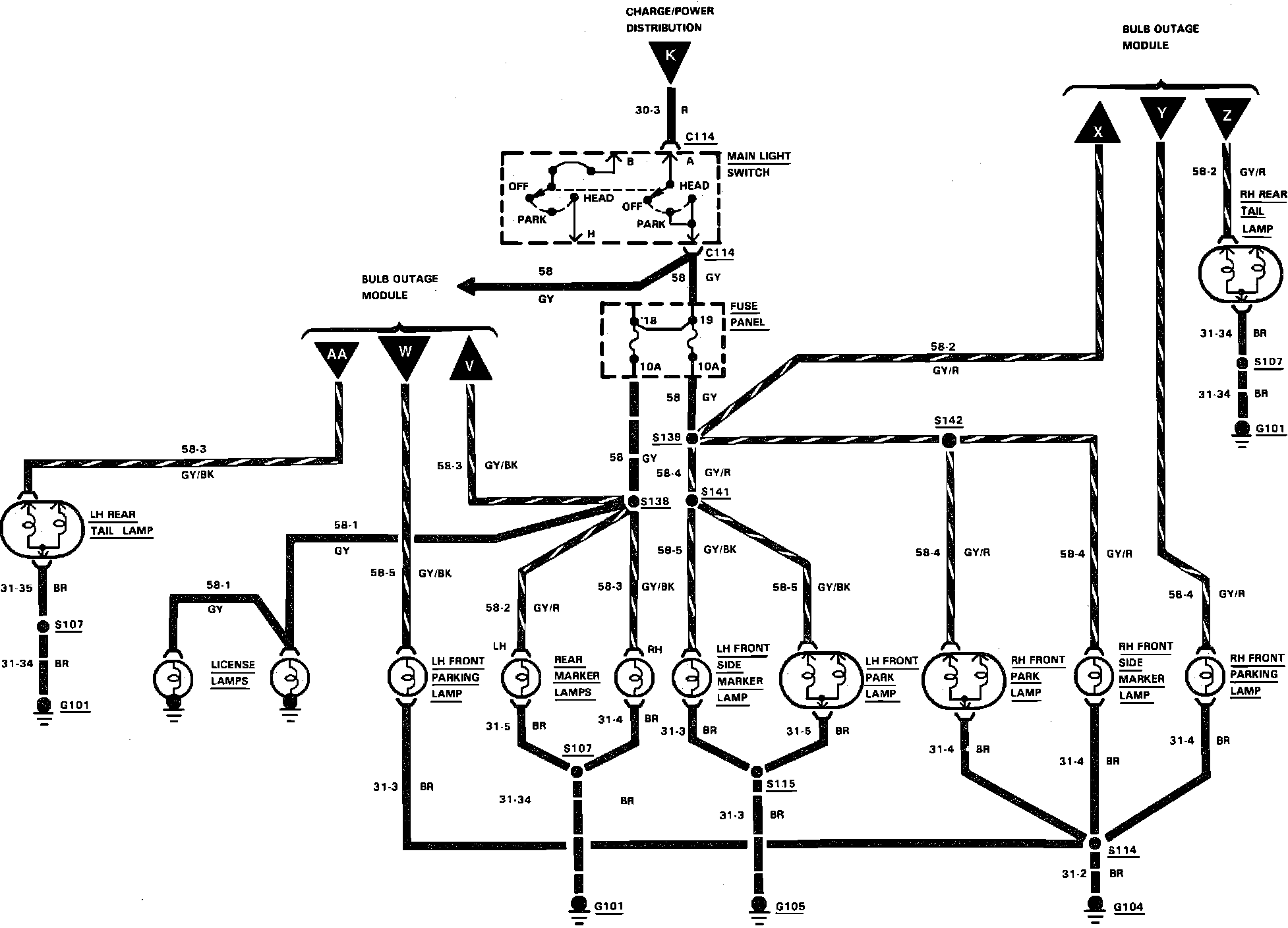

Exterior Lamp (License, Marker & Parking Lamps):
