Electrical Diagrams

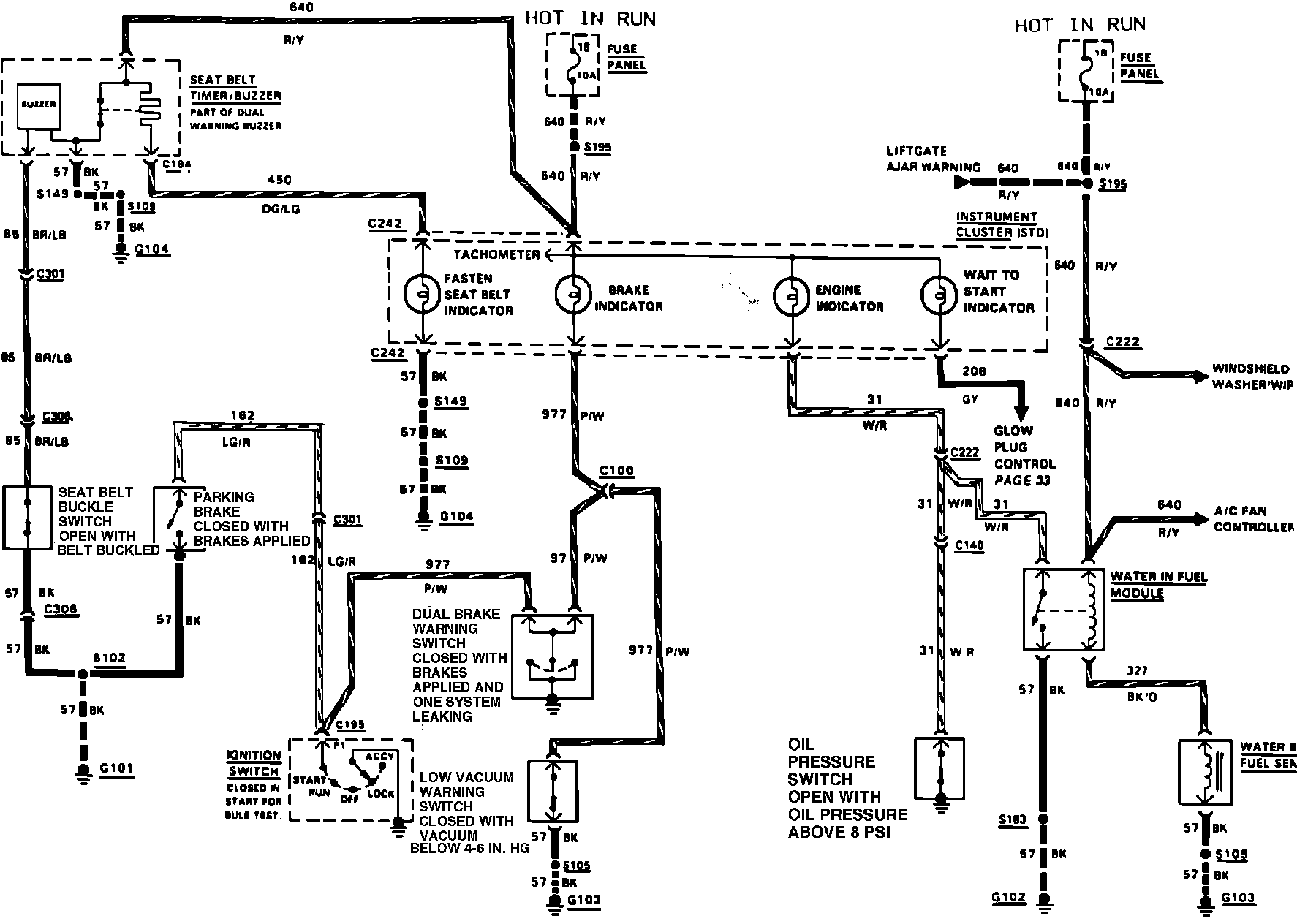

Fig. 11 Brake, Coolant, Fuel, Vacuum, Oil & Seatbelt Warning Indicator Wiring Circuit. Diesel Engine:
