Home >> Mercury >> 1987 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Backup Lamp >> Escort GT & Lynx RS

Escort GT & Lynx RS

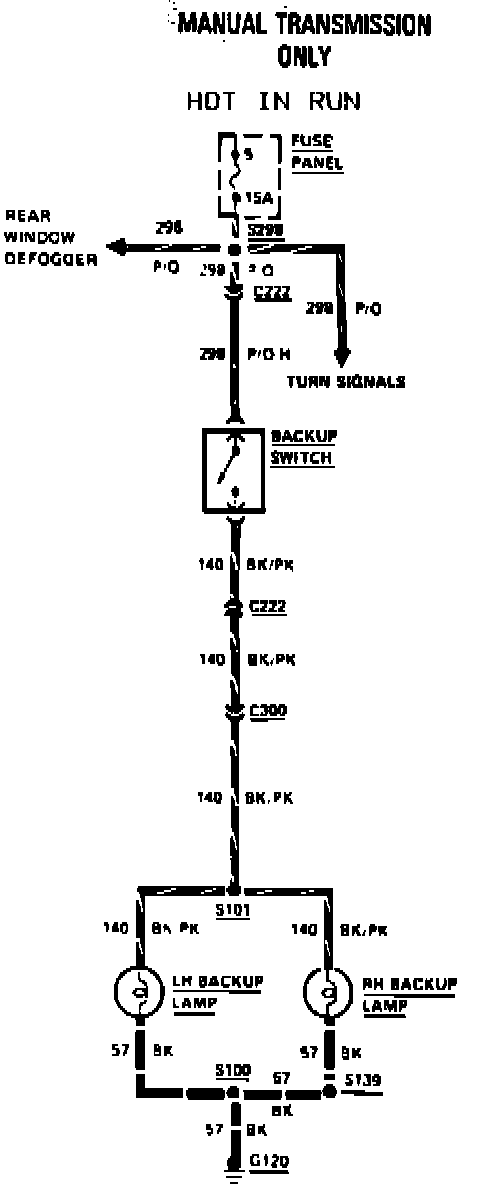

Fig. 10 Back-Up Lamps Wiring Circuit Escort GT & Lynx RS:
