Coolant & Fuel Gauge Wiring Circuit

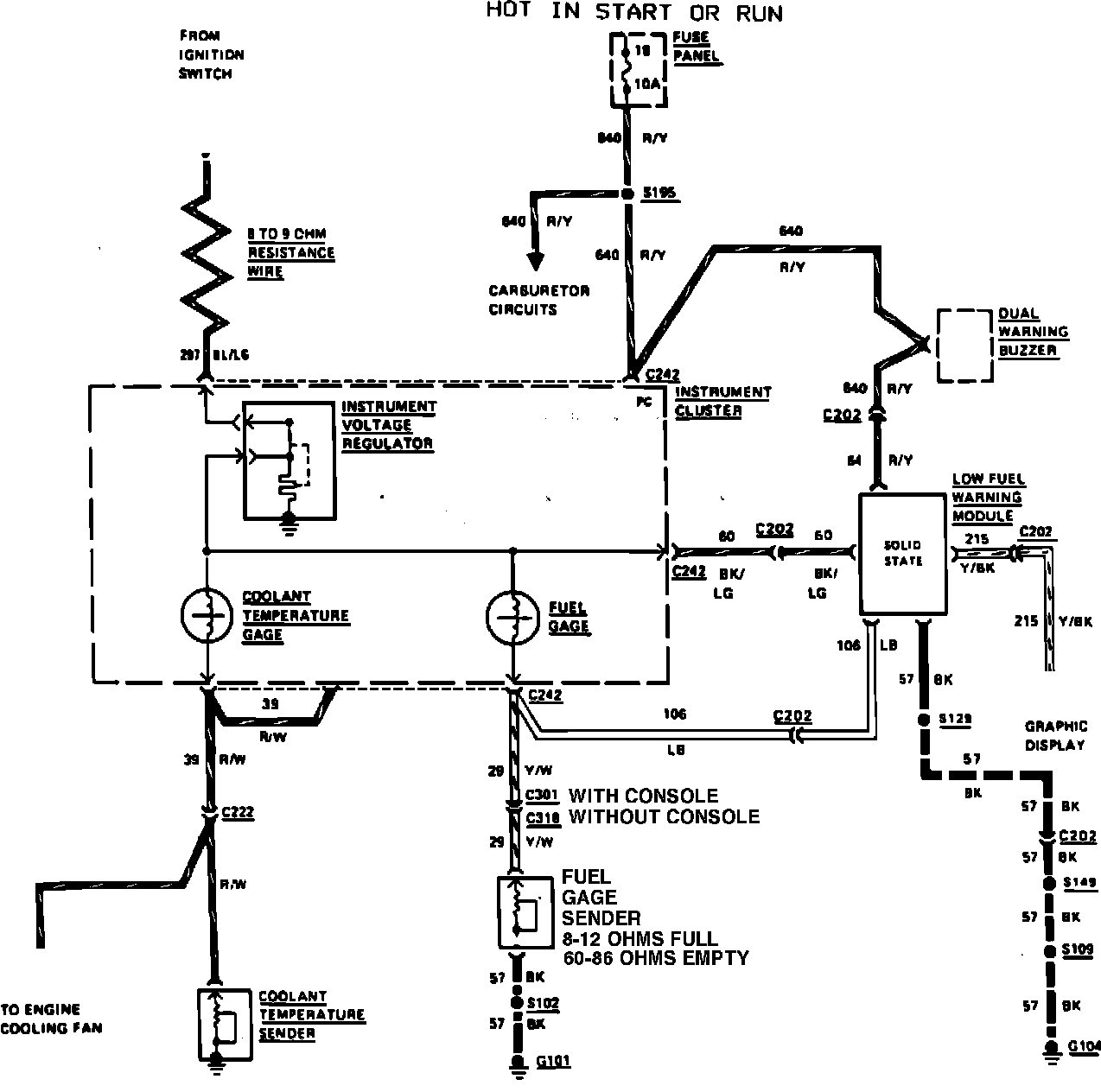

Fig. 18 Coolant & Fuel gauge Wiring Circuit Exc Escort GT & Lynx RS:
