System Diagram

Fig. 3 Air Conditioning, Heater & Cooling Fan Wiring Circuit. Diesel Engine:

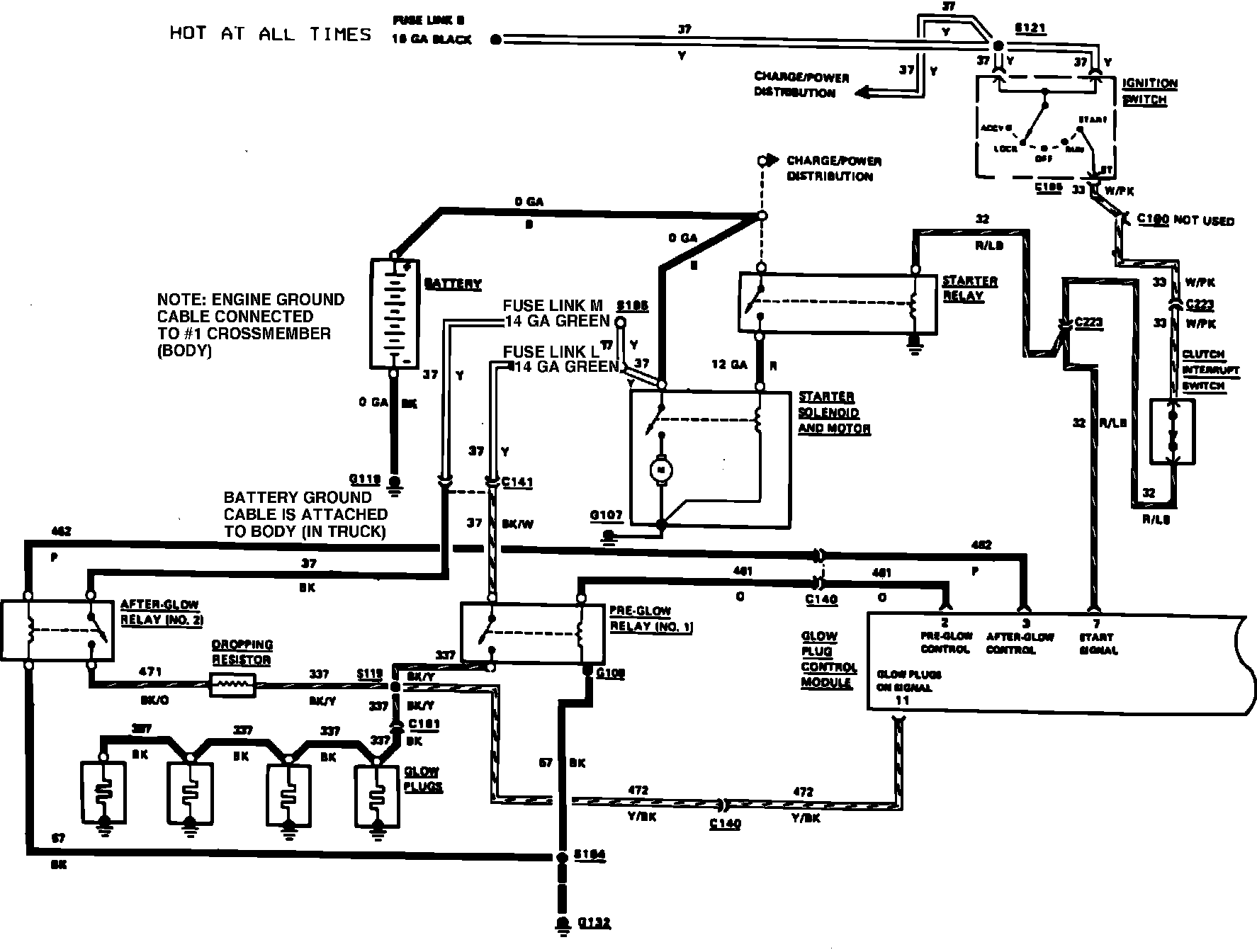

Fig. 30 Glow Plug Control, Run & Starting System Wiring circuit (Part 1 of 2). Diesel Engine:

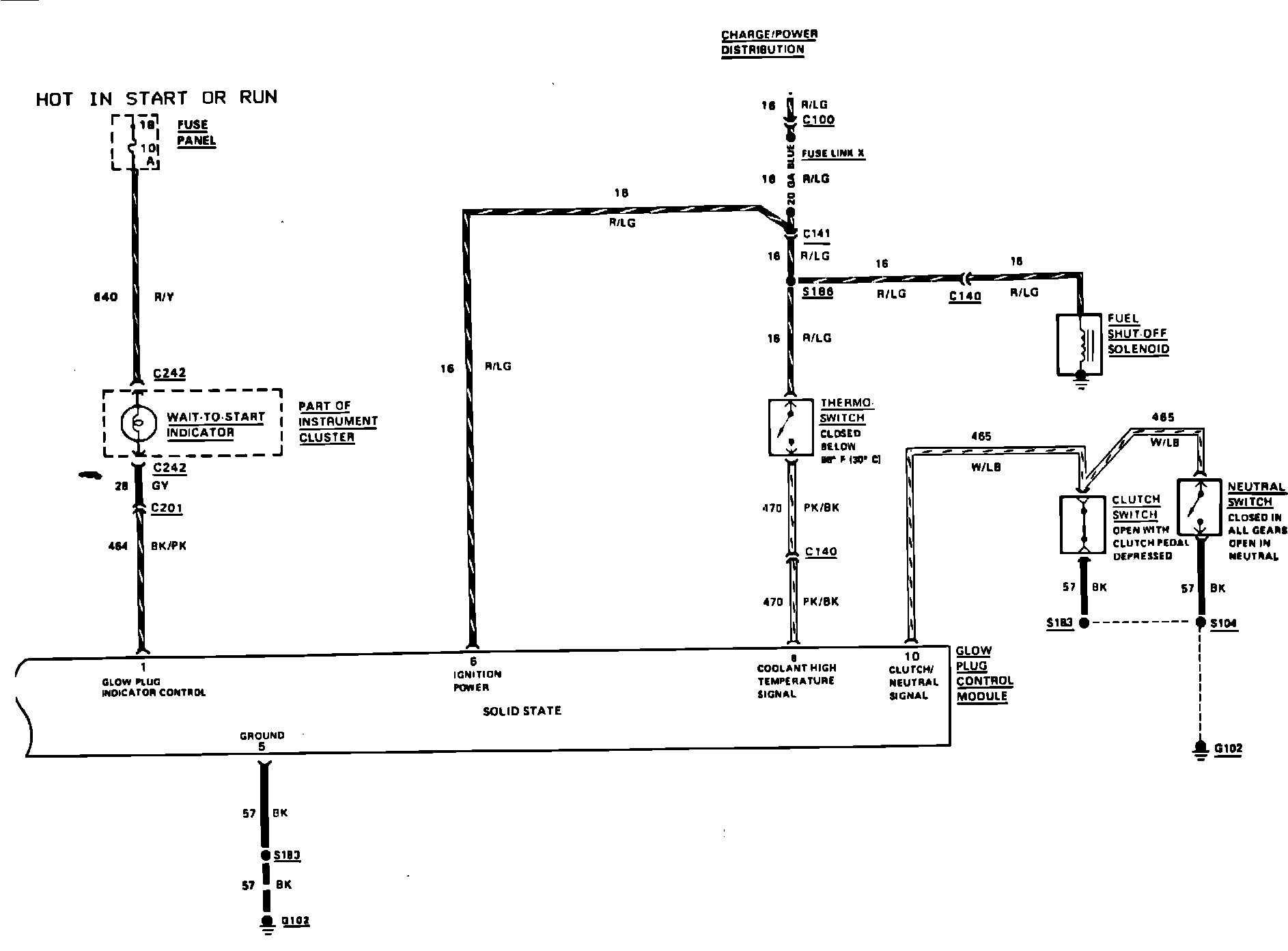

Fig. 30 Glow Plug Control, run & Starting System Wiring Circuit (Part 2 of 2). Diesel Engine:
