Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
With A/C
>>
With Manual Transmission
With Manual Transmission
Fig. 2 Air Conditioning & Heater Control Wiring Circuit:

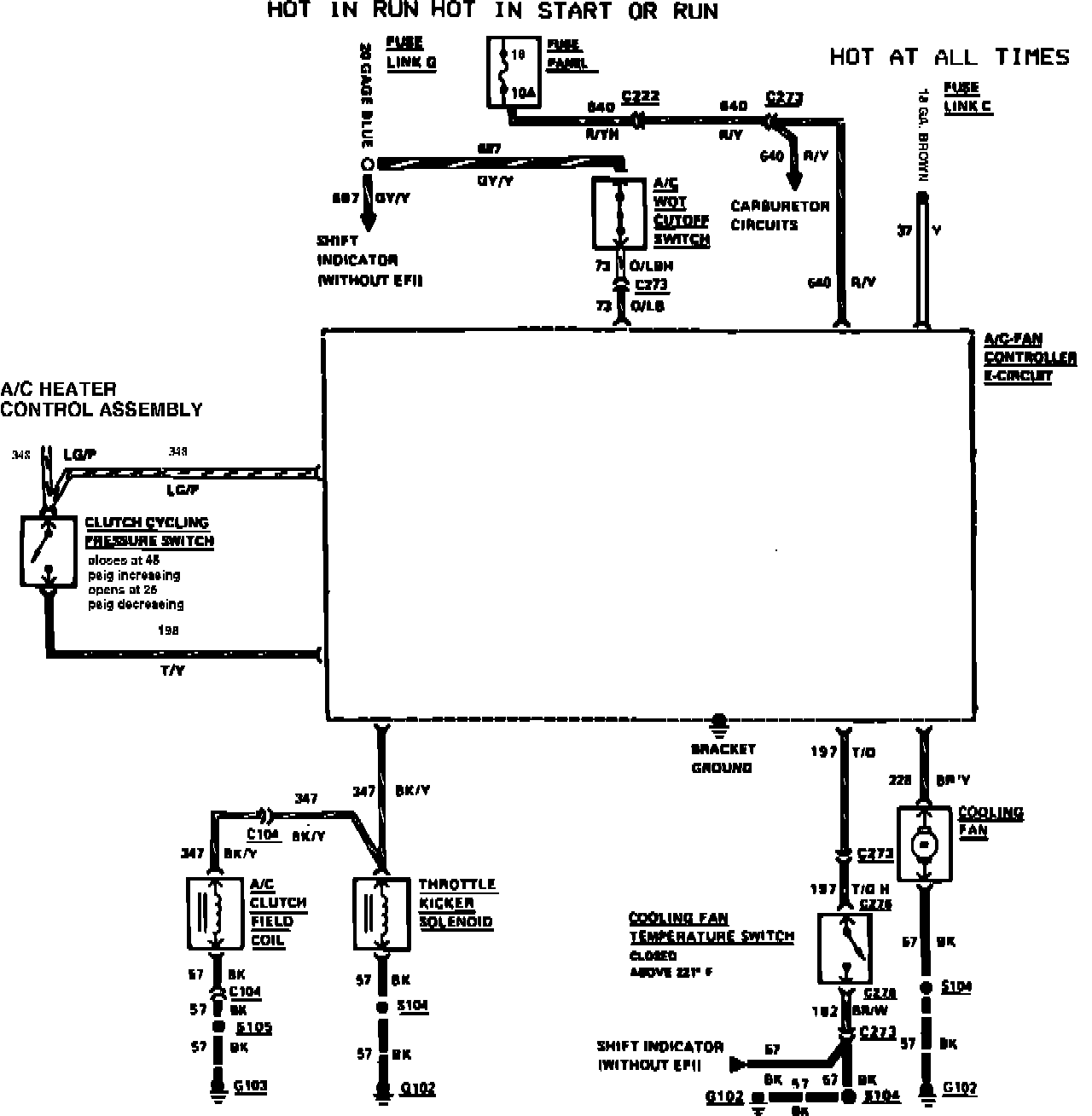

Air Conditioning, Heater & Cooling Fan Wiring Circuit. H.O. Gasoline Engine W/Manual Transaxle:
