Home >> Mercury >> 1987 >> Lynx L4-116 1.9L VIN 9 TBI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G102 & 103 Manual Transaxle, Gasoline Engine

G102 & 103 Manual Transaxle, Gasoline Engine

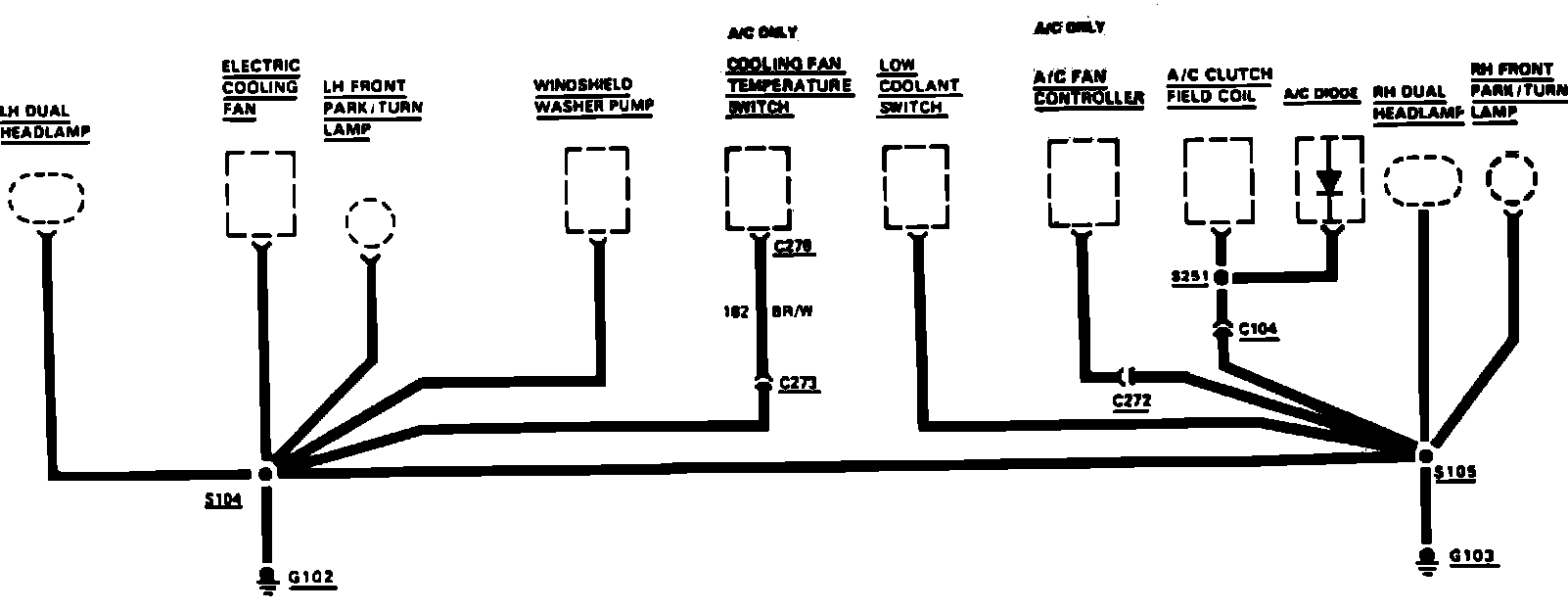

Fig. 36 Ground Distribution. G102 & 103 (Manual Transaxle, Gasoline Engine:
