With Manual Transmission

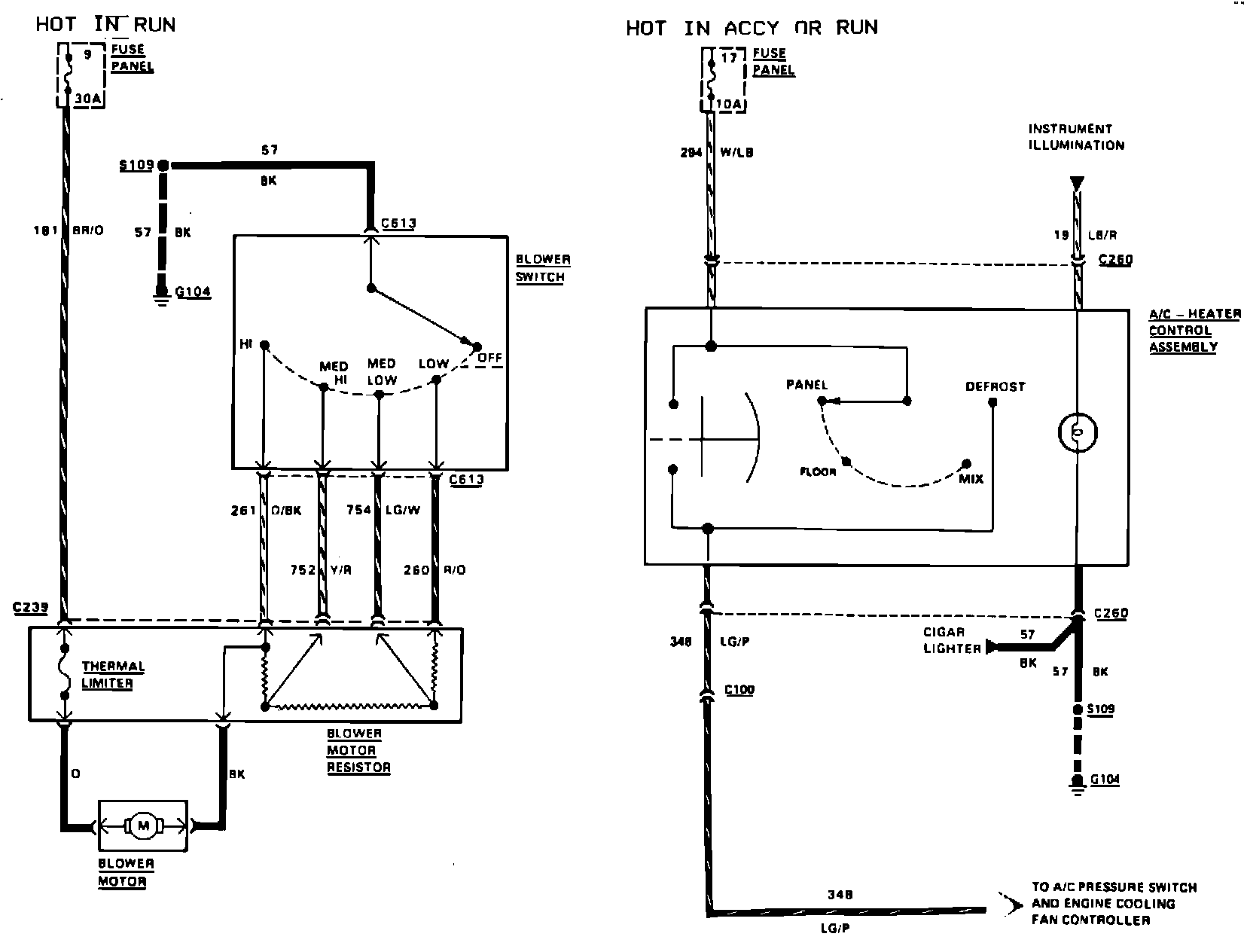

Fig. 2 Air Conditioning & Heater Control Wiring Circuit:

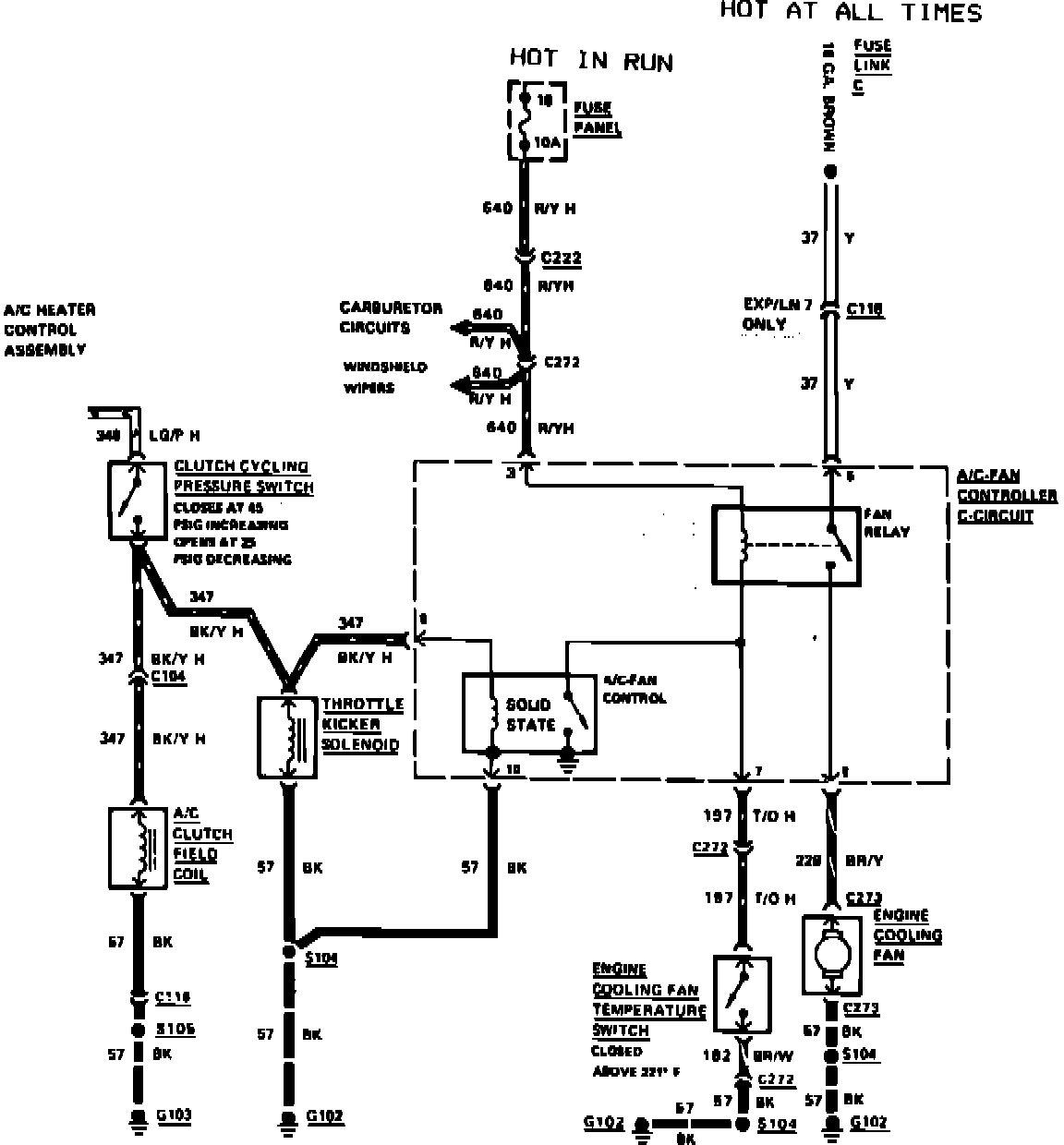

Fig. 5 Air Conditioning, Heater & cooling Fan Wiring Circuit. Gasoline Engine W/Manual Transaxle:
