Air Line: Service and Repair

NYLON AIR LINE SERVICE

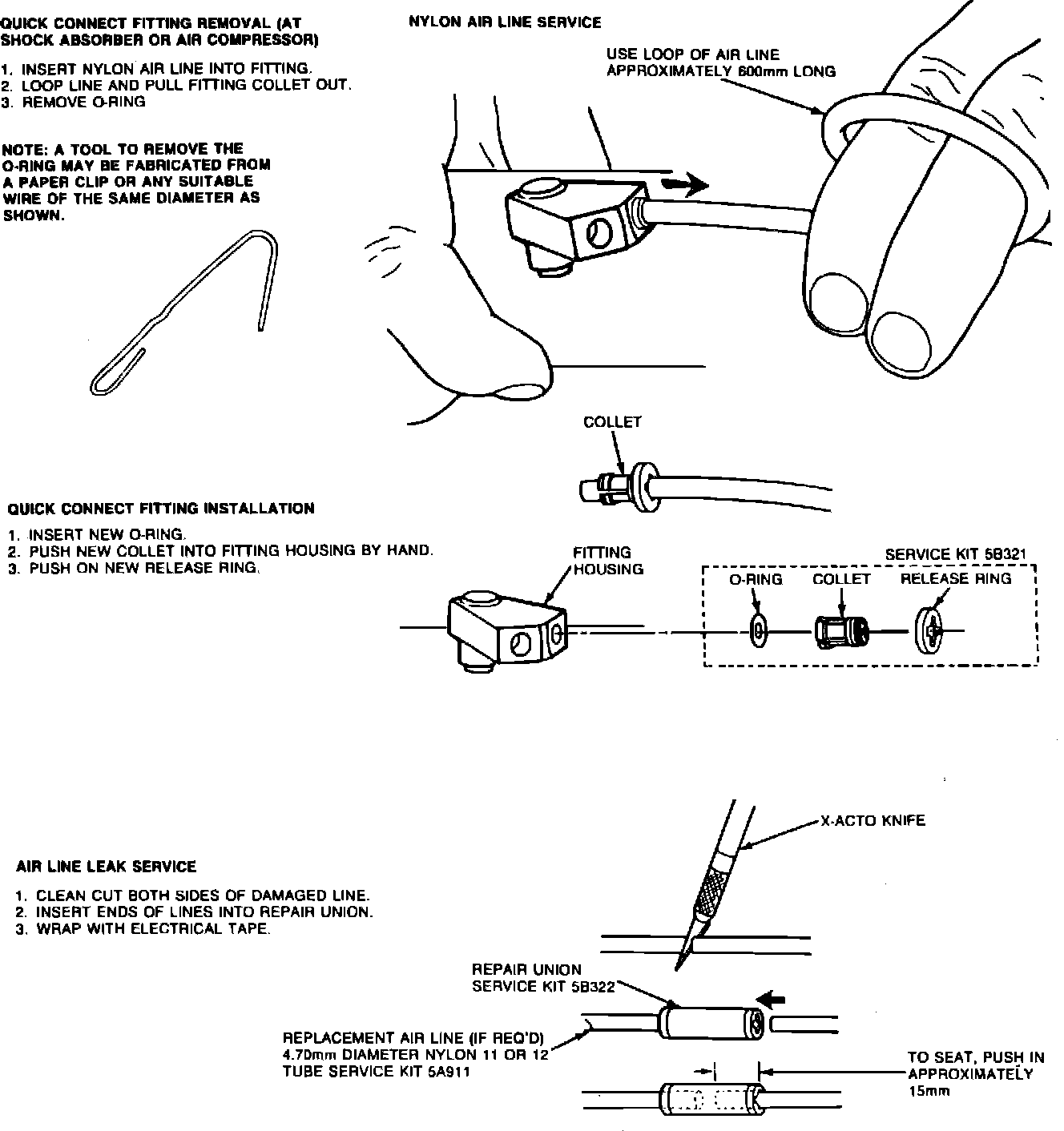

Fig. 25 Nylon air line service. 1985---87:

If a leak is detected in an air line, it can be serviced by carefully cutting the line with a sharp knife to ensure a good, clean straight cut and installing a service fitting as shown in, Fig. 25.
