Home >> Mercury >> 1987 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Junction Block Wiring Circuit >> Battery Circuit

Battery Circuit

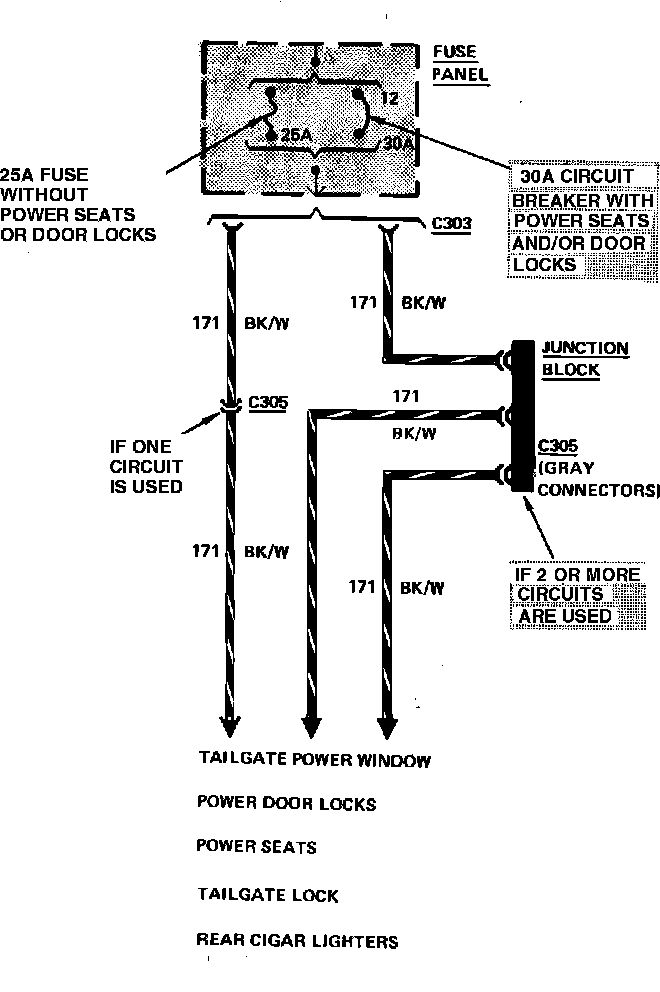

Fig. 72 Junction Block Wiring Circuit. Battery Circuit:
