Rear Door Window Switch

Removal and Installation

There are 2 styles of Rear Door Window Switches, a door panel mounted and an armrest mounted. The door panel mounted is shown below. For armrest mounted, please refer to RH Front Door Window Switch procedure. RH Front Door Window Switch

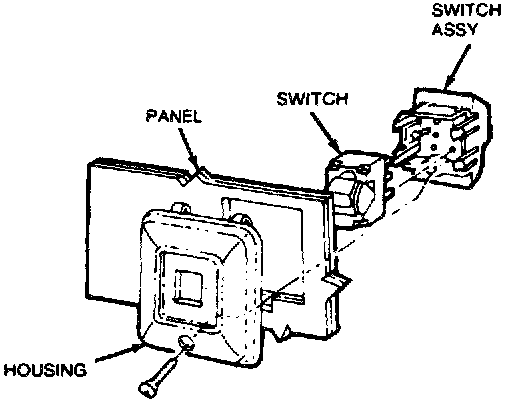

Single Switch - Door Panel Mounted:

1. Remove switch housing retaining screw from bottom side of switch and housing assembly.
Pivot lower edge of housing out and up to remove housing assembly.
2. To remove switch, carefully pry apart switch retaining legs on connector and pry switch from connector with a small screwdriver.
3. To install, position switch to connector and press firmly into place.
4. Insert two housing spring legs into connector.
Pivot lower edge of housing down and install housing retaining screw.
