4 Door Models With Luxury Interior
4 Door Models With Luxury Interior

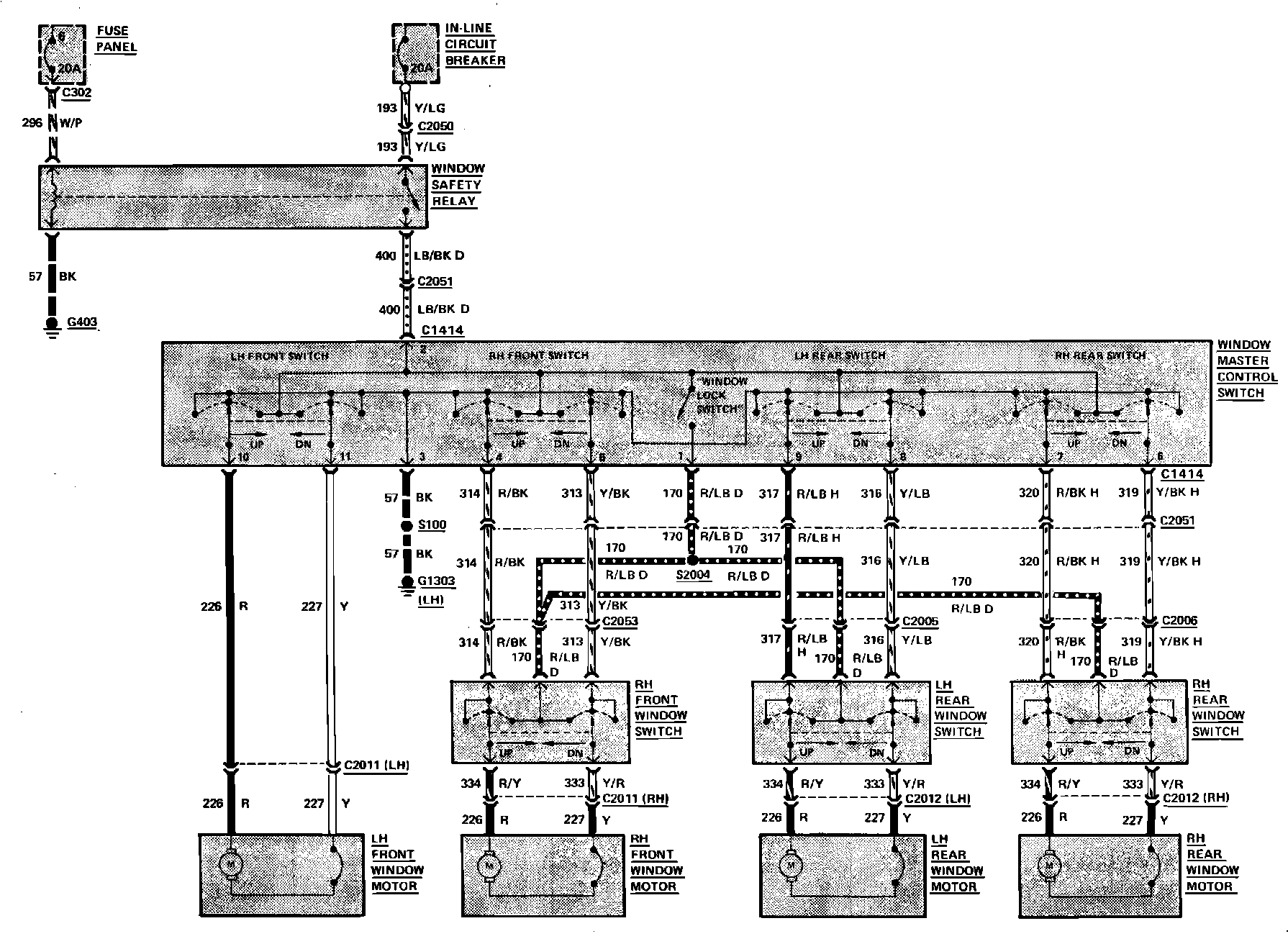

Fig. 52 Power Window Wiring Circuit. 4 Door Models W/Luxury Interior:
