Home >> Mercury >> 1987 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Switch >> Diagrams >> Electrical Diagrams >> Tailgate Lock >> Without Power Door Locks

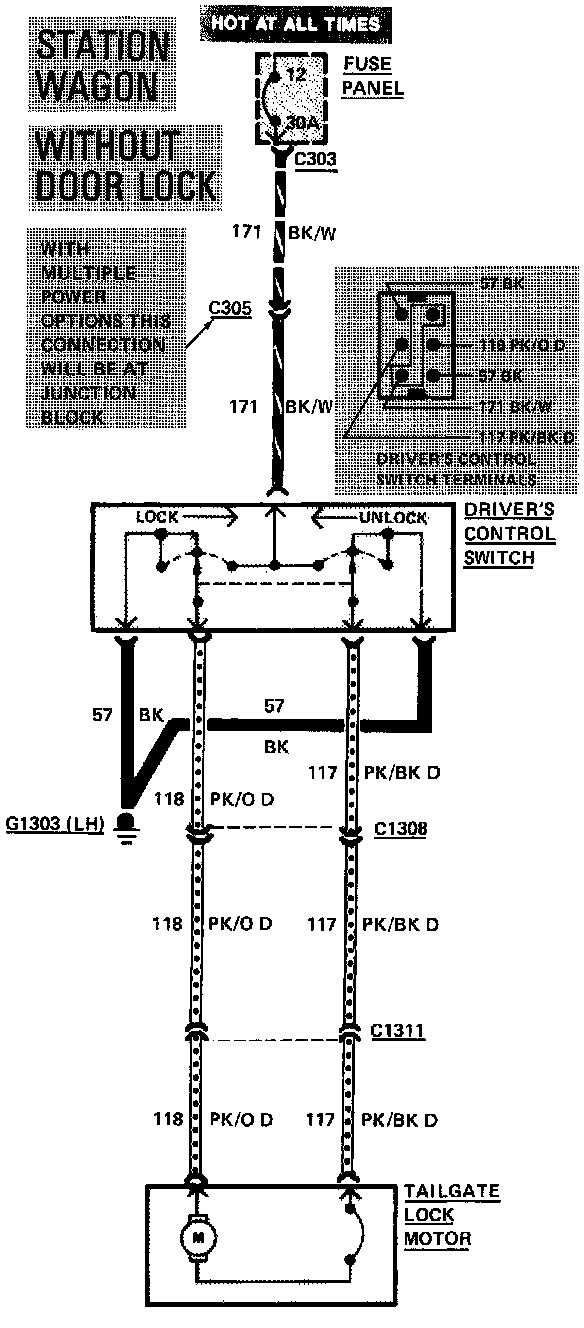

Without Power Door Locks
