Home >> Mercury >> 1987 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Switch >> Less Autolamp

Less Autolamp

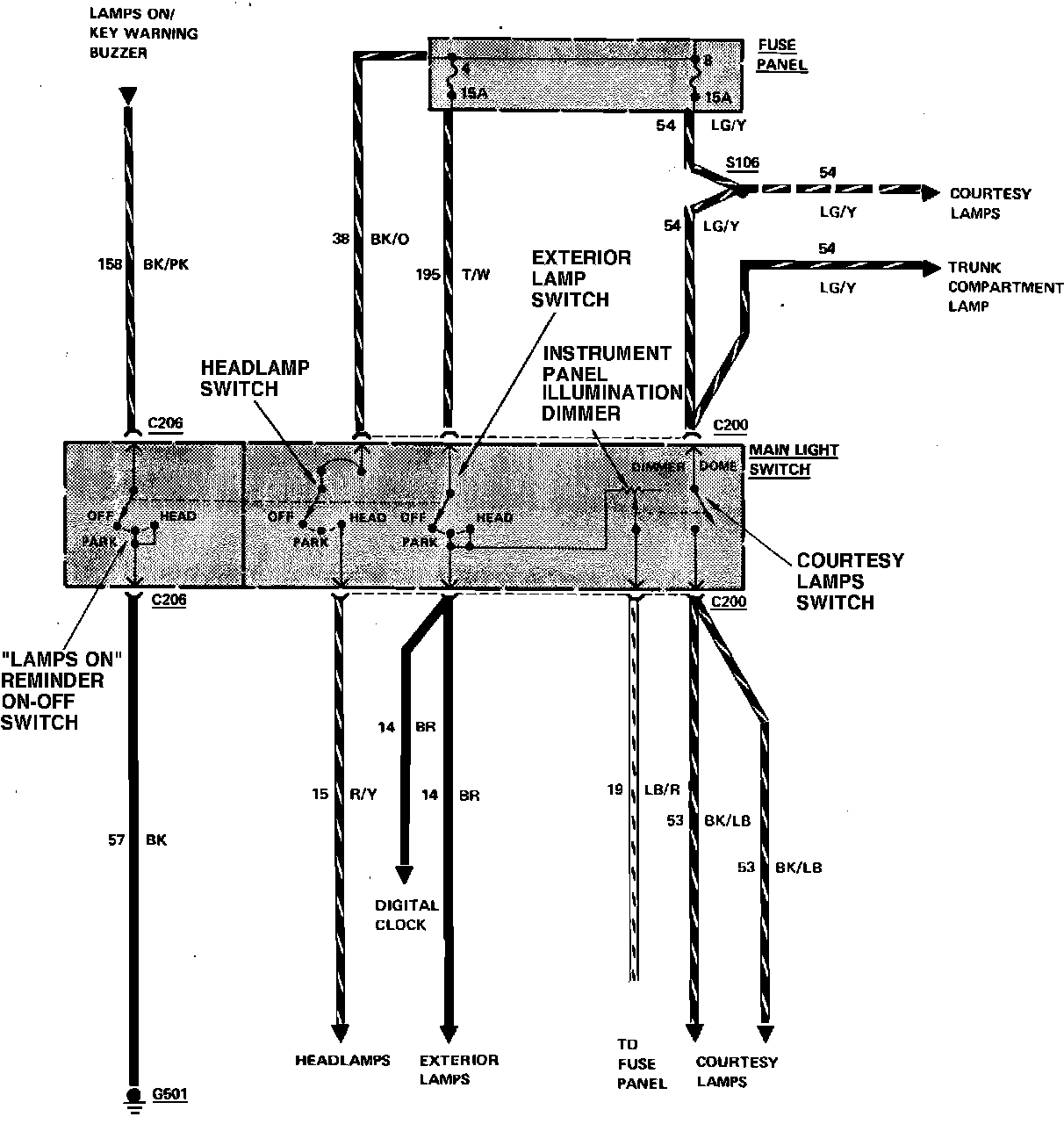

Fig. 39 Headlamp Switch Power Distribution Wiring Circuit. Less Automatic Lamps:
