Home >> Mercury >> 1987 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter >> Front

Front

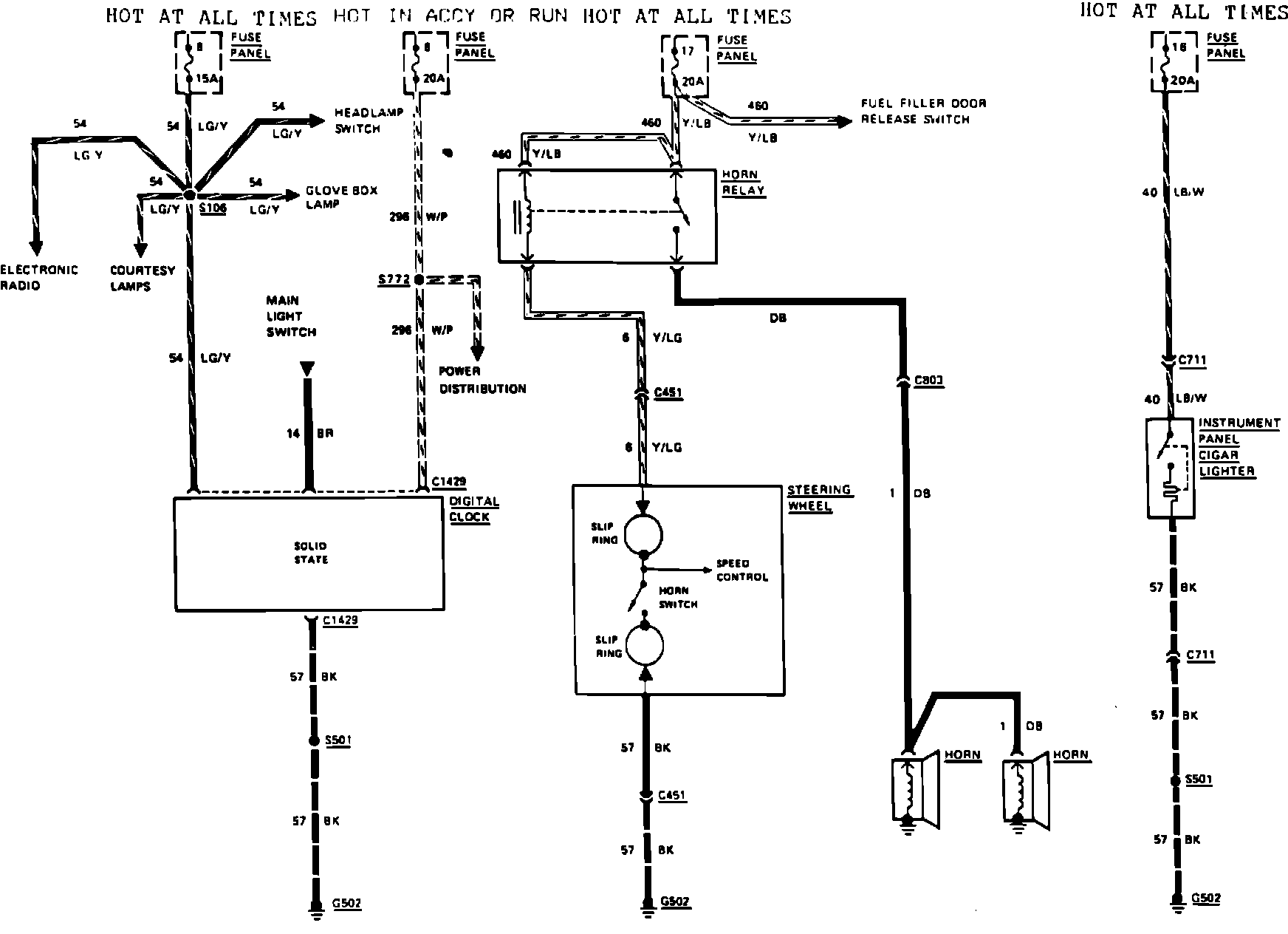

Fig. 11 Cigar Lighter, Digital Clock & Horn Wiring Circuit:
